Multi-function One Shot Chocolate Making Machines

Classical Ball Egg chocolate production line(MF-BM)

it is also caramel filling chocolate production line or Lindor chocolate production line which can be expanded freely to meet users’ chocolate innovation needs in 20 years or more.
Classical Ball Egg chocolate production line(MF-BM)
Classical Ball Egg chocolate production line(MF-BM)
Classical Ball Egg chocolate production line(MF-BM)
Classical Ball Egg chocolate production line(MF-BM)

Description

Reviews(5)

☑ One shot chocolate making machine & center filling chocolate making machine will bring more products and market market shares for users. Moreover, it is also caramel filling chocolate production line or Lindor chocolate production line which can be expanded freely to meet users’ chocolate innovation needs in 20 years or more.

Upgrading famous product is one of the easiest way for successful innovation

This is famous chocolate brand in the world  -- GODIVA.

We use technology and creativity to upgrade products, not only soft filling, but also whole nuts.

Almonds, hazelnuts and other nuts can be combined with chocolate.

Relying on the innovative resources of chocolate industry chain, we expand the product vision and technology level in cooperation with large companies. g&d become the most innovative chocolate molding line supplier in China. We use technology and creativity to upgrade famous products and attract customers with unique taste.

More features of this product

■ The combination of chocolate and nuts makes it taste special.

■ Center filling amount can be 30% to 80%, help users reduce costs.

■ Many different shapes can be made in one mold.

■ Our product design team provides customers with more styling and creativity service.

Do you know how to make this delicious chocolate?

Do you want to know how to make this delicious chocolate?

The production line is an open system,each machine can be move in or out of the production line as your requirement.

This chocolate production line looks a little different, right?

Yes, this is a modular production line that combines extremely freely.

It can be flexibly combined according to the needs of the production process.



Our technical team is originator and developer of this technology.

Let’s check out how special this production line is?

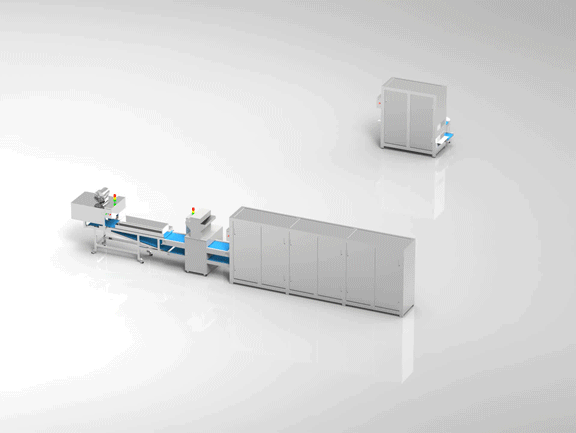

■ It is Linear Modular Design’’. The magic of this design is that it enables this molding line very flexible and can almost make all the chocolate available today and in future.

■ The space occupied of production line is only 50% of the ring modular equipment, the same workshop will create more capacity for users.

■ The production line adopts CNC deposit technology, and the energy consumption is only about 65% of the heavy CNC production line, which saves considerable use cost for users.

■ The rich functional modules support the future development of users and enables them flexibly expand the required functions and capacity.

■ Advanced design and mature technology makes installation and debugging very easy, users can easily handle equipment installation and production;

■ There are 2 types production line: 6-8 molds/min and 10-12 molds/min

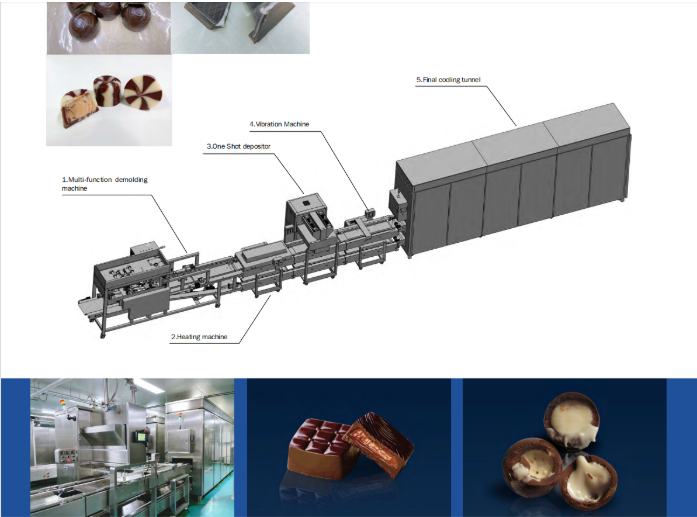

Machines included in this production line

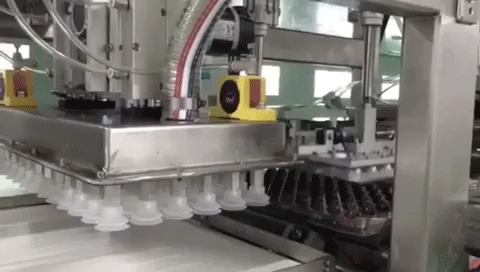

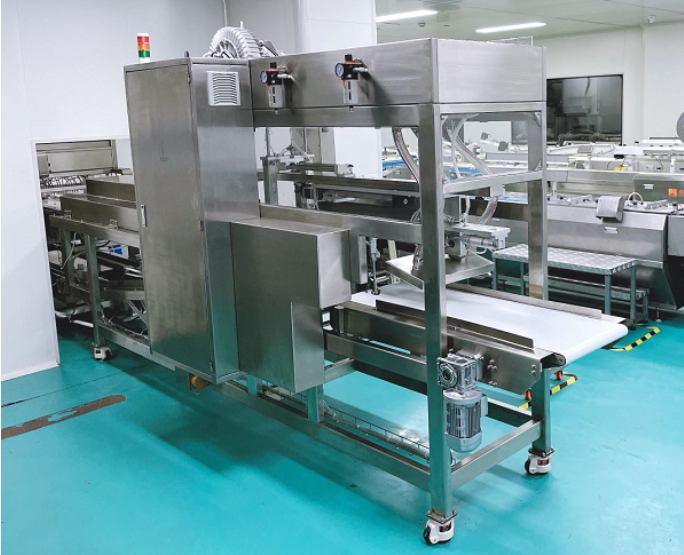

Multi-function demolding machine

■ Multi-function: vacuum demolding, mold tapping and automatic packing to    meet the demolding needs for different products of users.

■ Fast demolding speed: max 14mold/m, bigger capacity is also available.

■ The demolding machine has drying function.Very accurate temperature controlling and easy to set parameters.

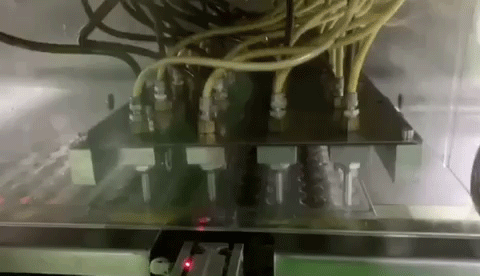

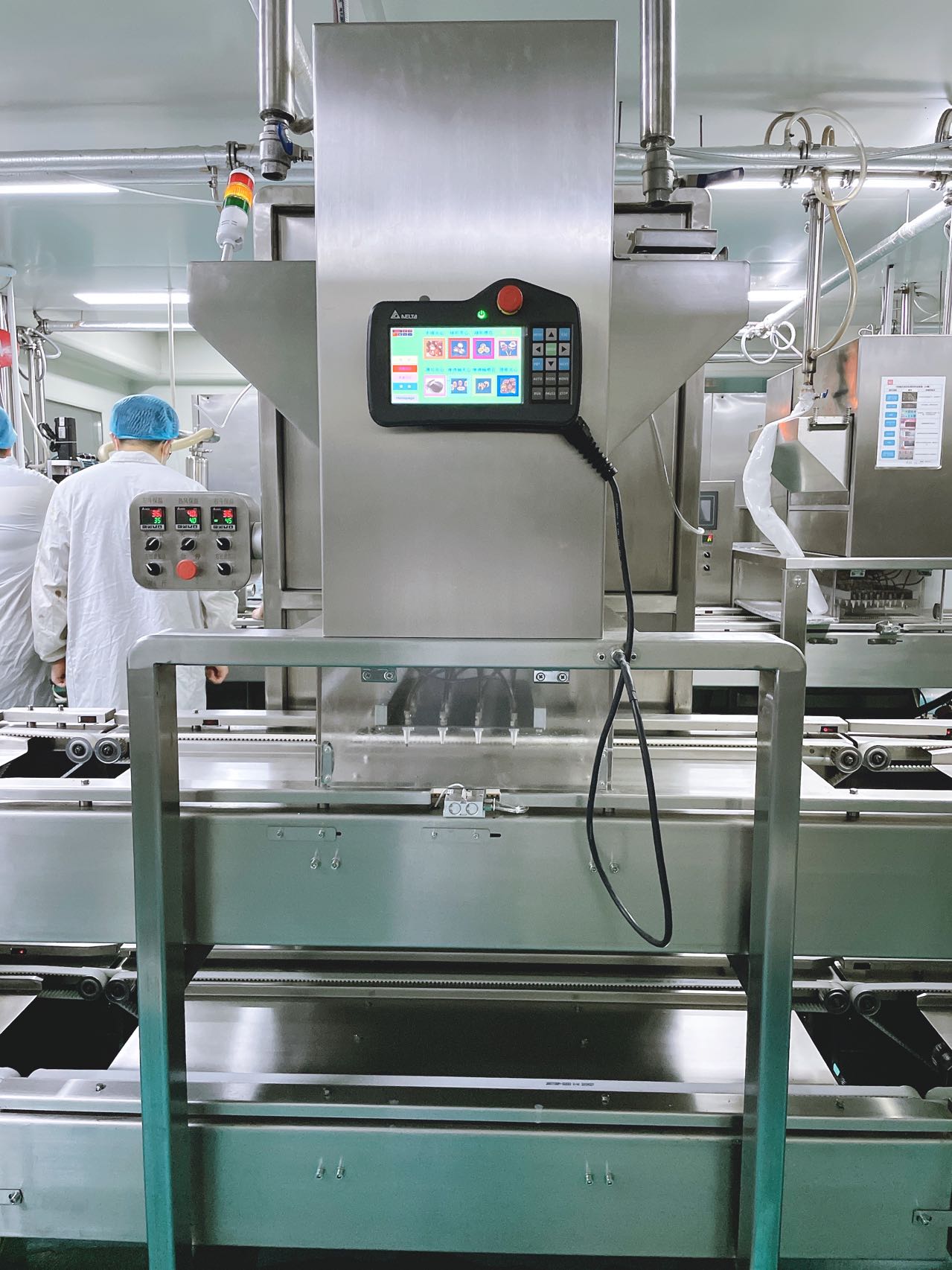

One shot depositor

■ Compared with 200kg heavy depositor moving parts, the weight of the light CNC depositor moving parts is less than 10 Kg, and the running is light and fast, the energy consumption and use cost are greatly reduced, and the reliability is greatly improved.

■ The standard depositor is equipped with 48 sets pistons, depositing accuracy can be up to ±0.1g. Bigger capacity is also available.

■ Depositing speed is normally 6-8mold/min.

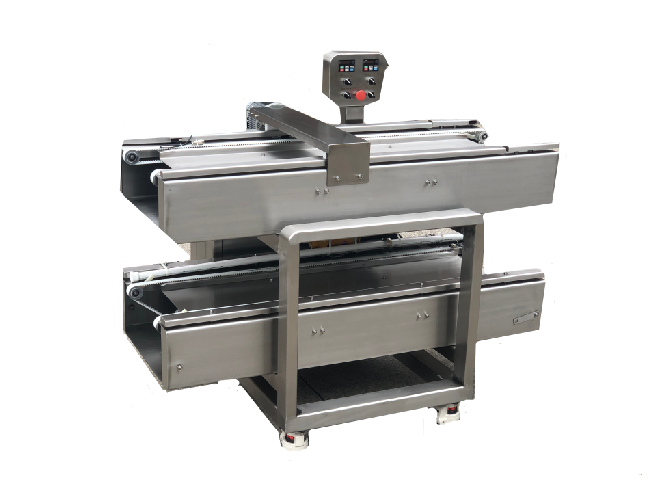

Vibration machine

■ Vibration and swing, two ways for choice to balance material according to different material.

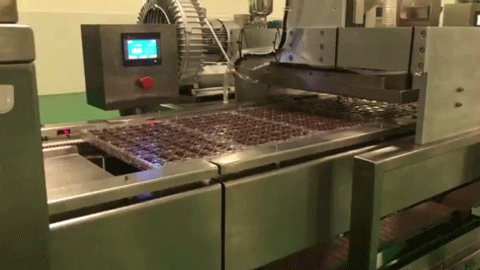

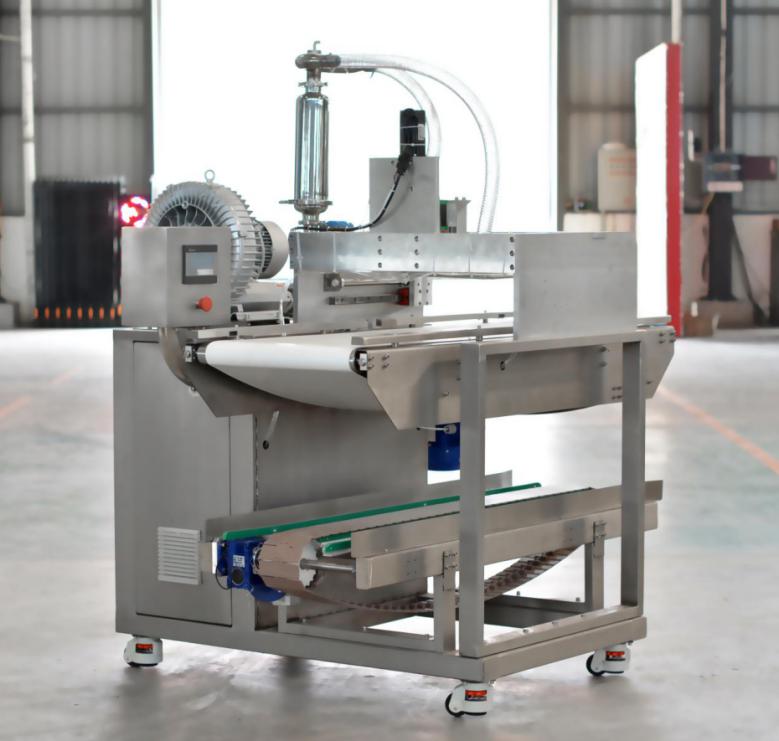

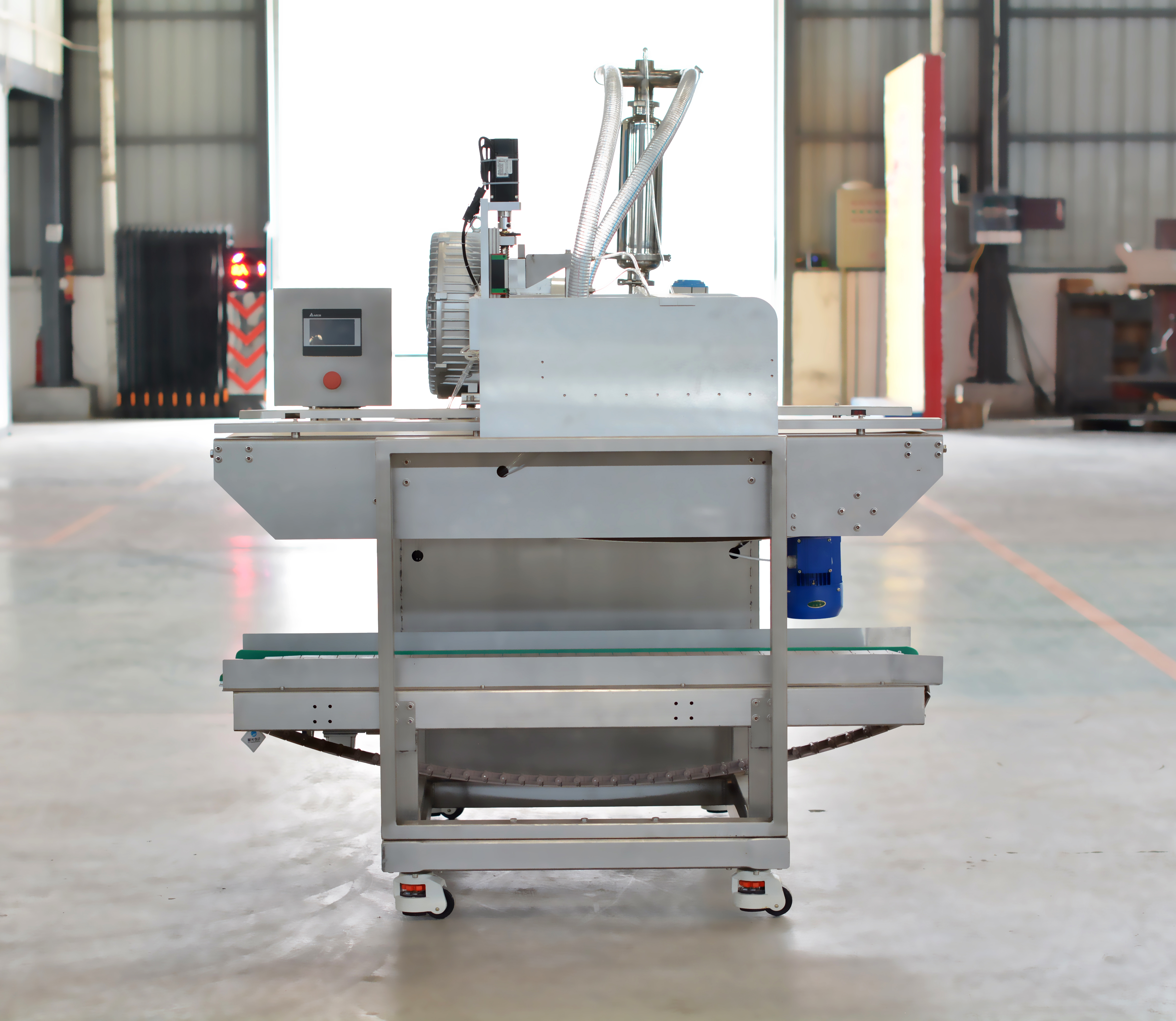

Feeding Nuts Machine

■ Feed nuts automatically;

■ The speed is 5-7 mold/m,big capacity is also available.

■ Suitable for different kinds nuts.

Pre cooling tunnel

■ Using lifting technology,customer can choose pre-cooling or pass it directly if the product do not need pre-cooling.

■ All stainless steel material, 48 molds can be accommodated, precooling temperature, operating speed and other parameters can be set as request.

■ Refrigeration integrated machine, when recombining the production line, no need to connect another pipeline, the machine can be re-positioned flexibly.

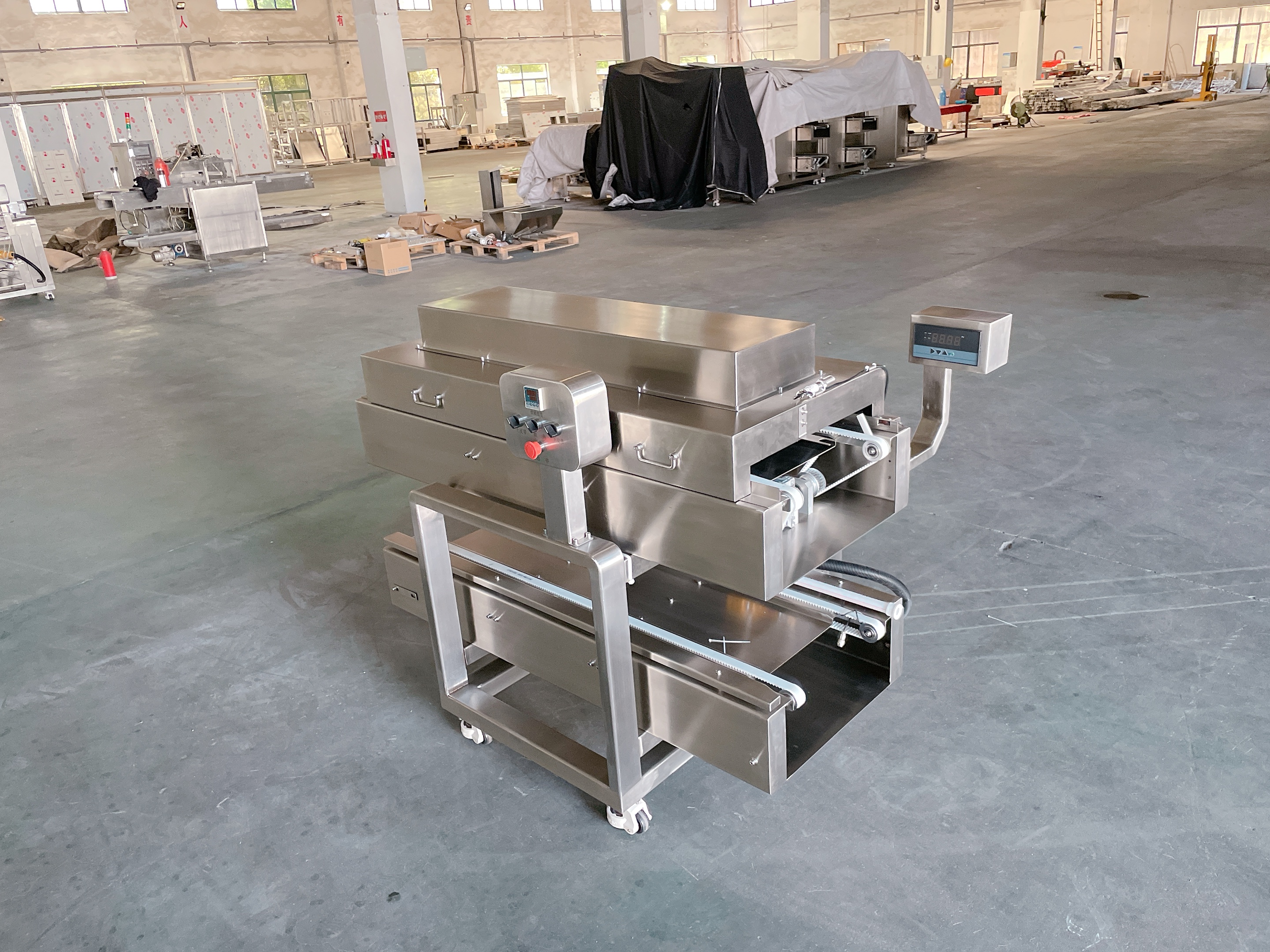

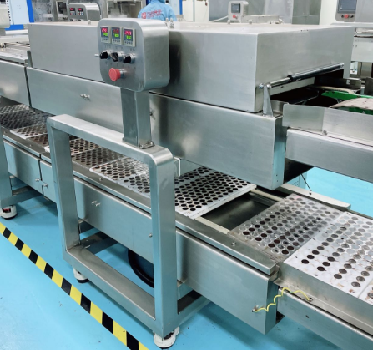

Heating Machine

■ The heating temperature can be set as requirement,accuracy can be 0.1 Celsius.

■ The upper conveyor is designed with synchronous belt and the lower conveyor is designed with chain plate,convenient replacement with a low cost.

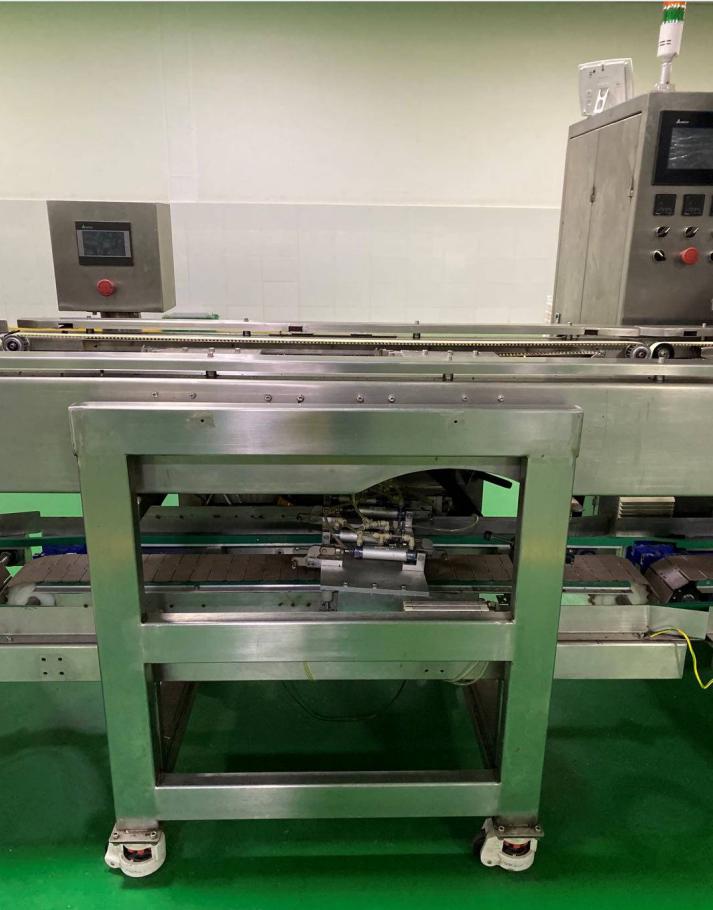

Booking molding machine

■ Close two half ball into a complete 3D chocolate.

■ Speed is 5-6mold/m.

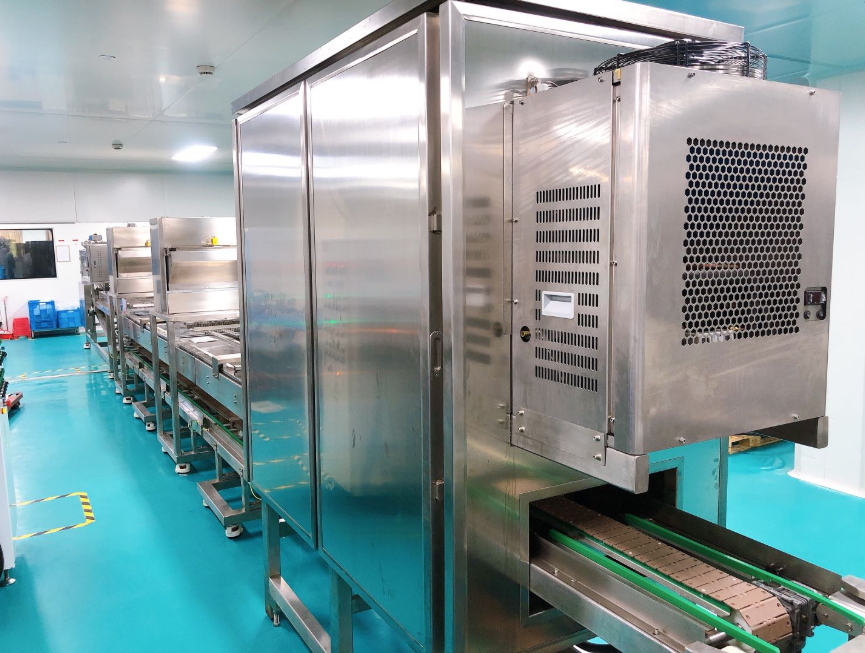

Energy saving final cooling tunnel

■ Lifting structure and advance design concept, this machine is suitable for different height product.

■ Good humidity controlling, it is good for biscuit chocolate making.

■ High efficiency, max 14 mold/min, excellent refrigeration and energy saving.

No. Capacity
(mold/m)
Size
(m)
Power
(kw)
Quantity/m Shapes/m
1 6-8 20.5X1.46X2.6 43 72-144 many
2 10-12 20.5X1.46X2.6 45 72-144 many

The quantity can be placed in a mold depends on the product size.

You must want to know what other products can be made by this production line.

Many different shapes chocolate can be made by this line if change another depositing and demolding plate.

What should do if you want to make new varieties to meet new market trend?

Do you need to invest much more money to buy new production line?

No,you need not!Your new requirement can be easily realized only by adding some modular machines to this existing line.

If one set decoration depositor and one set vibration machine equipped to this line,you can make decoration chocolate as follows:

Our modular technology and innovation ability will keep chocolate line advanced for many years.

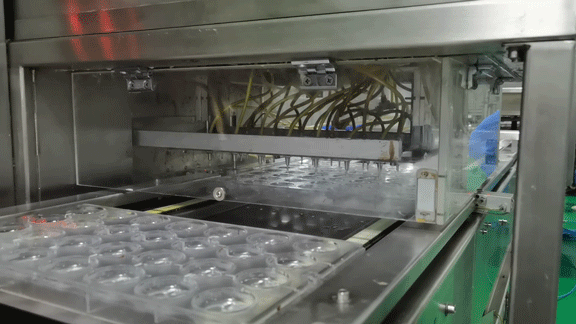

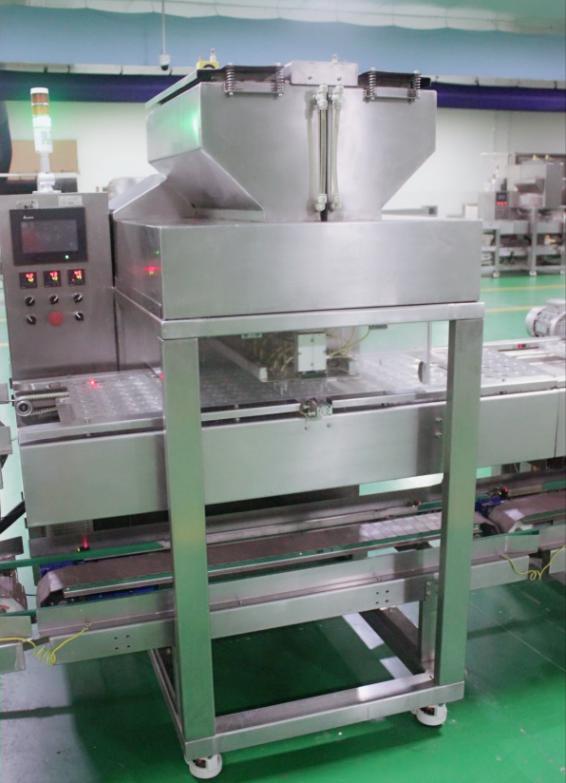

Decoration depositor

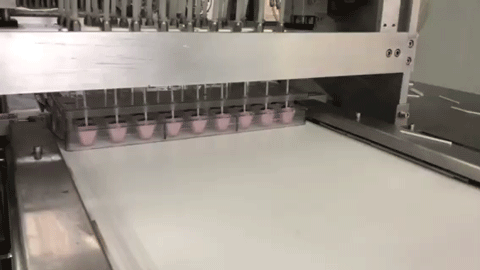

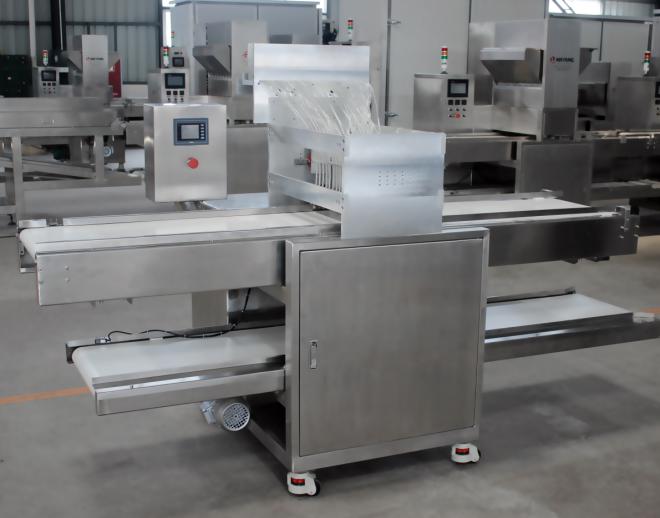

Stick feeding machine

Mushroom biscuit feeder

Are we only a machine manufacturer?

No, far more than that, we are not only excellent equipment manufacturers, but also product creative providers.

Our design team will help users design hundreds of product shapes every year.

Our chocolate factory is also available to users for new products development and testing.

Please contact our sales if you want to know more about us.
