Decoration Chocolate Multi-function Manufacturing Lines

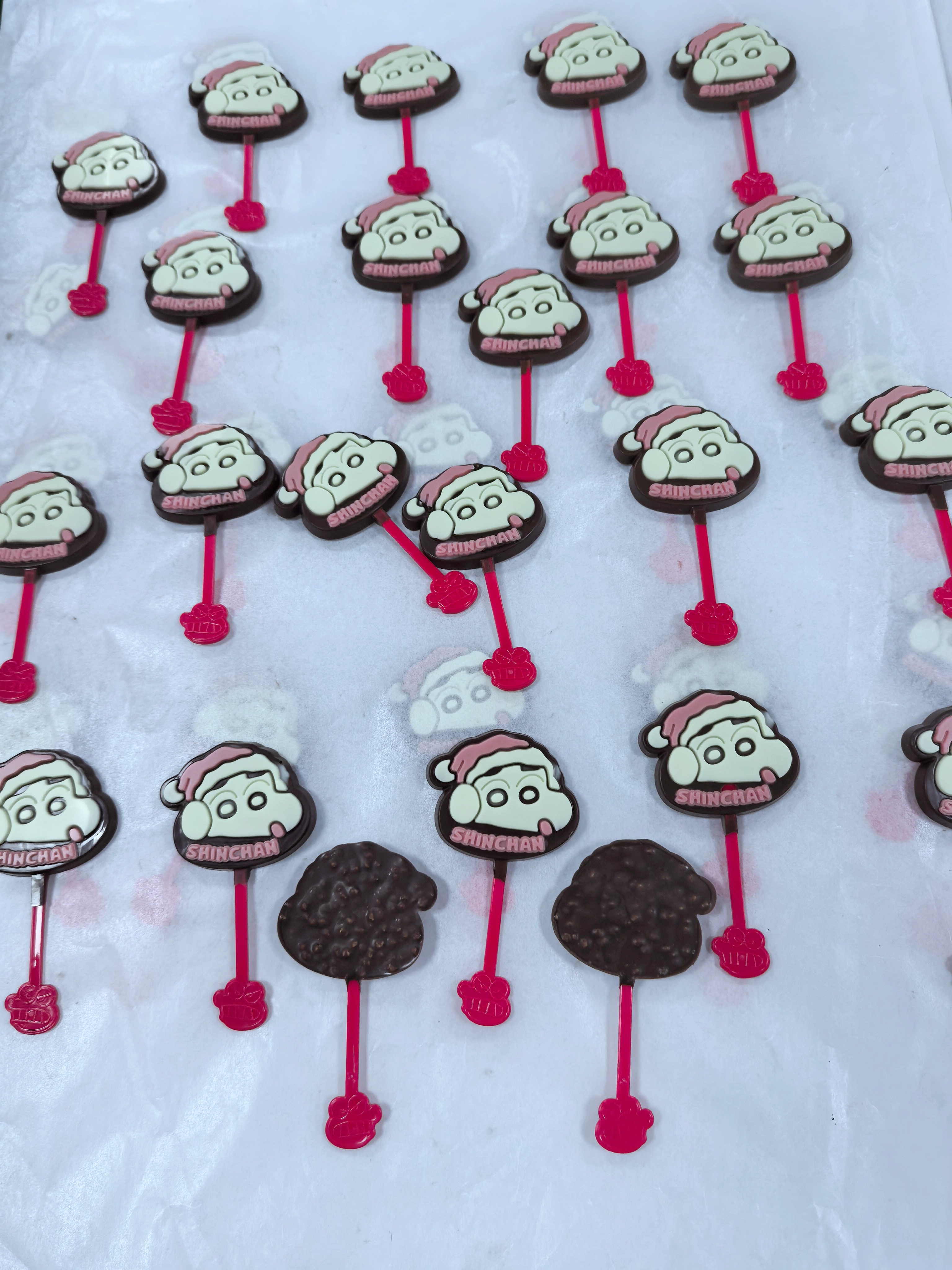

Chocolate Decoration Biscuit Production Line & TRAYING Machine (MF-DB)

Chocolate Decoration Biscuit Production Line & TRAYING Machine (MF-DB)
Chocolate Decoration Biscuit Production Line & TRAYING Machine (MF-DB)

Description

Reviews(5)

☑ Decorating chocolate machine & decoration chocolate production lines will bring more products and market shares for users. Moreover, the decorating chocolate production line or decorating biscuit chocolate equipment which can be expanded freely to meet users chocolate innovation ideas in 20 years or more.

UPGRADING is one of the easiest way to innovate successfully.

Someone loves to taste the wonderful chocolate, but Someone love to eat biscuit.

How about we put them together ?
This Decorating & Biscuit production line can achieve this function.

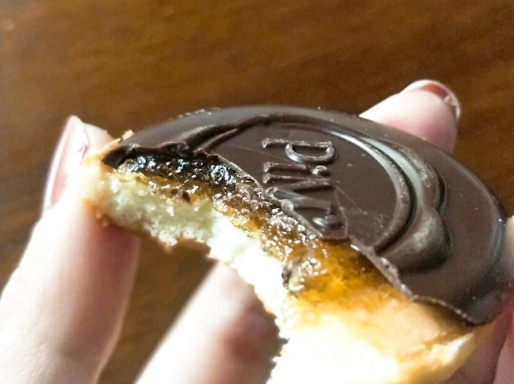

Let's take a look at the chocolate from the famous brand LU in France.

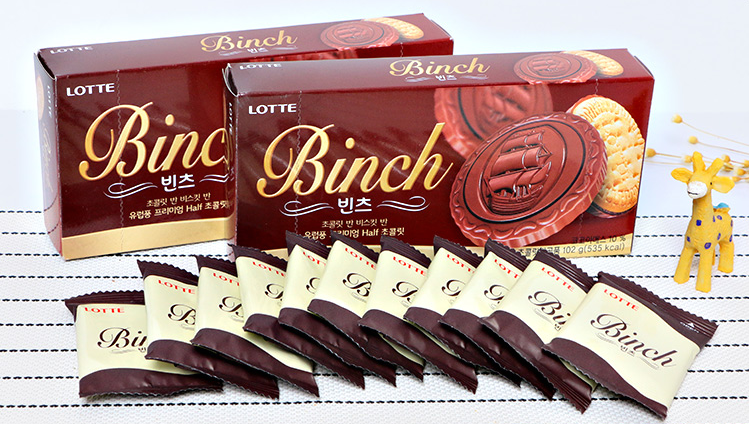

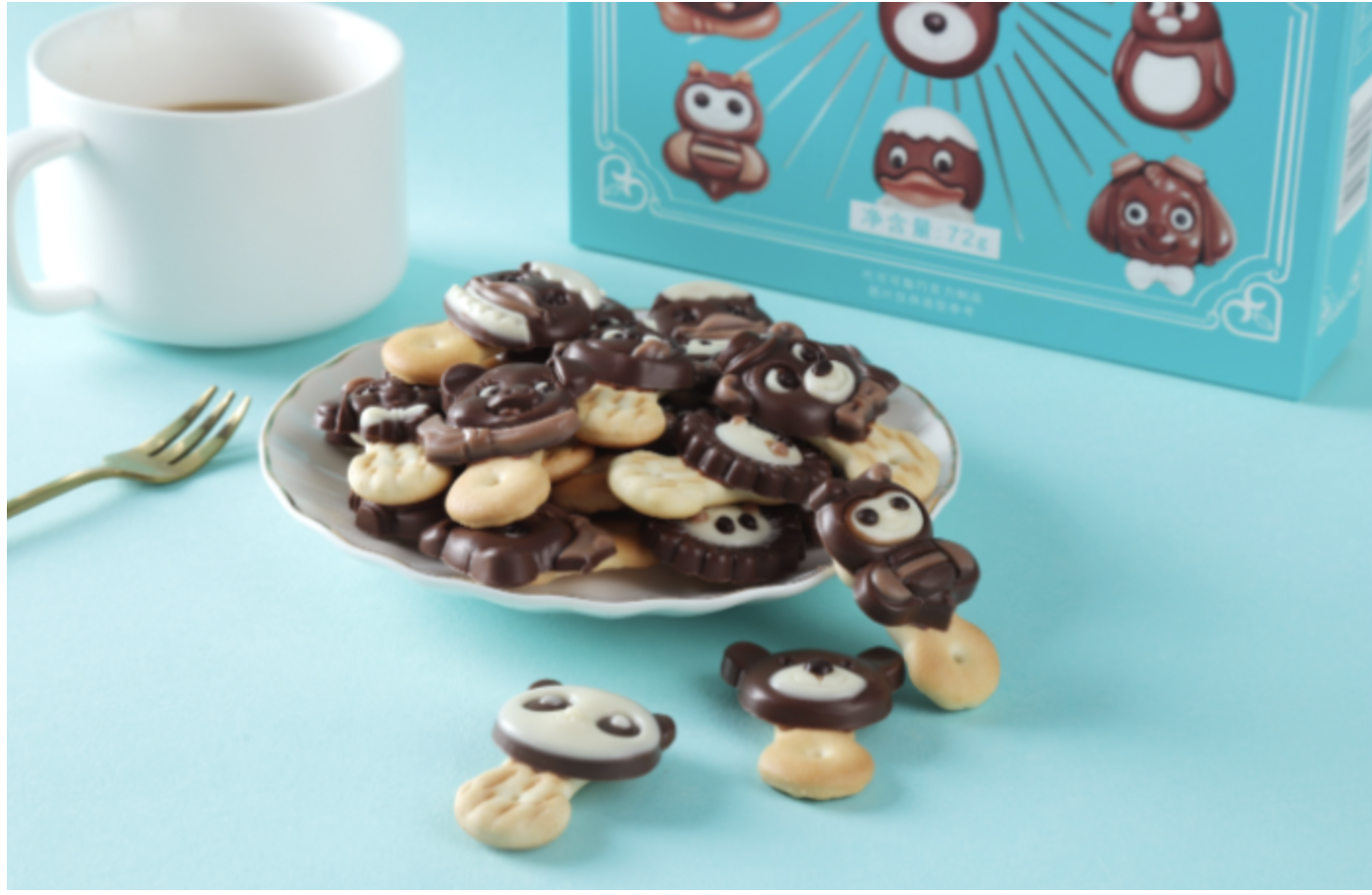

The photo below show the famous brand LOTTE  from KOREA.

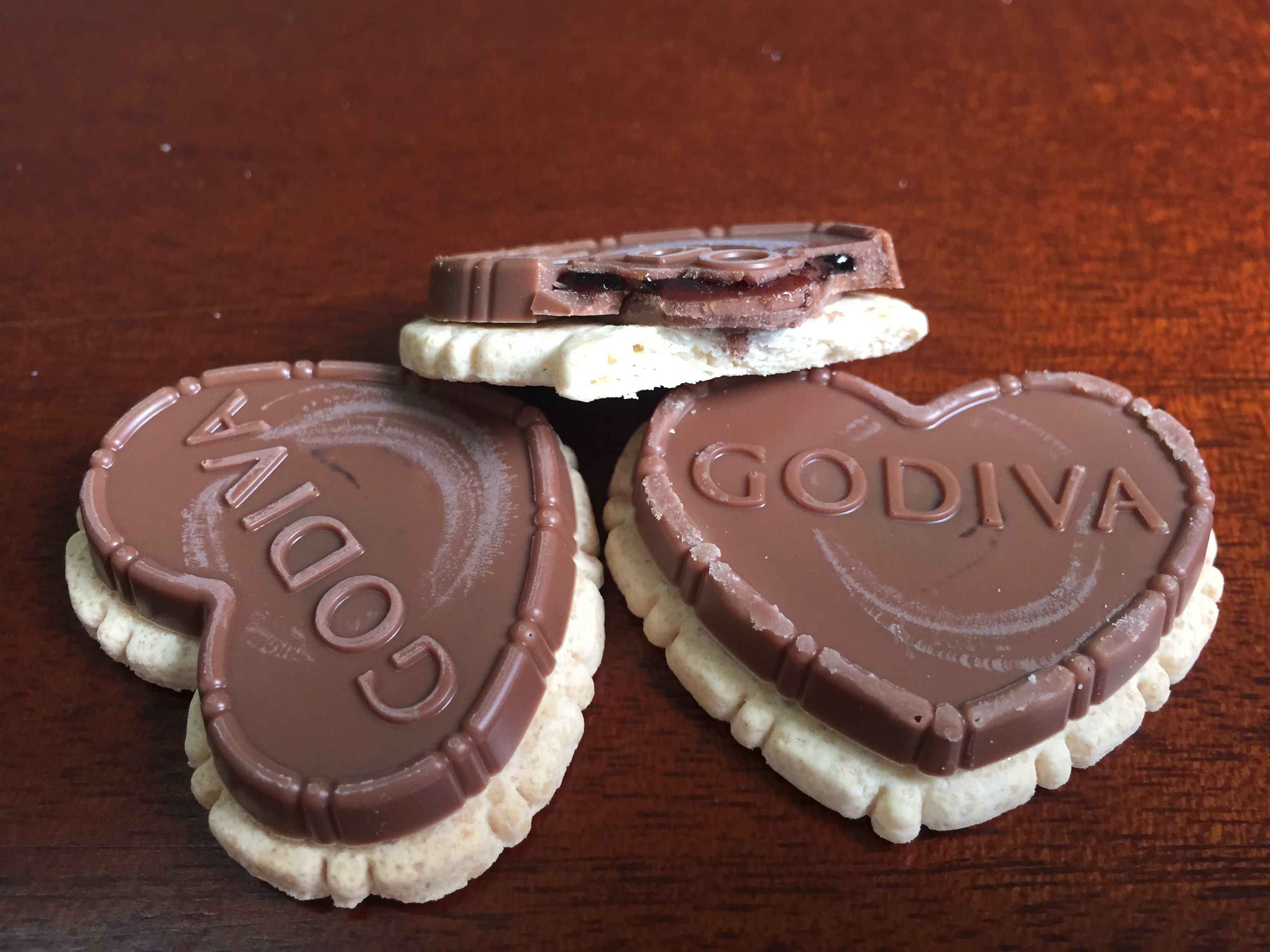

Godiva combine the chocolate one shot with the Biscuit.

Also take a look at the MILKA chocolate from the famous brand KRAFT FOODS from USA.

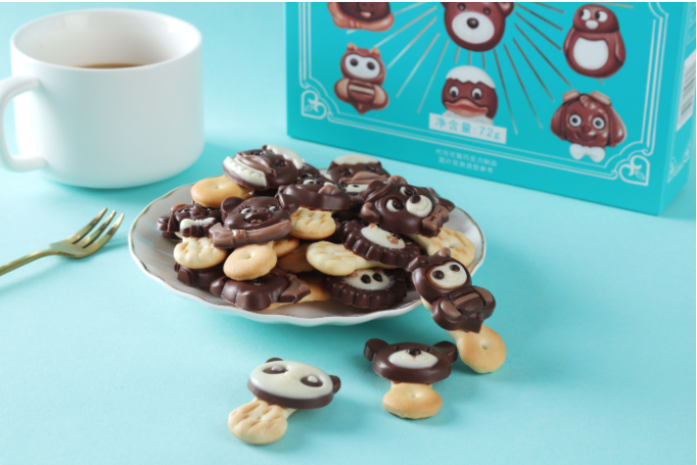

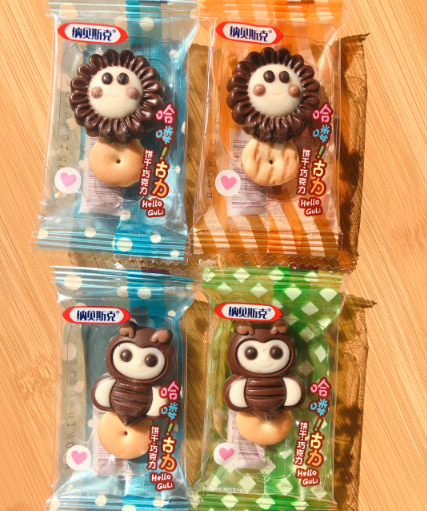

Our technology and creativity can upgrade the Biscuit chocolate as following.

Combine with Decoration technology ;

Add more colors on the chocolate, more eye-catching.

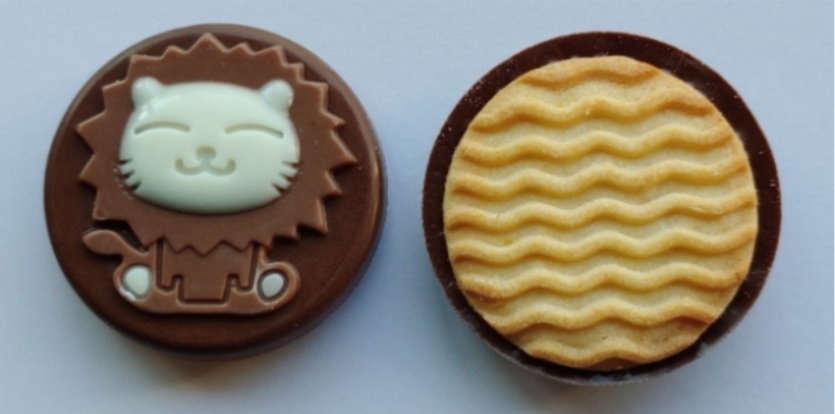

Biscuit as the filler is a great idea.

Rich taste, reduce cost, safer for kids.

Product and technology features

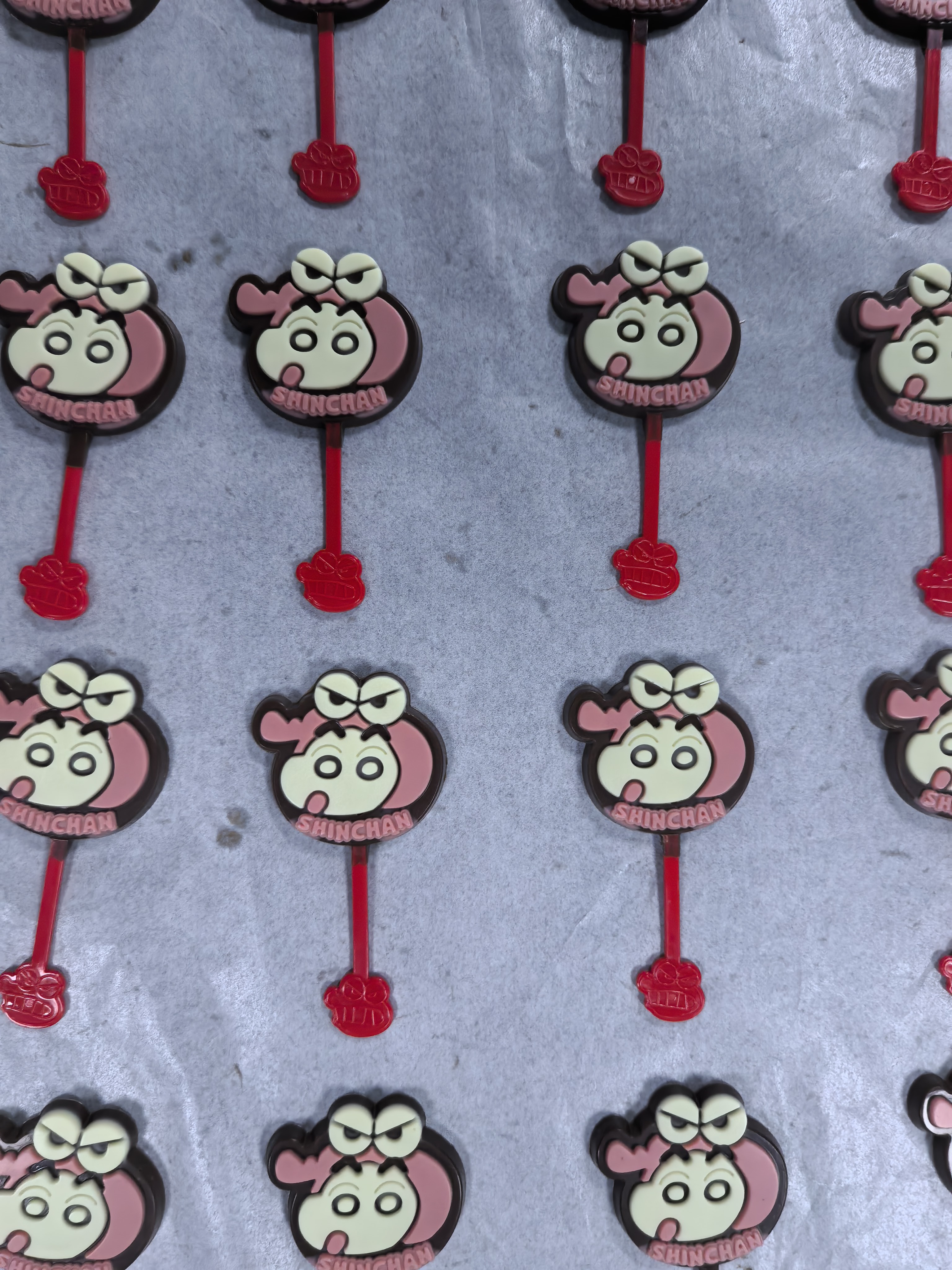

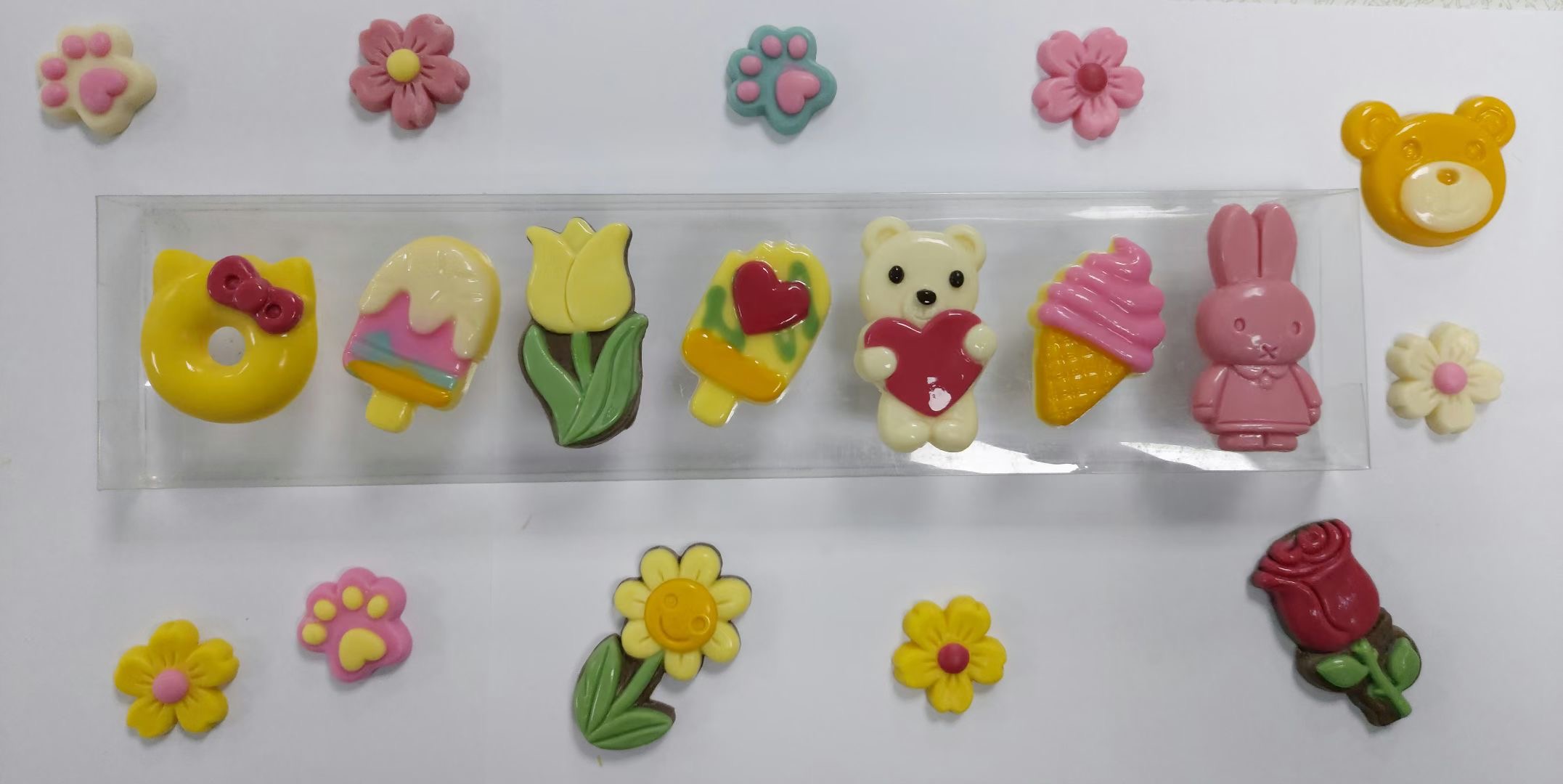

■ Small color lump such as the eyes, nose, ears make the chocolate more vivid.

 Richer shapes give chocolate more meaning and more consumption scenarios.

 1-3 different shapes can be made in one mold.

■ Our product design team provides customers with more styling and creativity service.

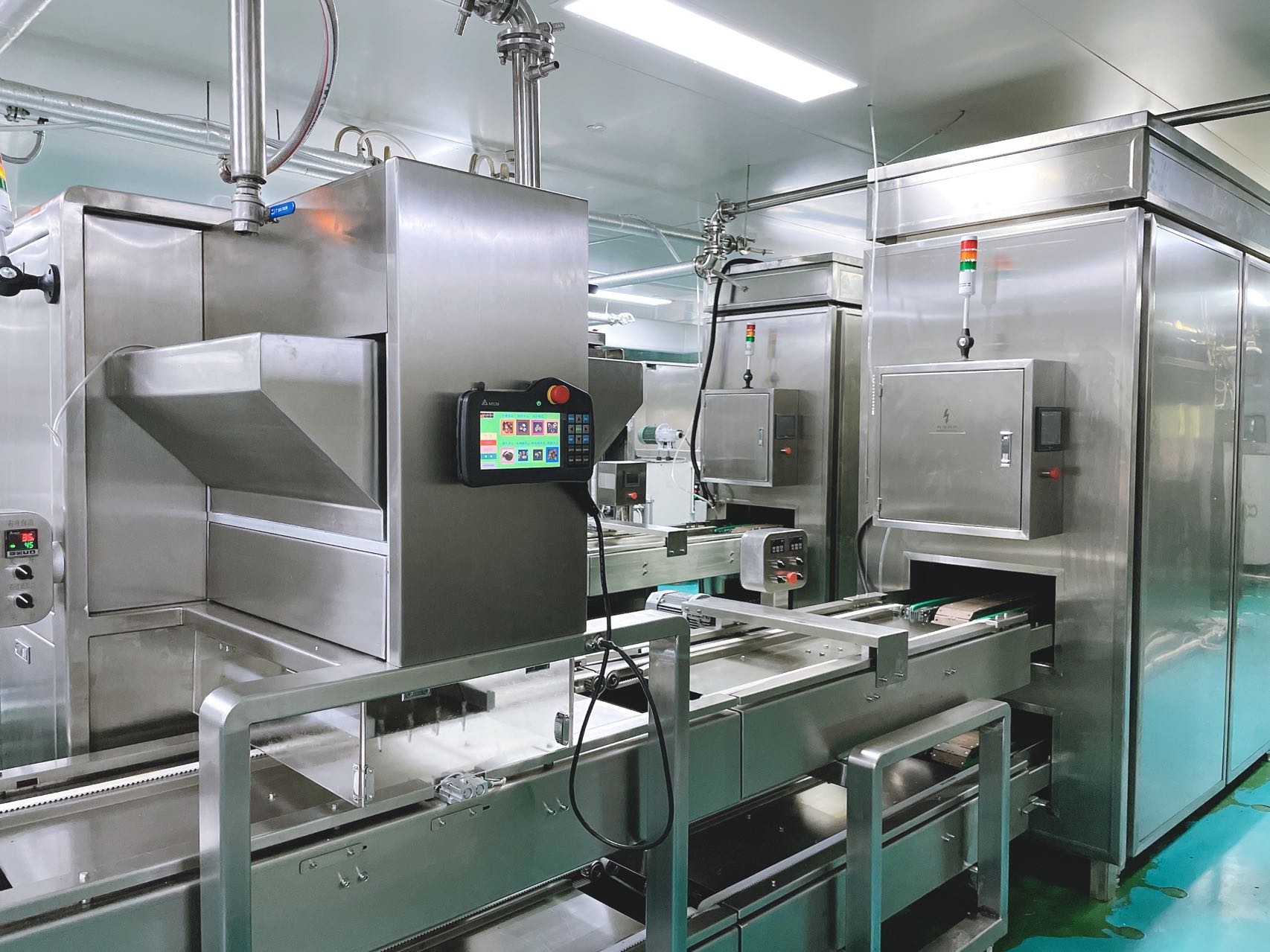

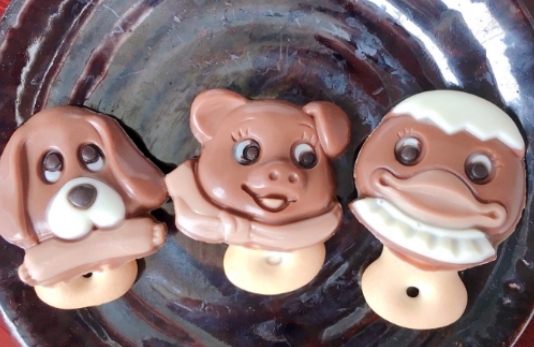

All Decoration Biscuit chocolate is producing on this similar line.

Decorating 2 colors by g&d Light CNC chocolate depositor.

Allow to decorating different color lumps once.

Each Decorating depositor have two hoppers which would dressing two colors or four colors.

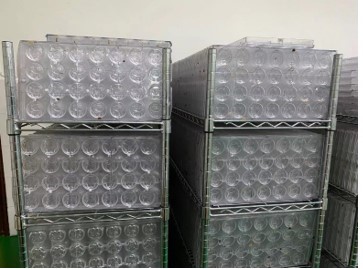

  Demolding & Traying

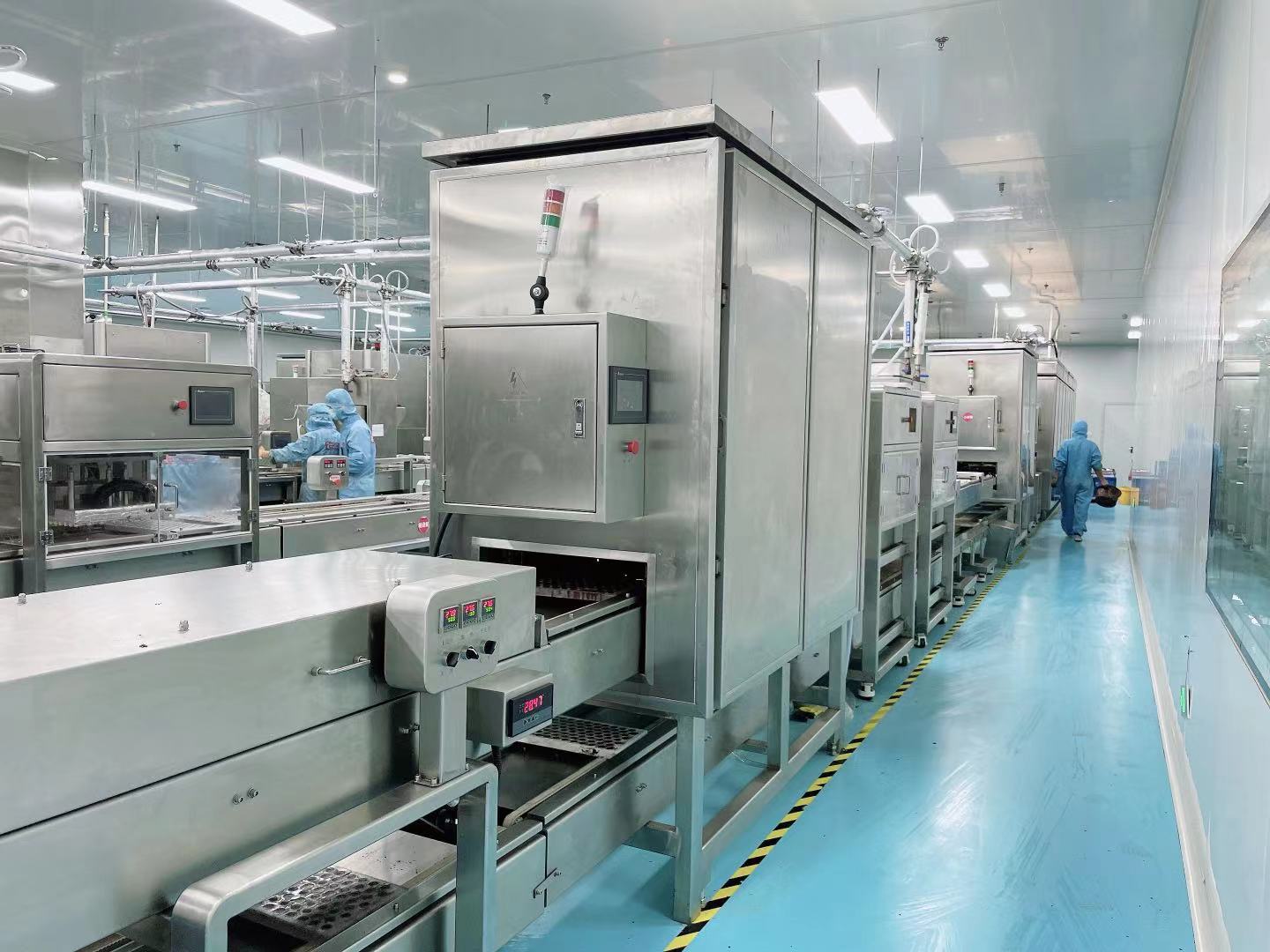

This Decoration chocolate production line looks some different, right?

Yes, it is a Chocolate Modular Production Line that combines extremely freely.

It can be flexibly combined according to the needs of the production process.

Our technical team is the originator and developer of this technology.

Similar products of BOURBON(Japan) also produce the Decoration chocolate with Biscuit.

Let's take a look at the special features of this production line

■ It is "Linear Modular Design". The magic of this design is that it enables this molding line very flexible and can almost make all the chocolate available today and in future.

 The space occupied of production line is only 50% of the ring modular equipment, the same workshop will create more capacity for users.

 The production line adopts CNC decoration technology, and the energy consumption is only about 65% of the heavy CNC production line, which saves considerable use cost for users.

 The flexible design enables the production line to simply change different types of molds and easy to change the program. The Decoration depositor would store over 100 different styling programs inside.

 The rich functional modules support the future development of users and enables them to flexibly expand the required functions and capacity.

 Full Automatic Biscuit feeder is able to feed the biscuit horizontal and vertical by Robot Arm.

 Advanced design and mature technology makes installation and debugging very easy, users can easily handle equipment installation and production;

■ There are 2 types production line: 5-6 molds/min and 10-12 molds/min (according different colors and shapes, 36 pcs in a mold, 8g)

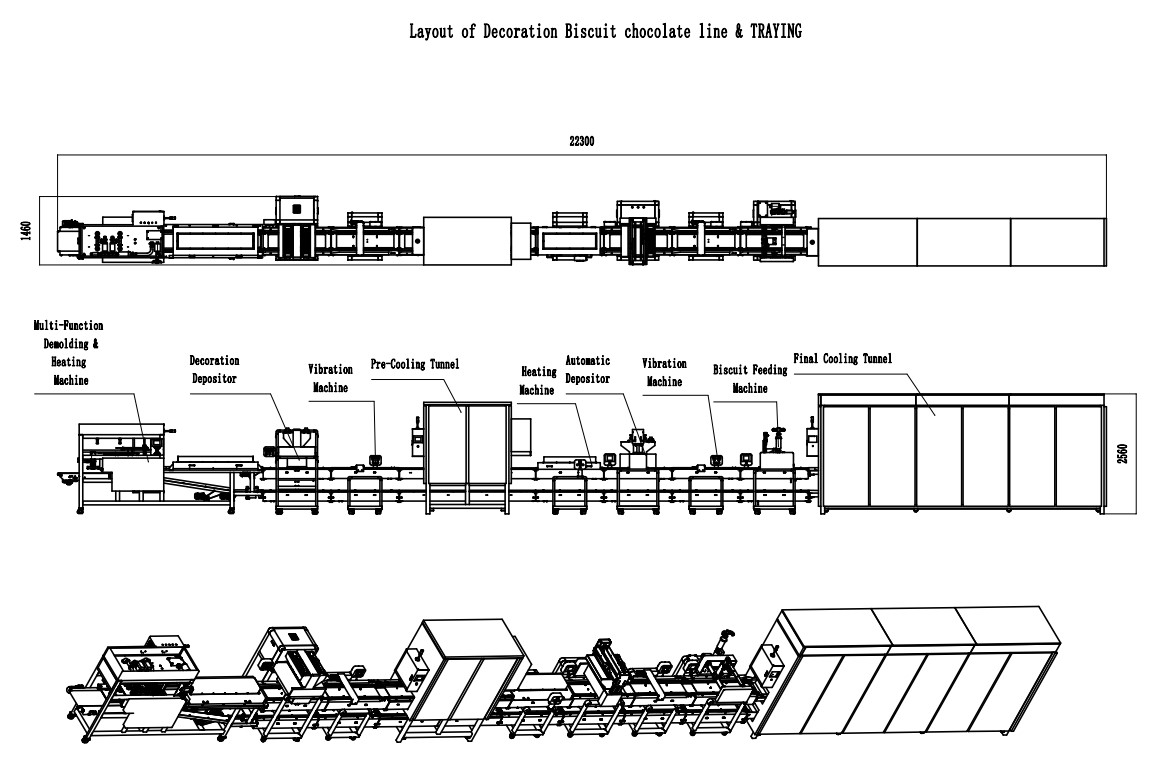

Let's take a look at what equipment is made up of the production line and what are the characteristics of these equipment?

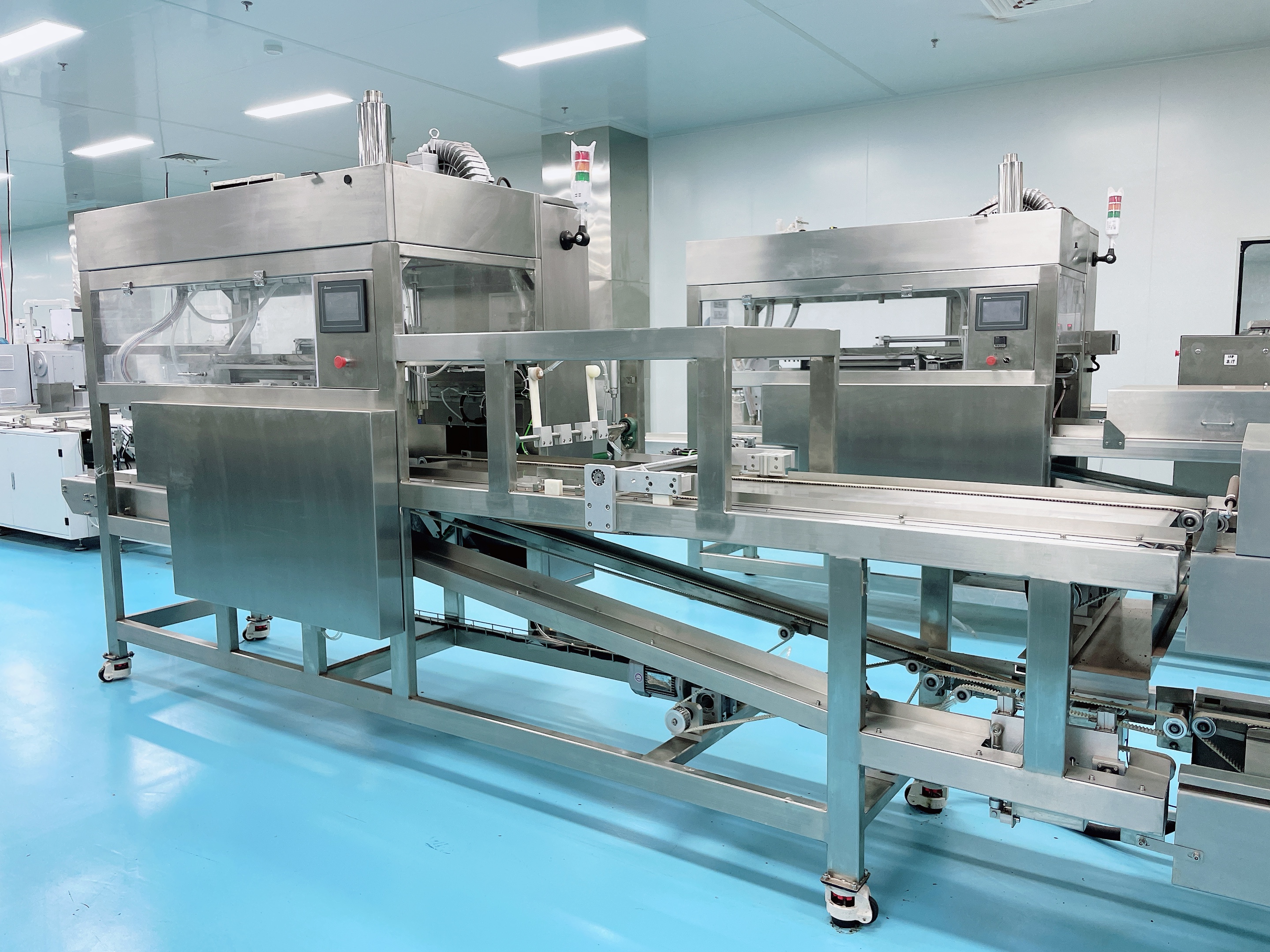

Multi-function Demolding Machine

■ Multi-function: vacuum demolding, mold tapping and automatic packing to meet the demolding needs of different products of users.

 Fast demolding speed: max 14mold/m, bigger capacity is also available.

■ Heating machine: mold heating, accurate temperature controlling, sufficient hot air circulation, the parameter setting is flexible and convenient.

Multi-function Decoration Depositor

 Compared with 200kg heavy depositor moving parts, the weight of the light CNC depositor moving parts is less than 10 Kg, and the running is light and fast, the energy consumption and use cost are greatly reduced, and the reliability is greatly improved.

 The standard depositor is equipped with 48 sets pistons, depositing accuracy can be up to ±0.1g. Bigger capacity is also available.

■ Decoration speed is normally 6-12 mold/min, it varies according to the different shapes and decoration colors.

Vibration Machine

■ Vibration and swing, two ways for choice to balance material according to different material.

Pre-Cooling Tunnel

■ Using lifting technology, customer can choose Pre-cooling or pass it directly if the product do not need pre-cooling;

 All stainless-steel material, 48 molds can be accommodated, Pre-cooling temperature, operating speed and other parameters can be set as request.

■ Refrigeration integrated machine, when recombining the production line, no need to connect another pipeline, the machine can be re-positioned flexibly.

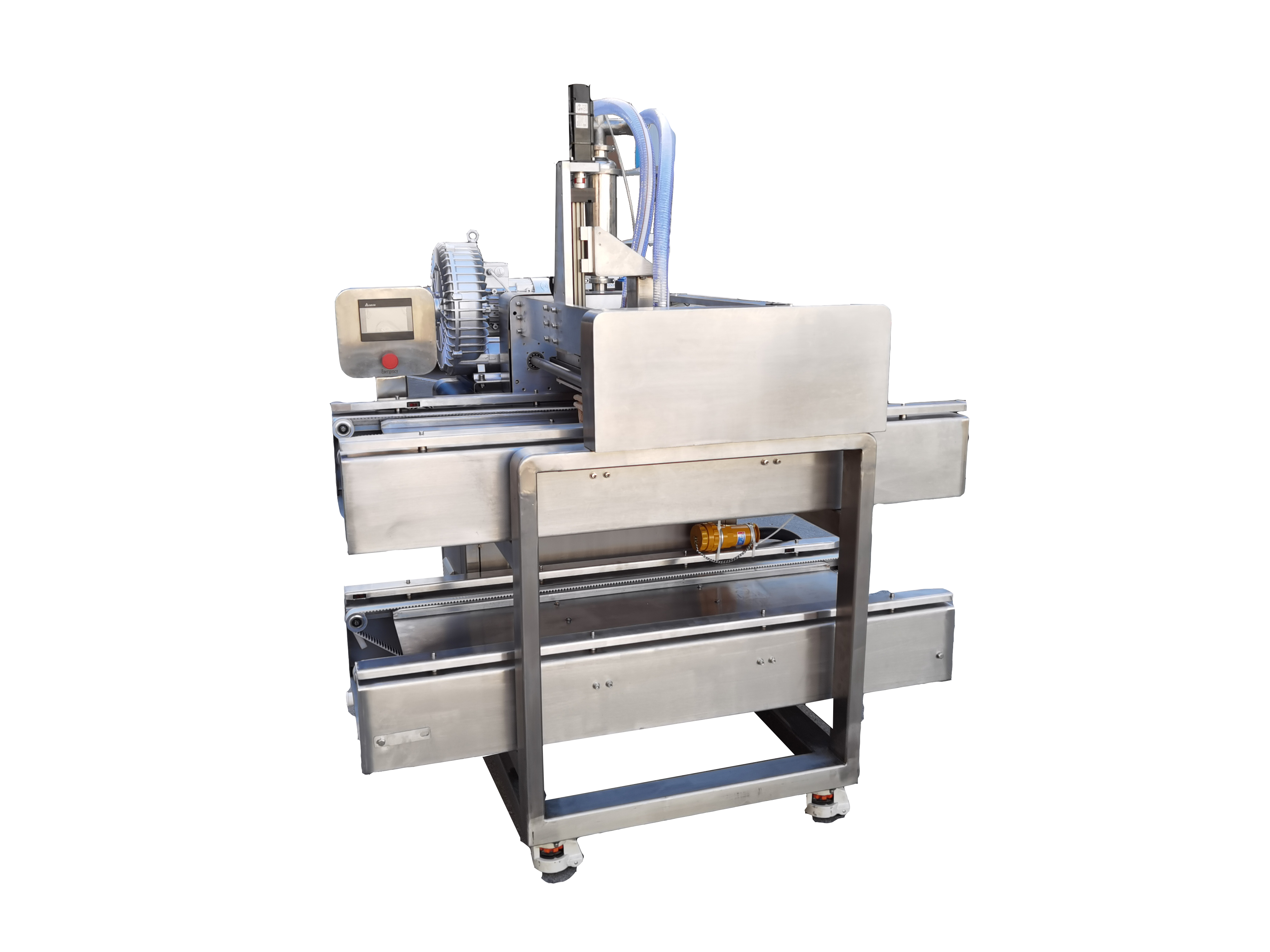

Full Automatic Biscuit Feeder to Feed Biscuit Horizontally

Feeding biscuit with Robot and Fit and any shape of biscuit.

■ Simply change of the material feeding system to fit different type of Biscuit(Round,Square.)

 Feeding the Biscuit in horizontal or vertical Mode

■ The layout of the Biscuit groove on the mold would be very flexible and be highly efficient used.

Energy Saving Final Cooling Tunnel

■ Lifting structure and advance design concept, this machine is suitable for different height product.

 Good humidity controlling enable it is good for biscuit chocolate making.

■ High efficiency, max 14 mold/min, excellent refrigeration and energy saving.

No. Capacity
(mold/min)
Size(m)       Power(kW) Products quantity(pcs)/mold Shapes(pcs)/mold
1 5-6 22.3X1.46X2.56    38.8 36 1-3
2 10-12 29.1X1.46X2.56    42.5 36 1-3

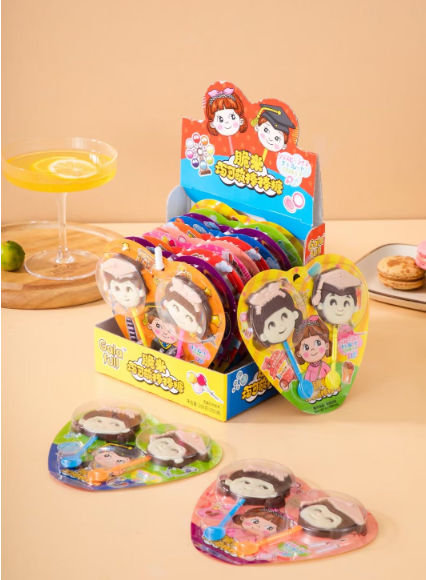

You must want to know what else products can be made on this line?

This flexible combination tech would make sure the chocolate production line will never be obsolete through adding more functionally Module machines.

One shot, decoration, one shot & decoration chocolate can be made by this line only need change another depositing plate and demoulding plate.

Decoration & Automatic Biscuit feeder, 1 set Automatic Biscuit feeder is needed to be equipped for this line.

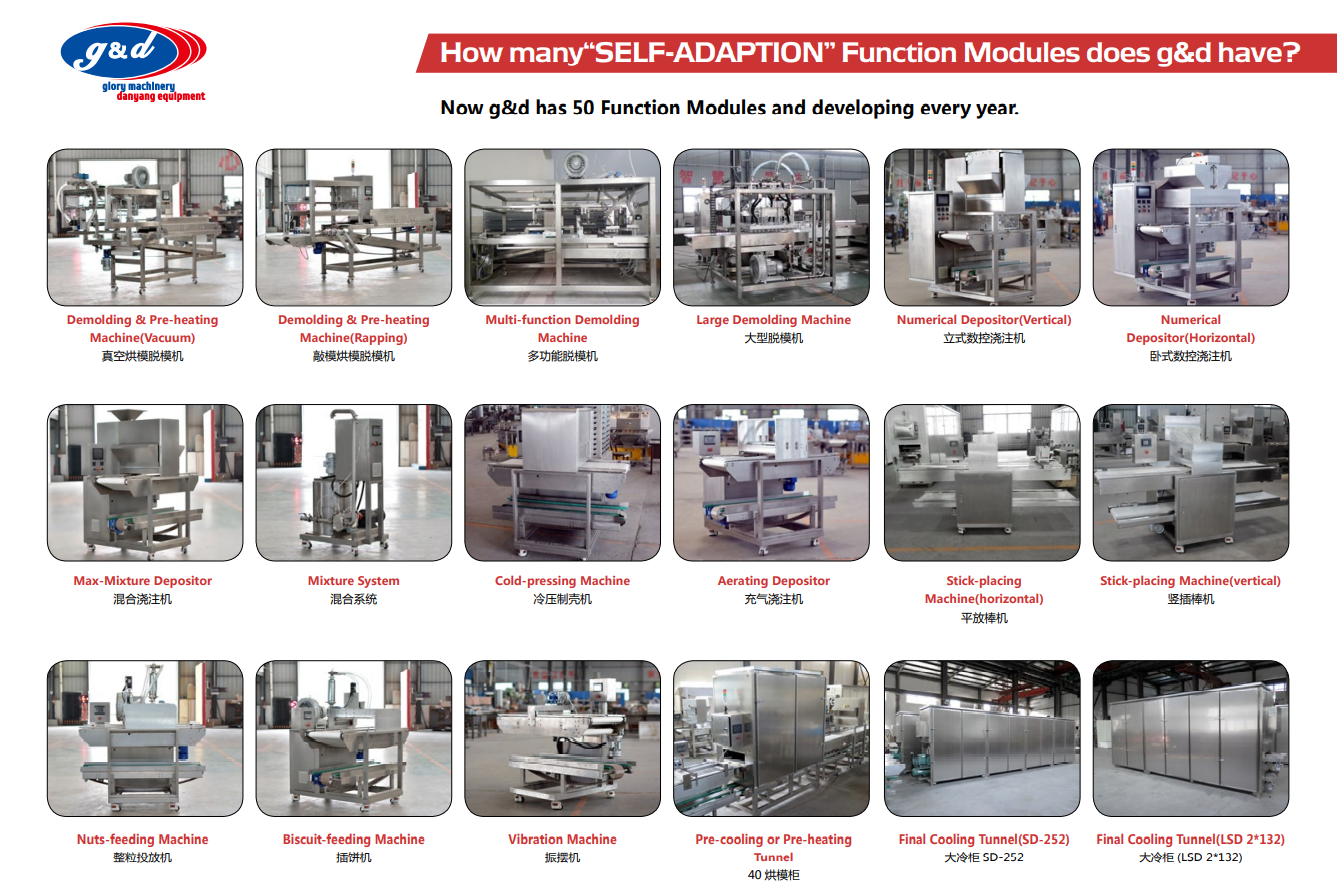

We also have more multi-functional modular machines to help users realize the desired product.

These machines can easily enter the existing production line;

Yes, this production line will be your product innovation platform,

And our technology and innovation ability will keep the production line advanced;

For more information about the production line, or you want to visit the production process on line. Please contact our export manager.

  • Win-win the future with us !
