Decoration Chocolate Multi-function Manufacturing Lines

Chocolate Decoration Lollipop Production Line & Machine (MF-DL)

Chocolate Decoration Lollipop Production Line & Machine  (MF-DL)
Chocolate Decoration Lollipop Production Line & Machine  (MF-DL)



☑ Decorating lollipop chocolate making machine & decoration lollipop chocolate production line will bring more products and market shares for users. Moreover, it is also decoration lollipop chocolate equipment & decoration lollipop chocolate line which can be expanded freely to meet users' chocolate innovation ideas in 20 years or more.

UPGRADING is one of the easiest way to innovate successfully.

Yes, chocolate has an unbeatable attraction for kids!

Let them use imagination to paint the lovely chocolate cartoon shape with beautiful colors!

Our Chocolate Decorating Production Line also can achieve this effect !

The whole Chocolate Production Line need to test over 72 hours in our workshop before shipment.

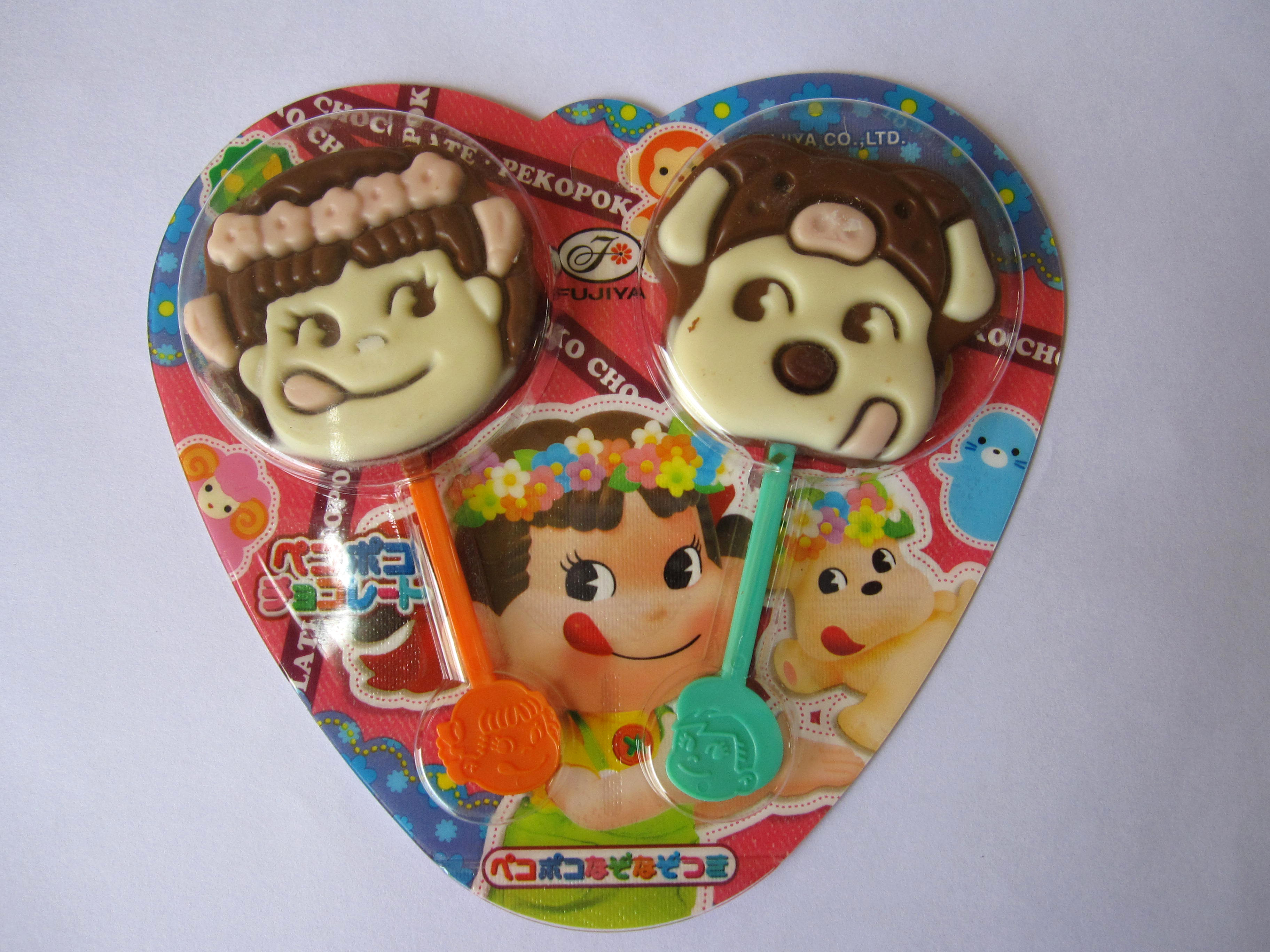

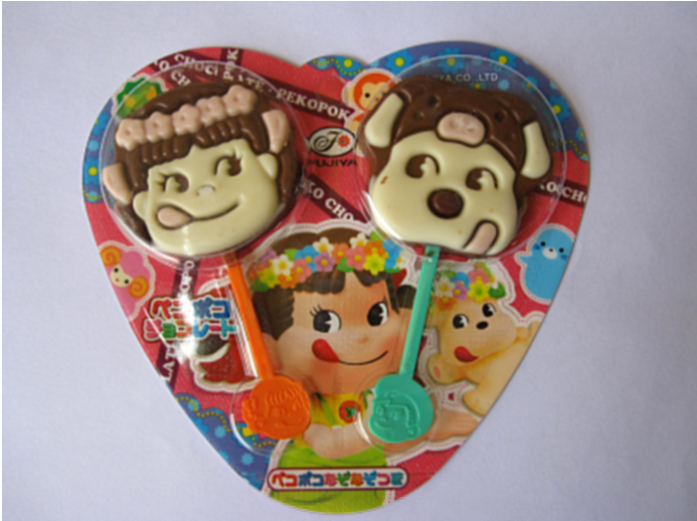

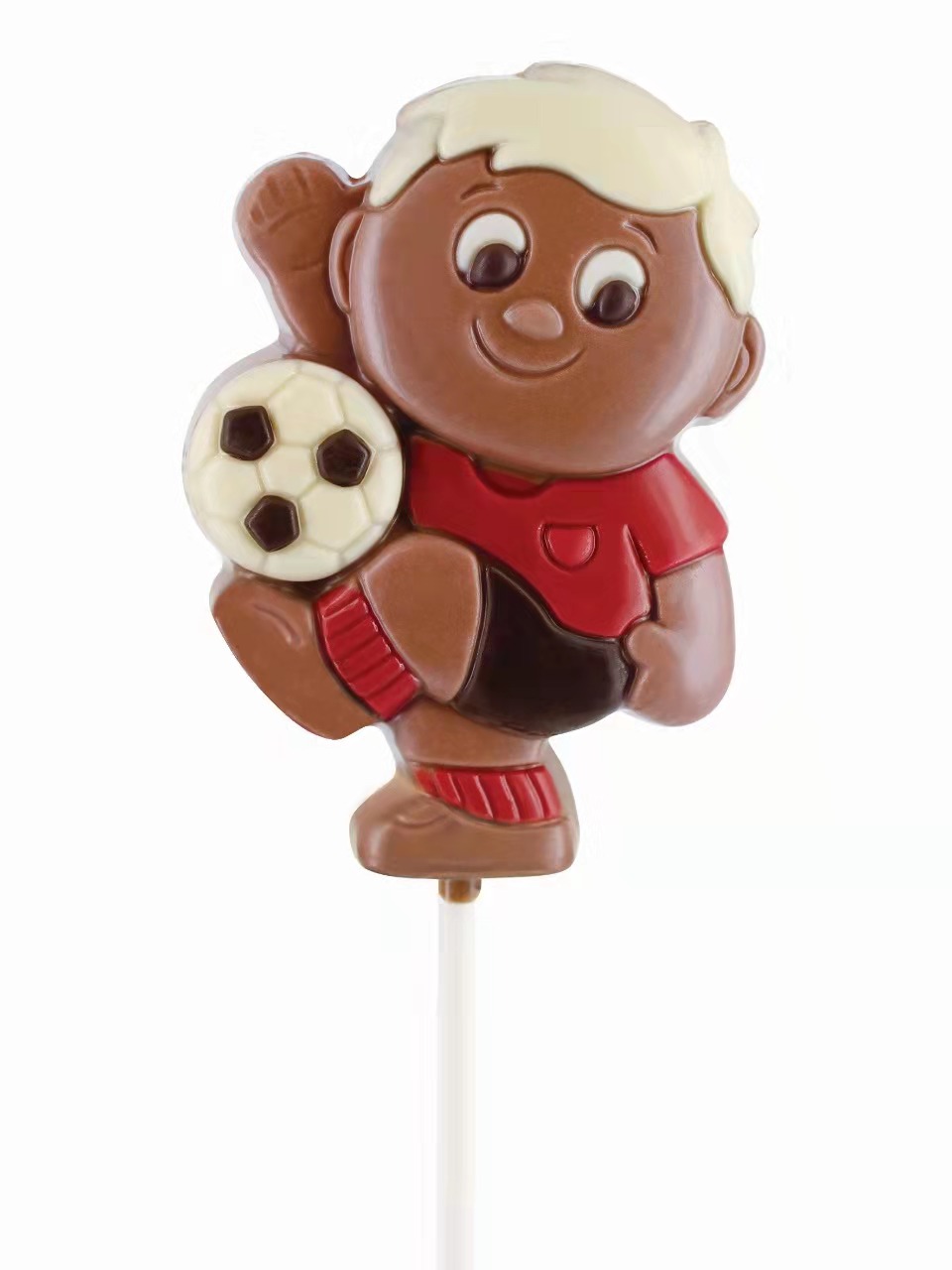

We all know the famous FUJIYA in Japan—Decoration with Plastic stick chocolate.

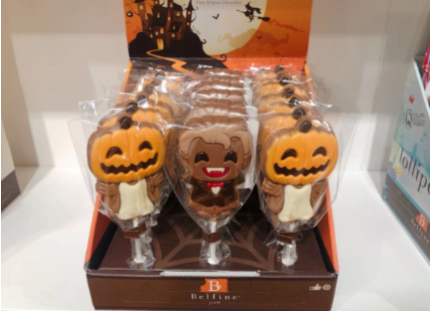

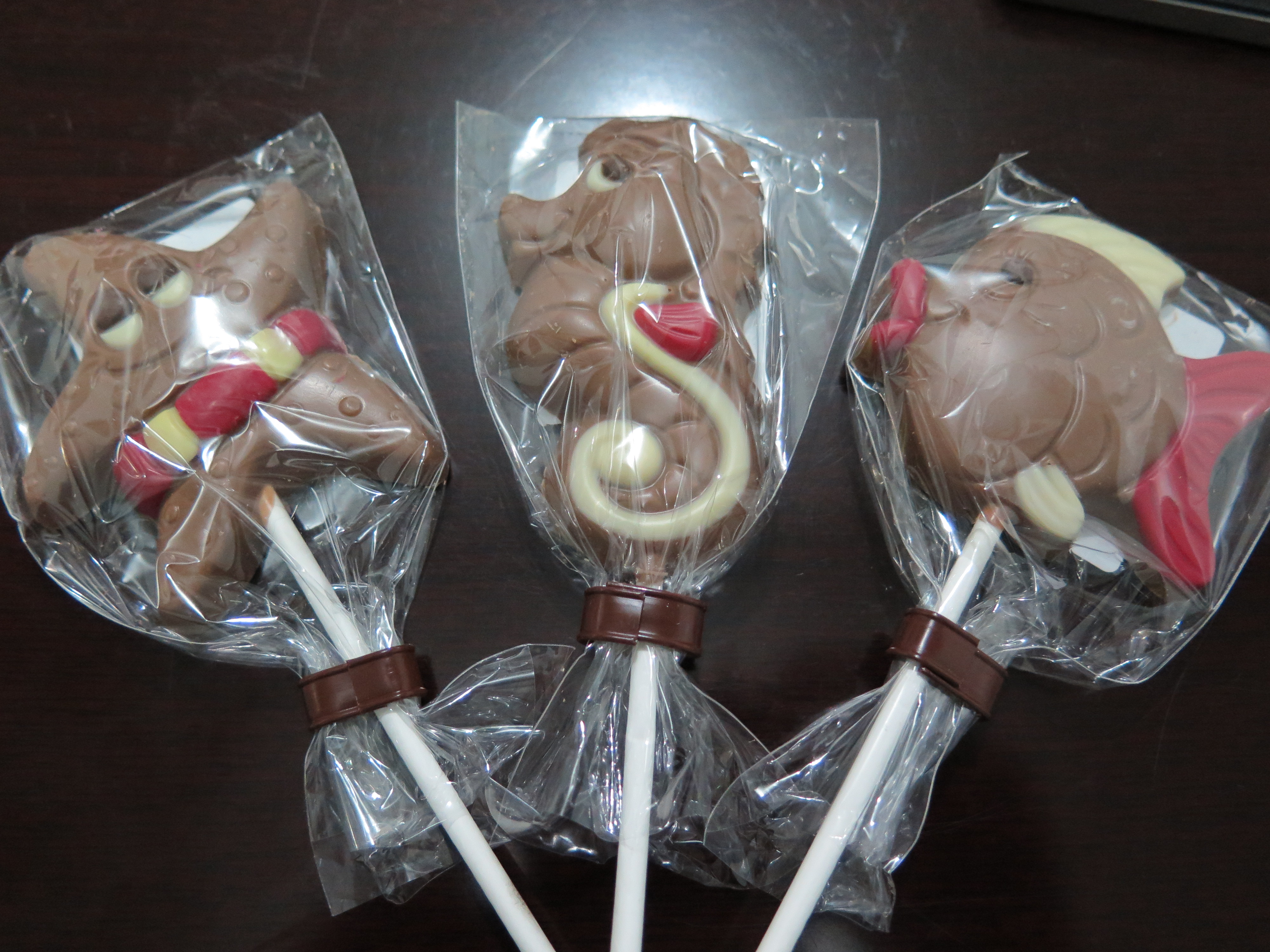

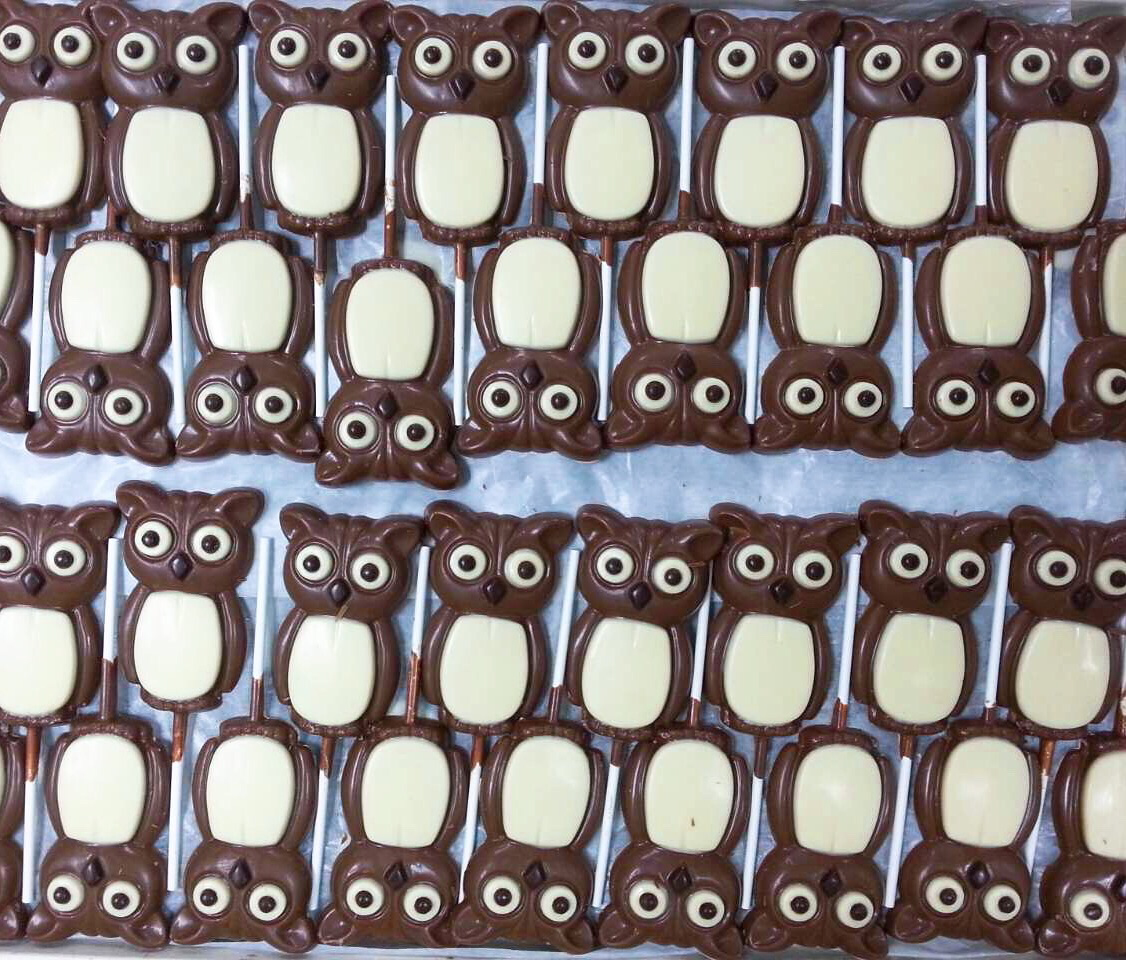

The very famous Belgium brand— BELFINE with paper stick Decoration chocolate.


Our technology and creativity can upgrade the Decorating stick chocolate as following.

Combine with Mixture or One shot technology ;

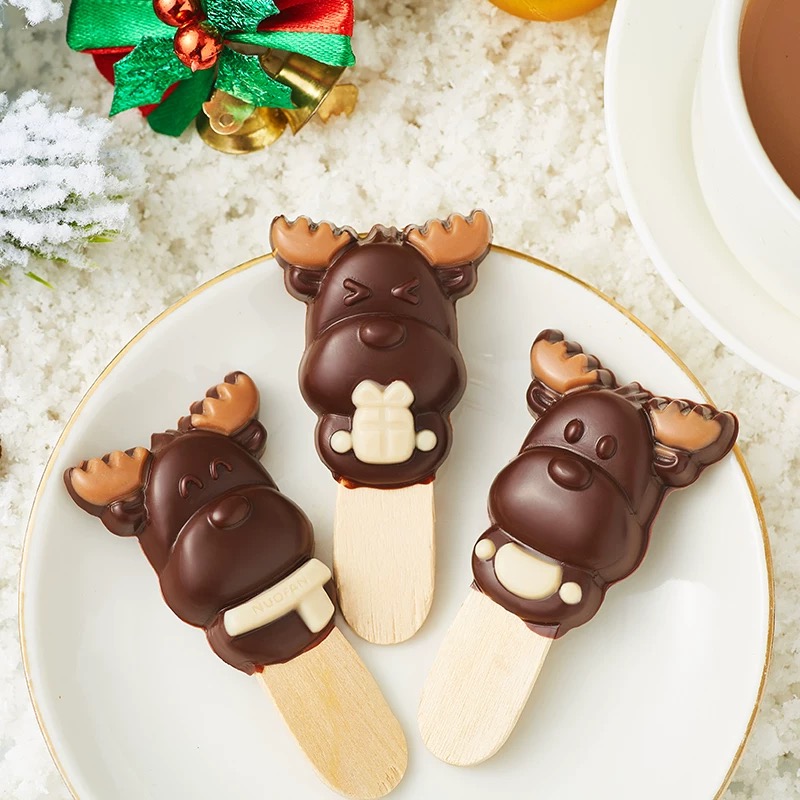

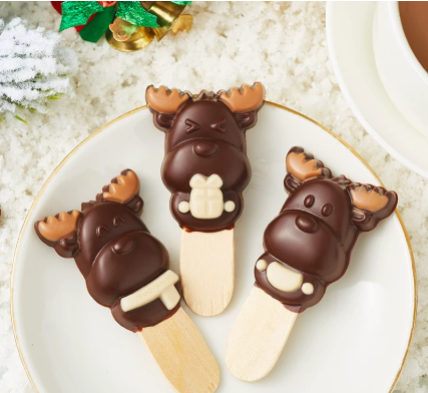

Use different materials of stick, bring more different styles.

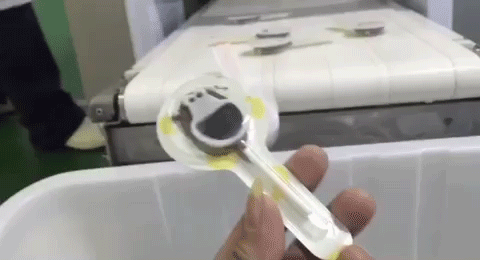

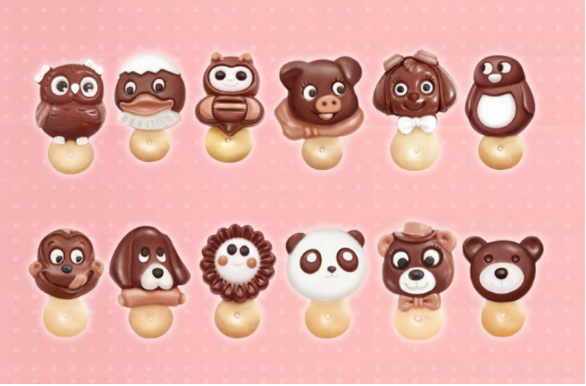

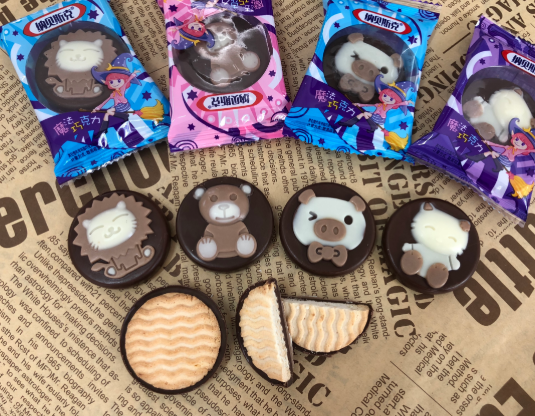

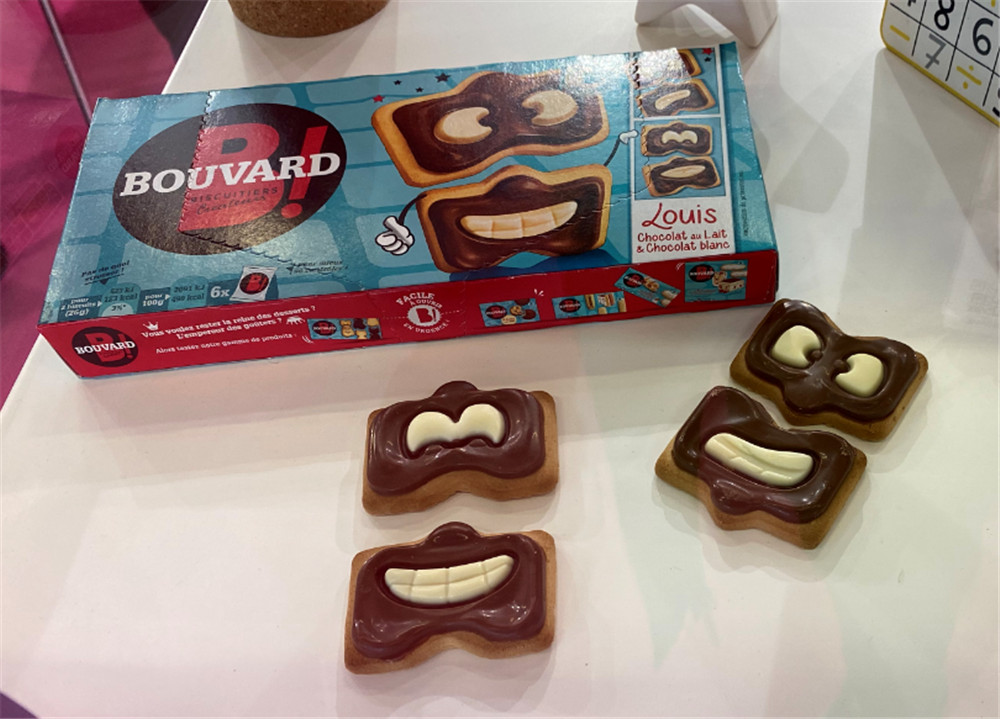

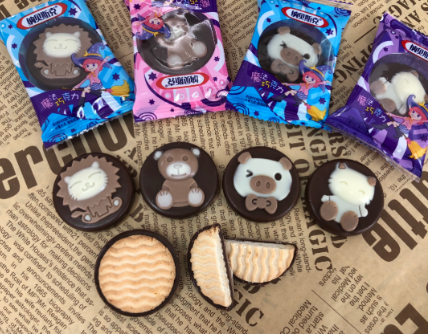

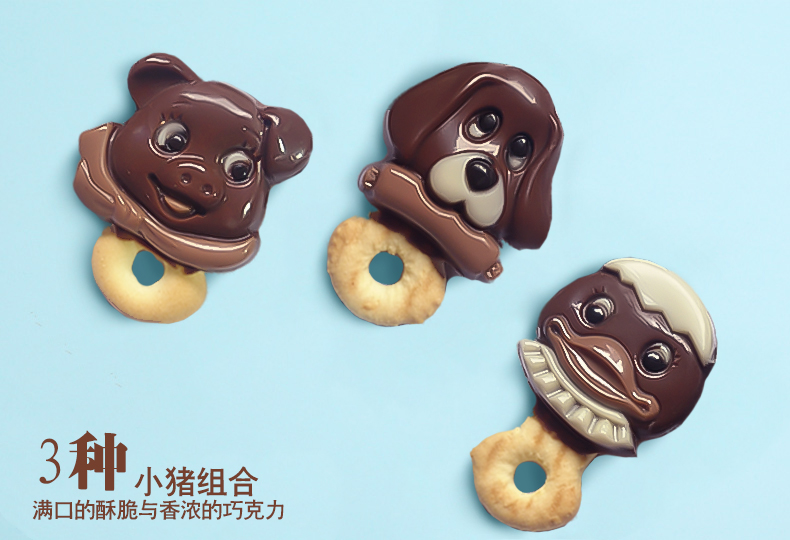

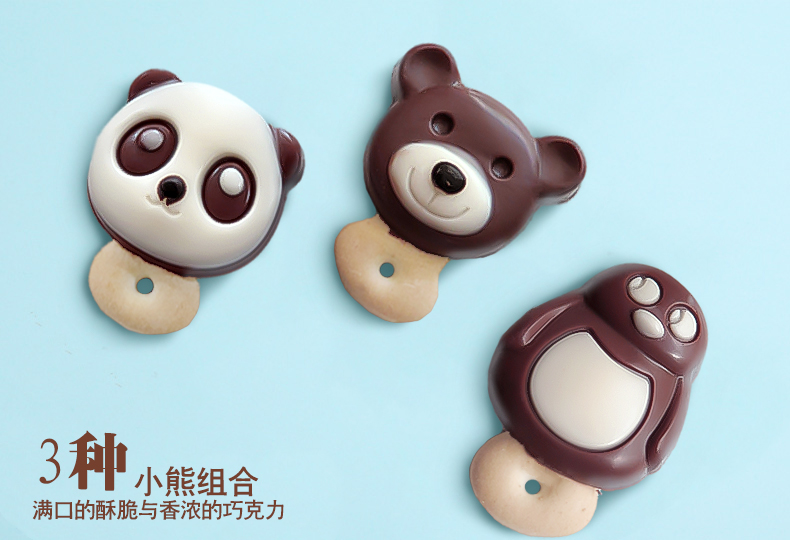

Biscuit as the stick is a great idea.

Rich the taste, reduce the cost, safer for kids.

Product and technology features

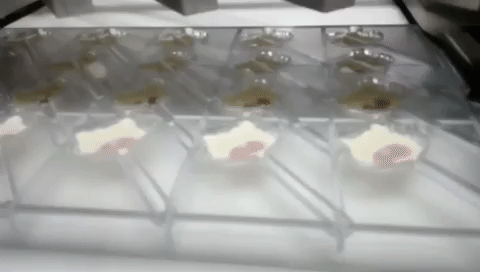

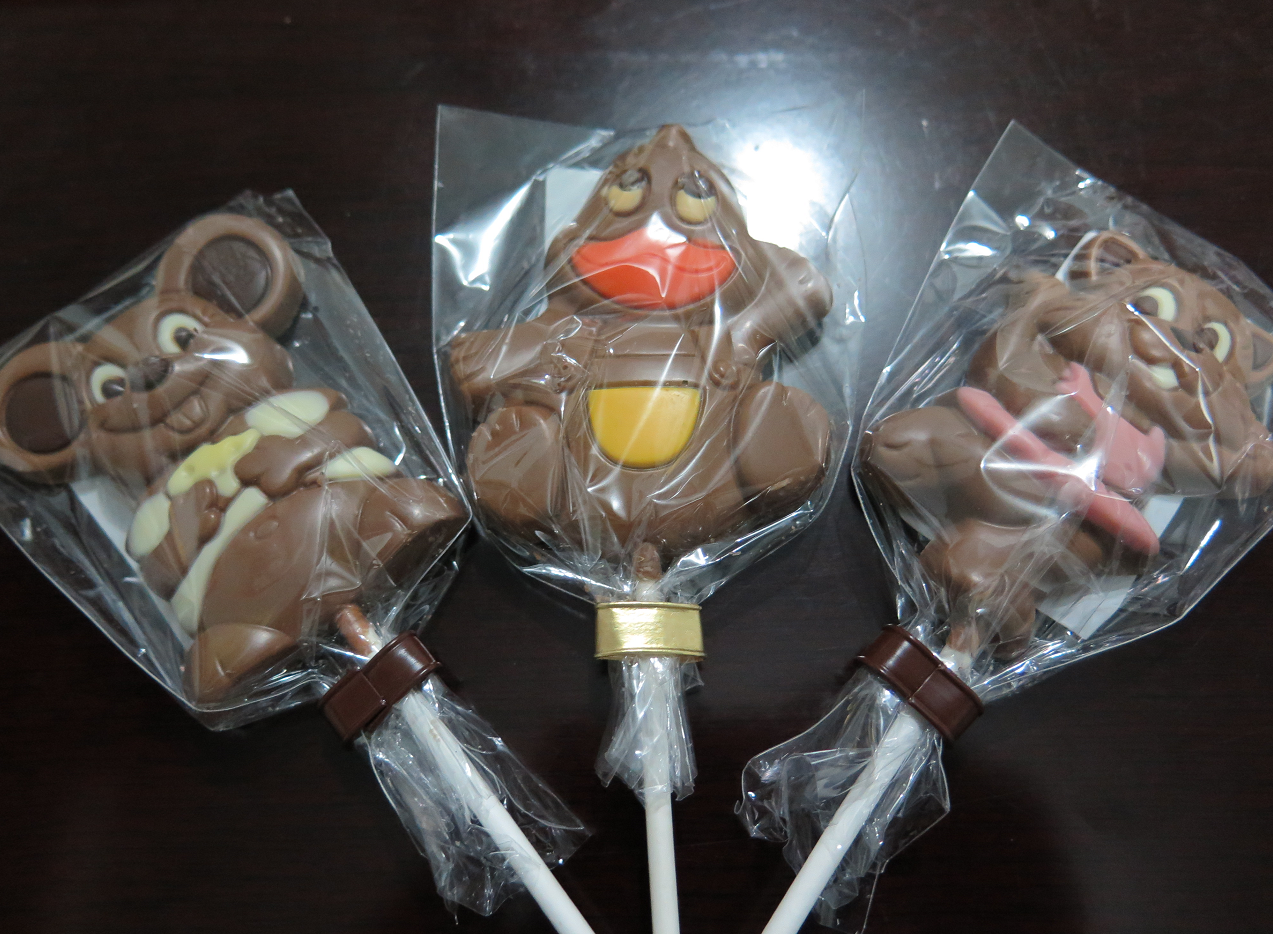

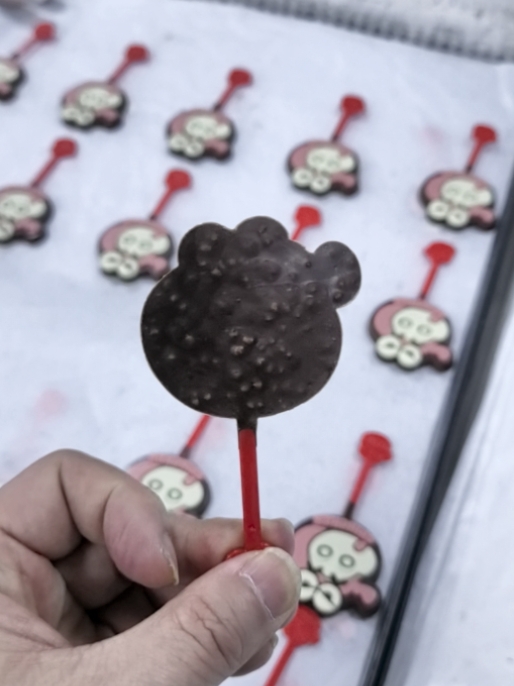

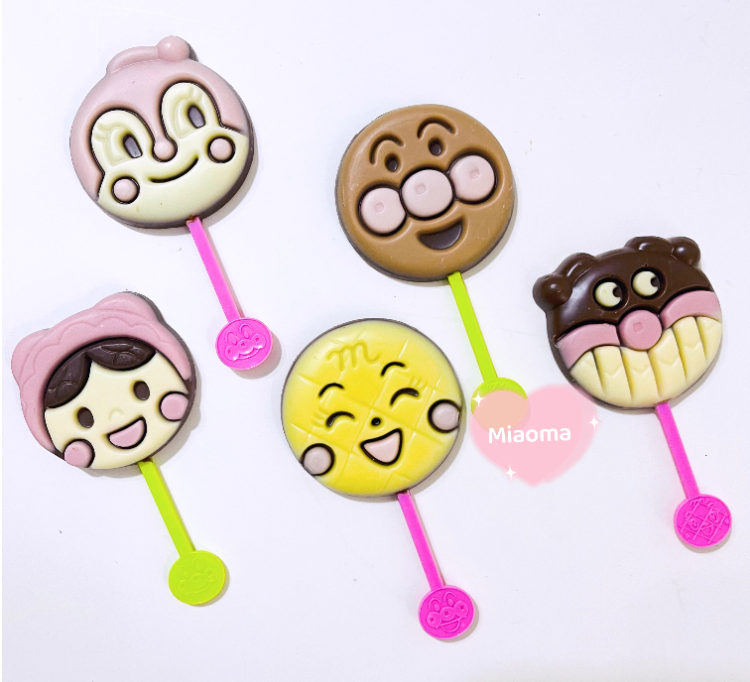

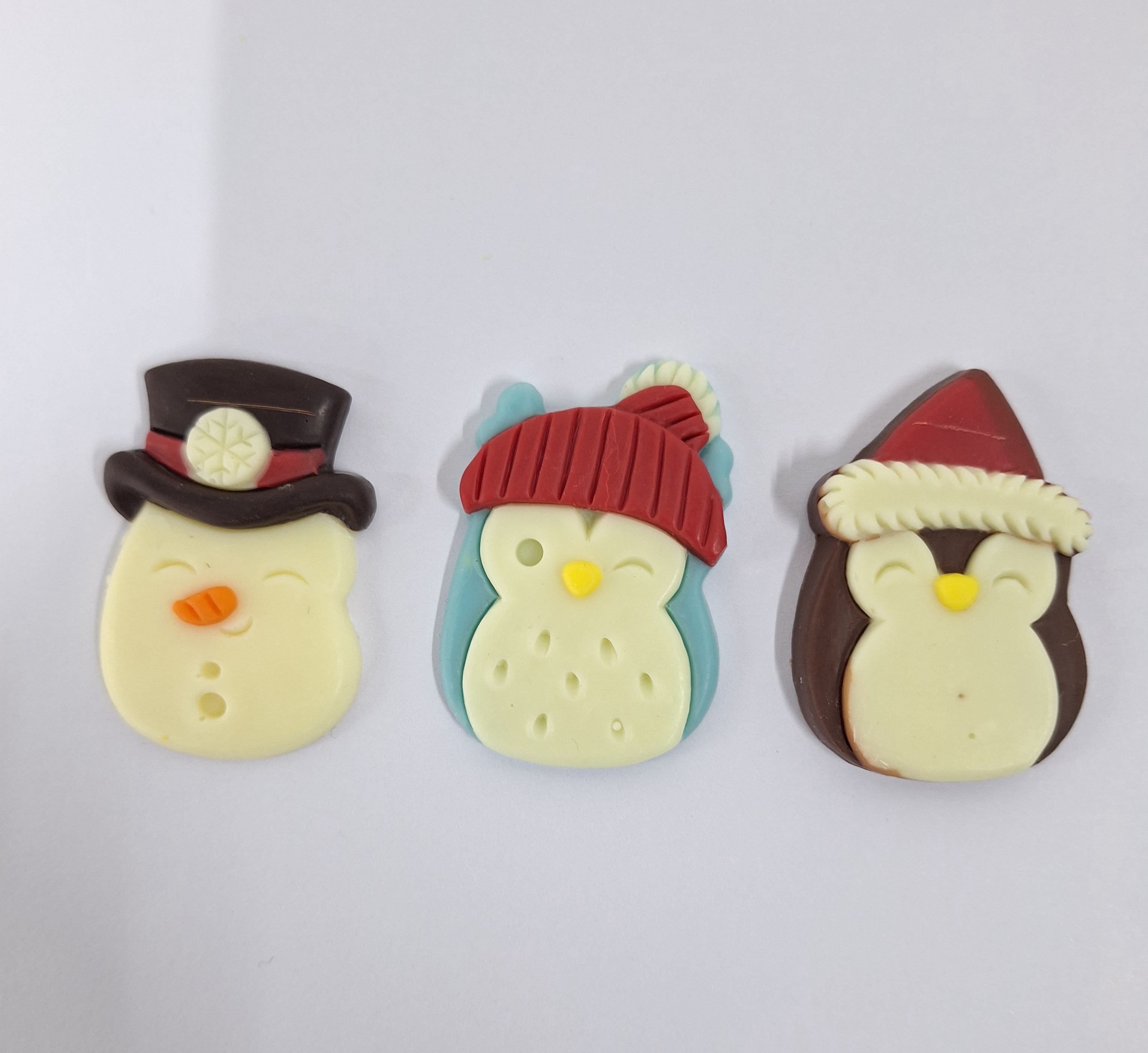

■ Small color lump such as the eyes, nose, ears make the chocolate more vivid.

■ Richer shapes give chocolate more meaning and more consumption scenarios.

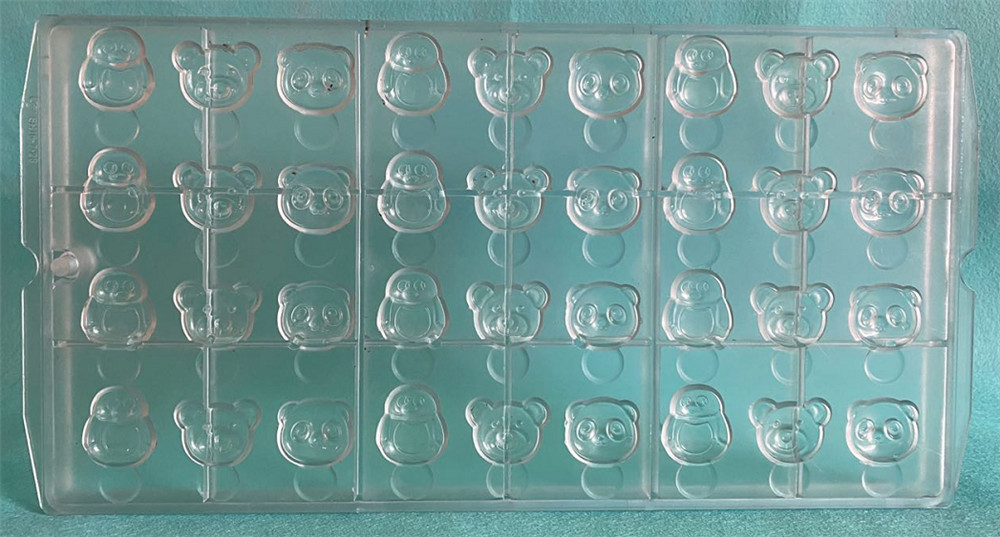

■ 1-3 different shapes can be made in one mold.

■ Our product design team provides customers with more styling and creativity service.

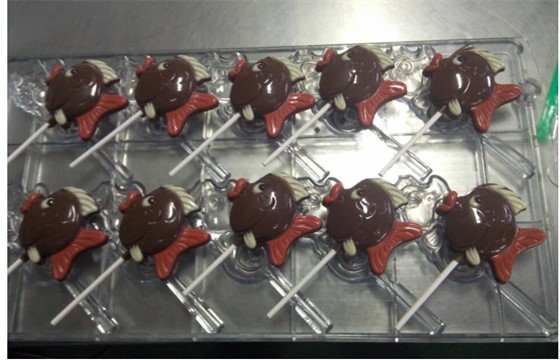

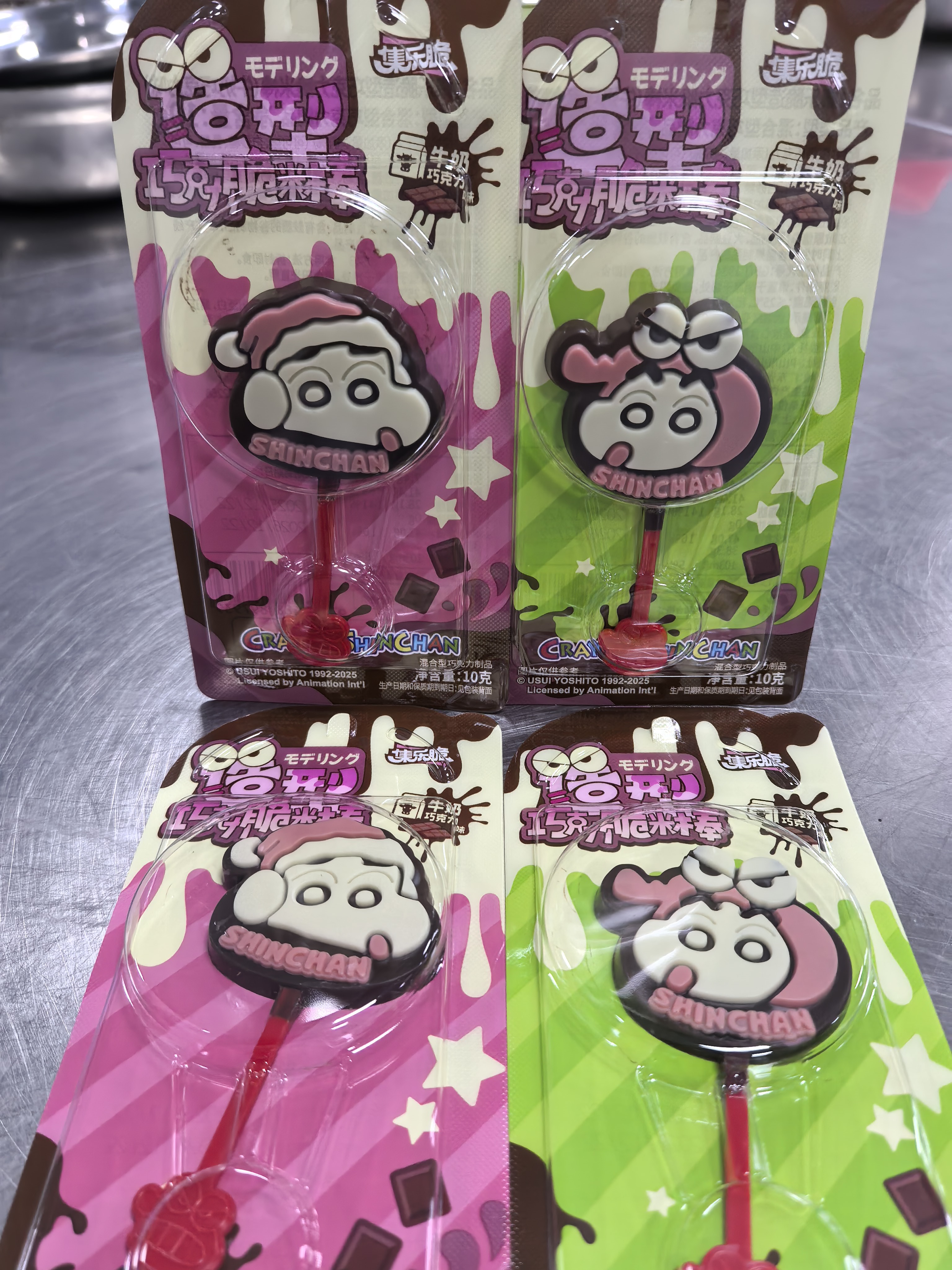

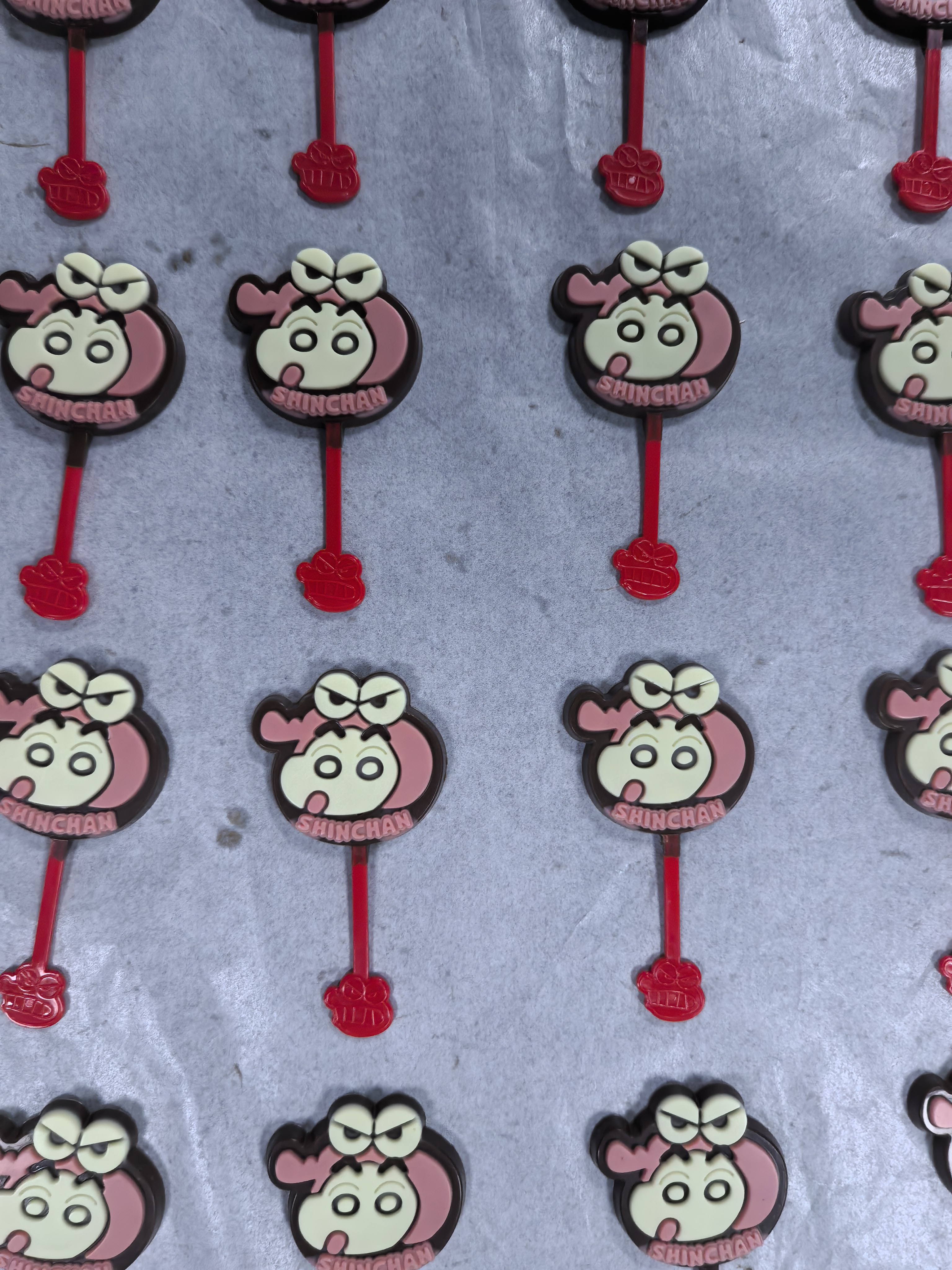

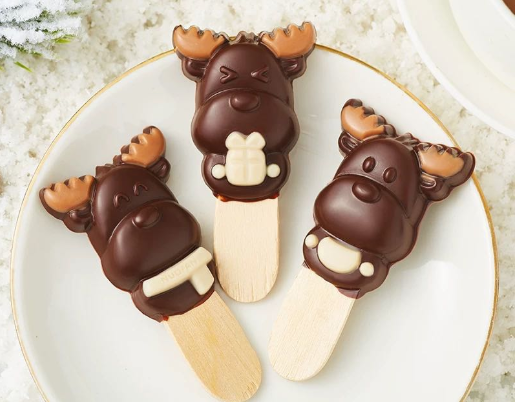

The Decorating with stick chocolate is produced on this similar line.

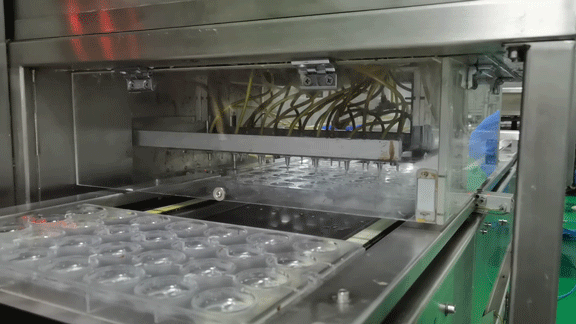

  Decorating 2 colors by g&d Light CNC (Five-Axis Linkage) Chocolate Depositor.

One Decoration Depositor would dressing two colors or four colors once.

Demolding & Traying & Package

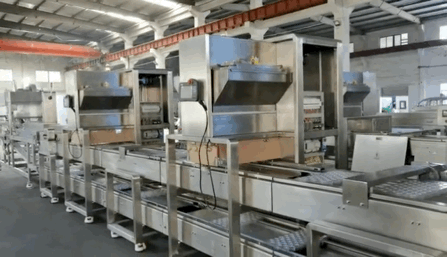

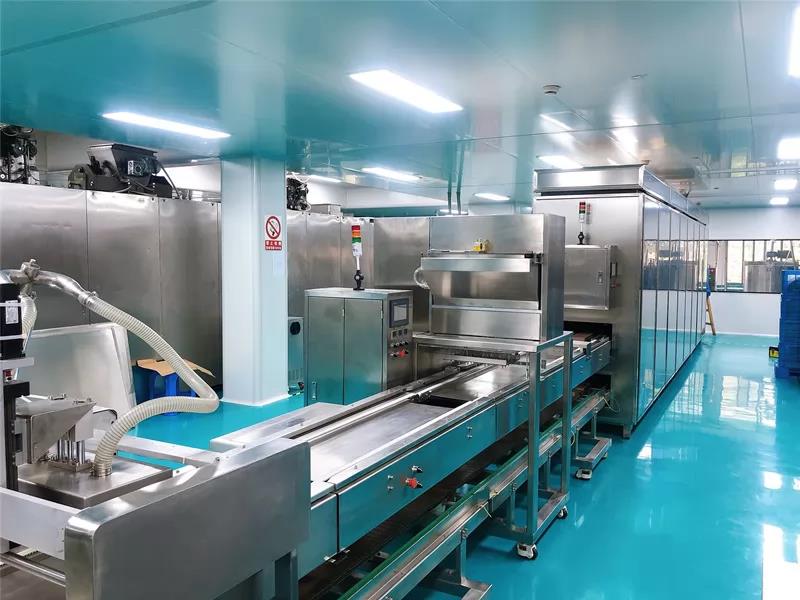

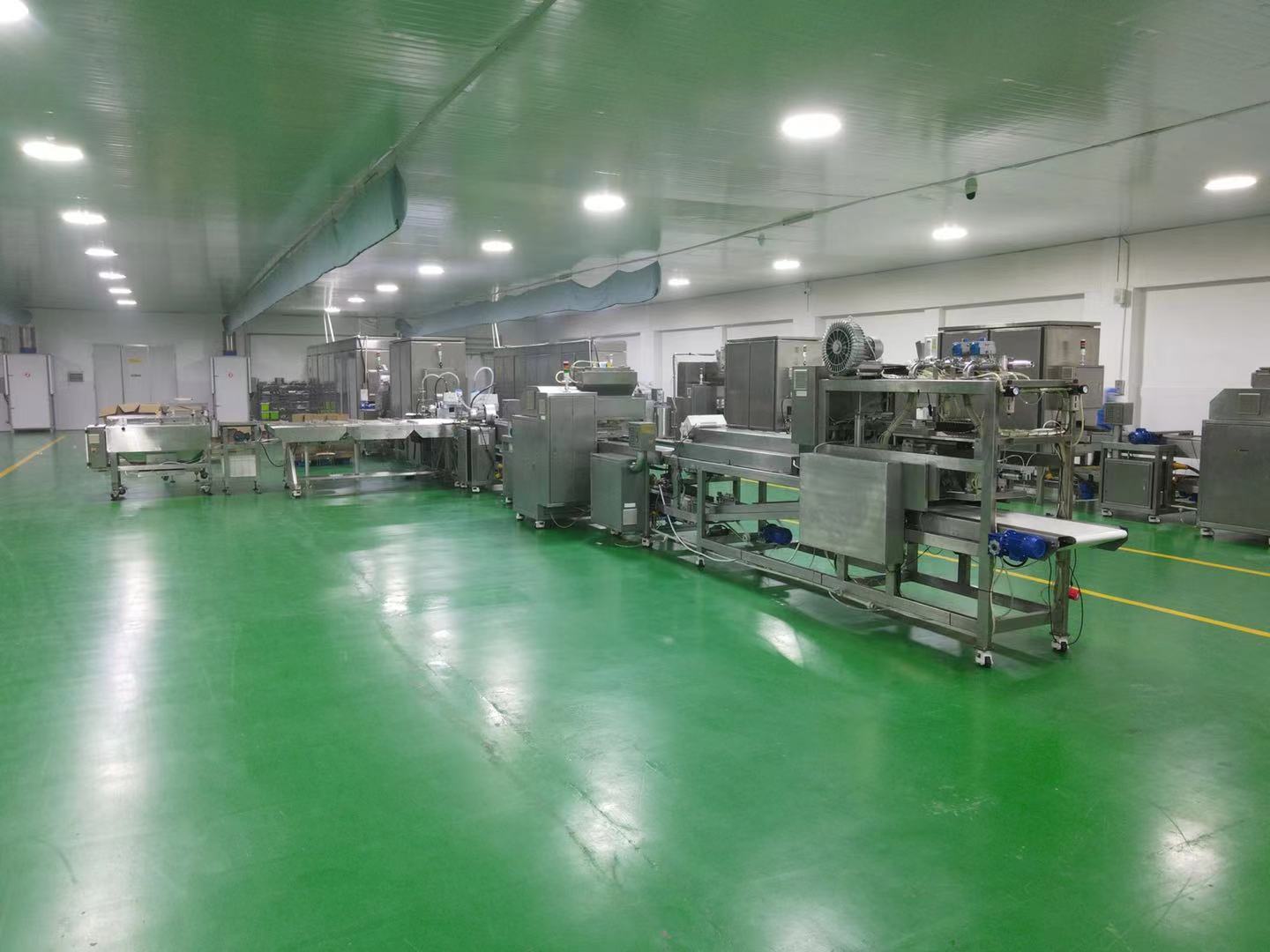

This Decoration chocolate production line looks some different, right?

Yes, it is a modular production line that combines extremely freely.

It can be flexibly combined according to the needs of the production process.

Our technical team is the originator and developer of this technology.

Similar products of Mars, Lego(China) have been produced by this series lines with stick.

Let's take a look at the special features of this production line

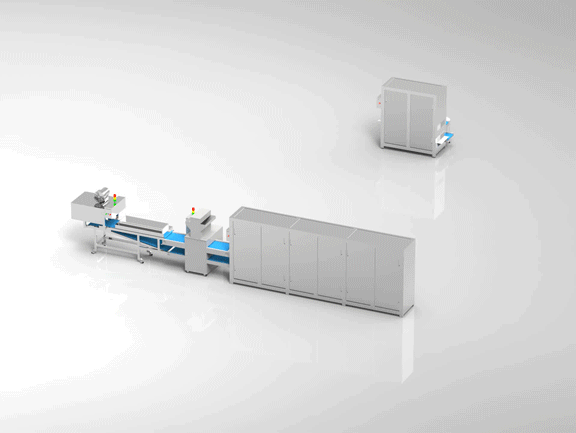

■ It is "Linear Modular Design". The magic of this design is that it enables this molding line very flexible and can almost make all the chocolate available today and in future.

■ The space occupied of production line is only 50% of the ring modular equipment, the same workshop will create more capacity for users.

■ The production line adopts CNC decoration technology, and the energy consumption is only about 65% of the heavy CNC production line, which saves considerable use cost for users.

■ The flexible design enables the production line to simply change different types of molds and easy to change the program. The Decoration depositor would store over 100 different styling programs inside.

■ The rich functional modules support the future development of users and enables them to flexibly expand the required functions and capacity.

■ Full Automatic Stick feeder is able to feed the stick horizontal and vertical and the paper-stick, Profiled-stick, Wooden-stick, Biscuit-stick,etc could be able to use on this Multi-function stick feeder.

■ Advanced design and mature technology makes installation and debugging very easy, users can easily handle equipment installation and production;

■ There are 2 types production line: 5-6 molds/min and 10-12 molds/min (according different colors and shapes, 36pcs in a mold, 6g)

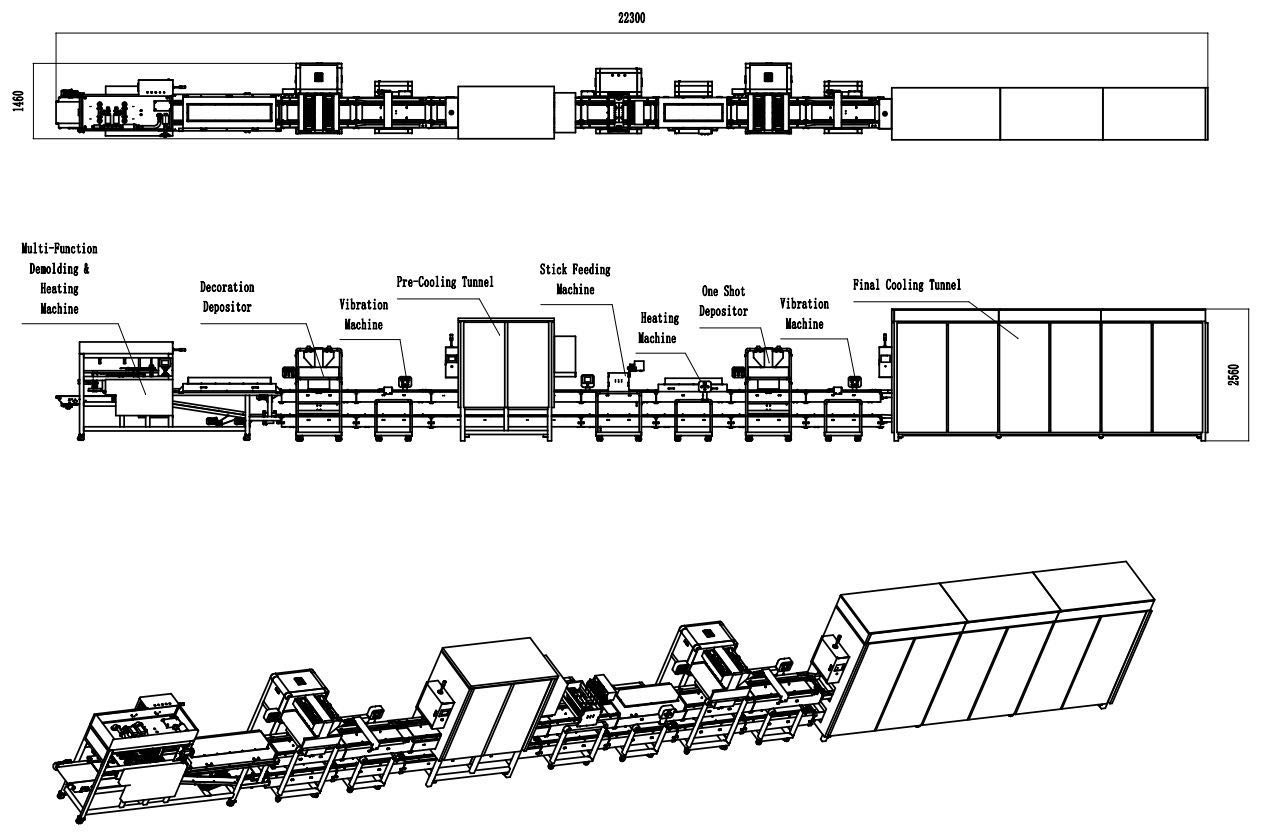

Let's take a look at what equipment is made up of the production line and what are the characteristics of these equipment?

Multi-function Demolding Machine

■ Multi-function: vacuum demoulding, mold tapping and automatic packing to meet the demoulding needs of different products of users.

■ Fast demoulding speed: max 14mold/m, bigger capacity is also available.

■ Heating machine: mold heating, accurate temperature controlling, sufficient hot air circulation, the parameter setting is flexible and convenient.

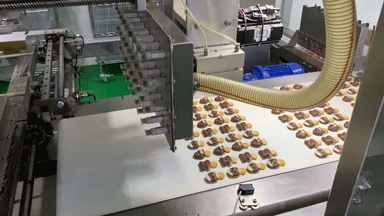

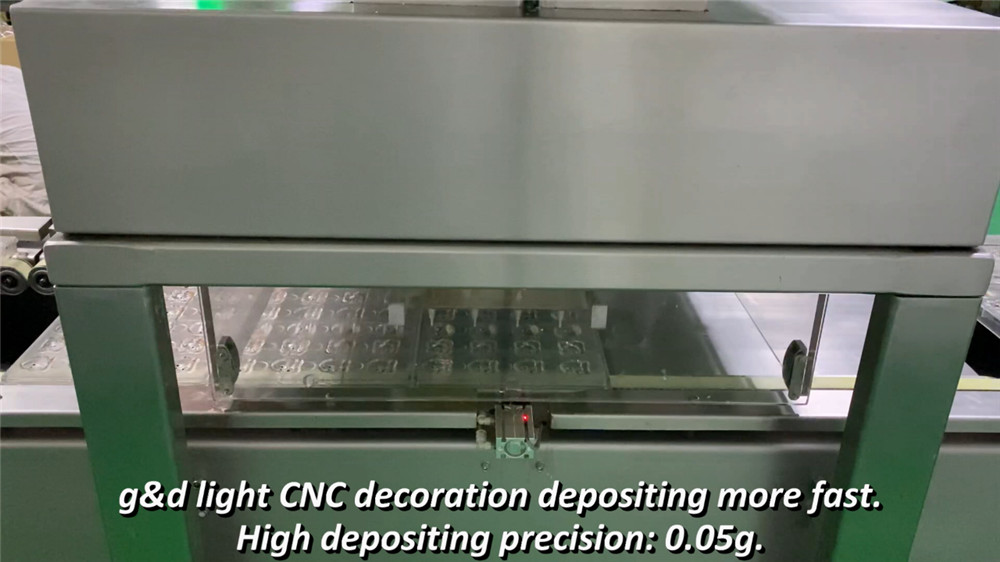

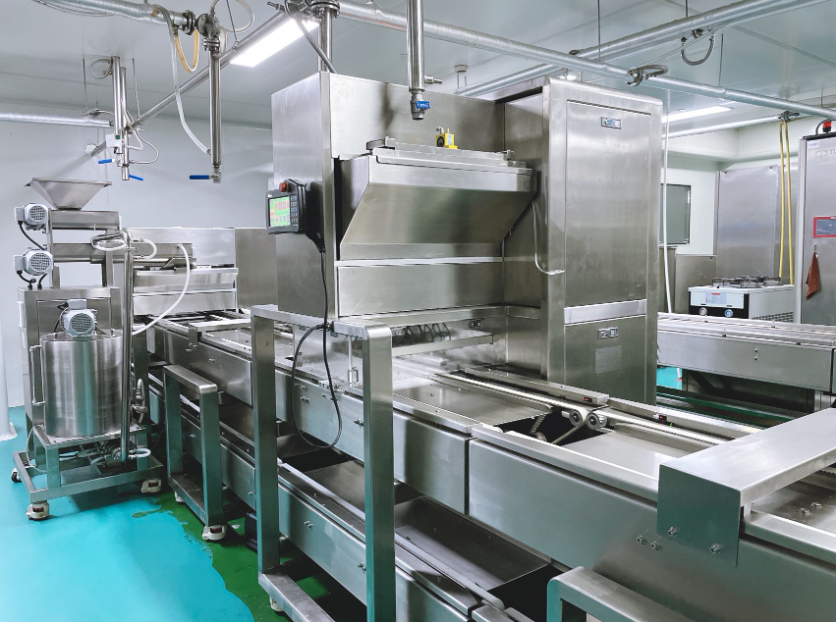

Multi-function Decoration Depositor

■ Compared with 200kg heavy depositor moving parts, the weight of the light CNC depositor moving parts is less than 10 Kg, and the running is light and fast, the energy consumption and use cost are greatly reduced, and the reliability is greatly improved.

■ The standard depositor is equipped with 48 sets pistons, depositing accuracy can be up to ±0.1g. Bigger capacity is also available.

■ Decoration speed is normally 6-12 mold/min, it varies according to the different shapes and decoration colors.

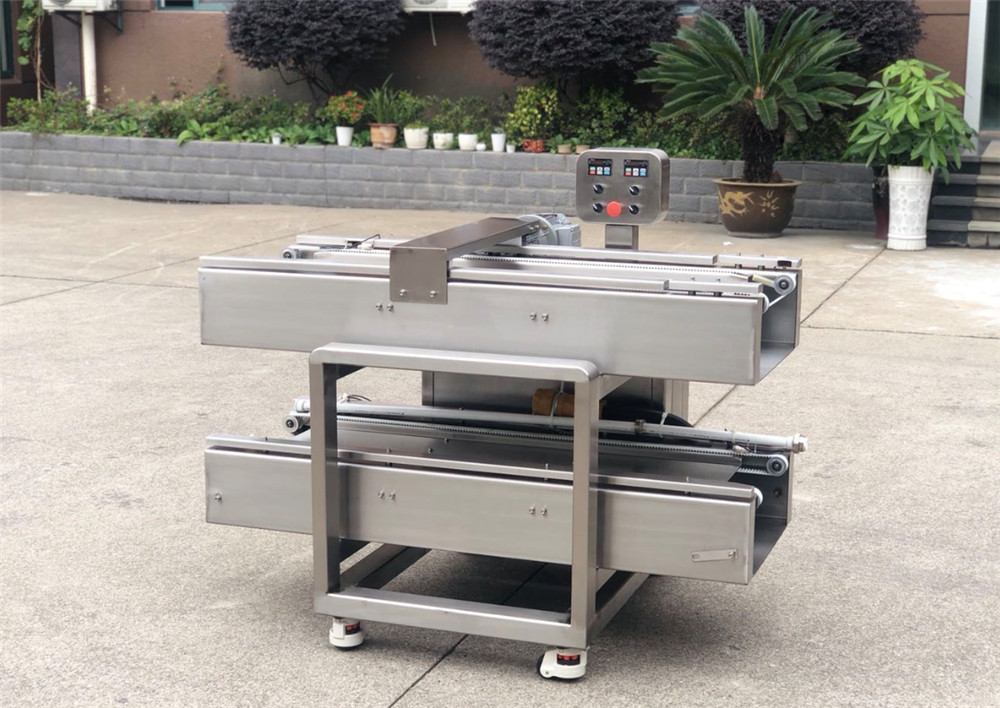

Vibration Machine

■ Vibration and swing, two ways for choice to balance material according to different material.

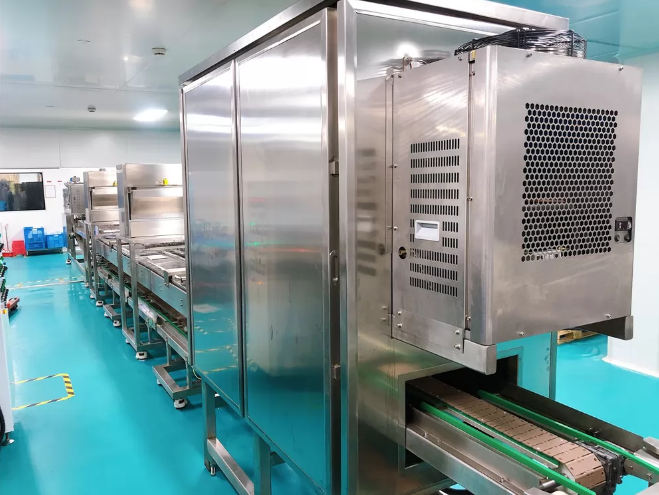

Pre-Cooling Tunnel

■ Using lifting technology, customer can choose pre-cooling or pass it directly if the product do not need Pre-cooling;

■ All stainless-steel material, 48 molds can be accommodated, pre-cooling temperature, operating speed and other parameters can be set as request.

■ Refrigeration integrated machine, when recombining the production line, no need to connect another pipeline, the machine can be re-positioned flexibly.

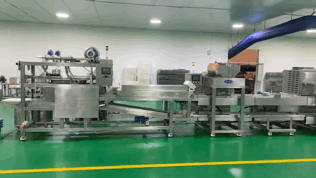

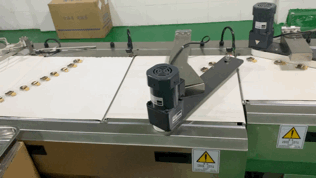

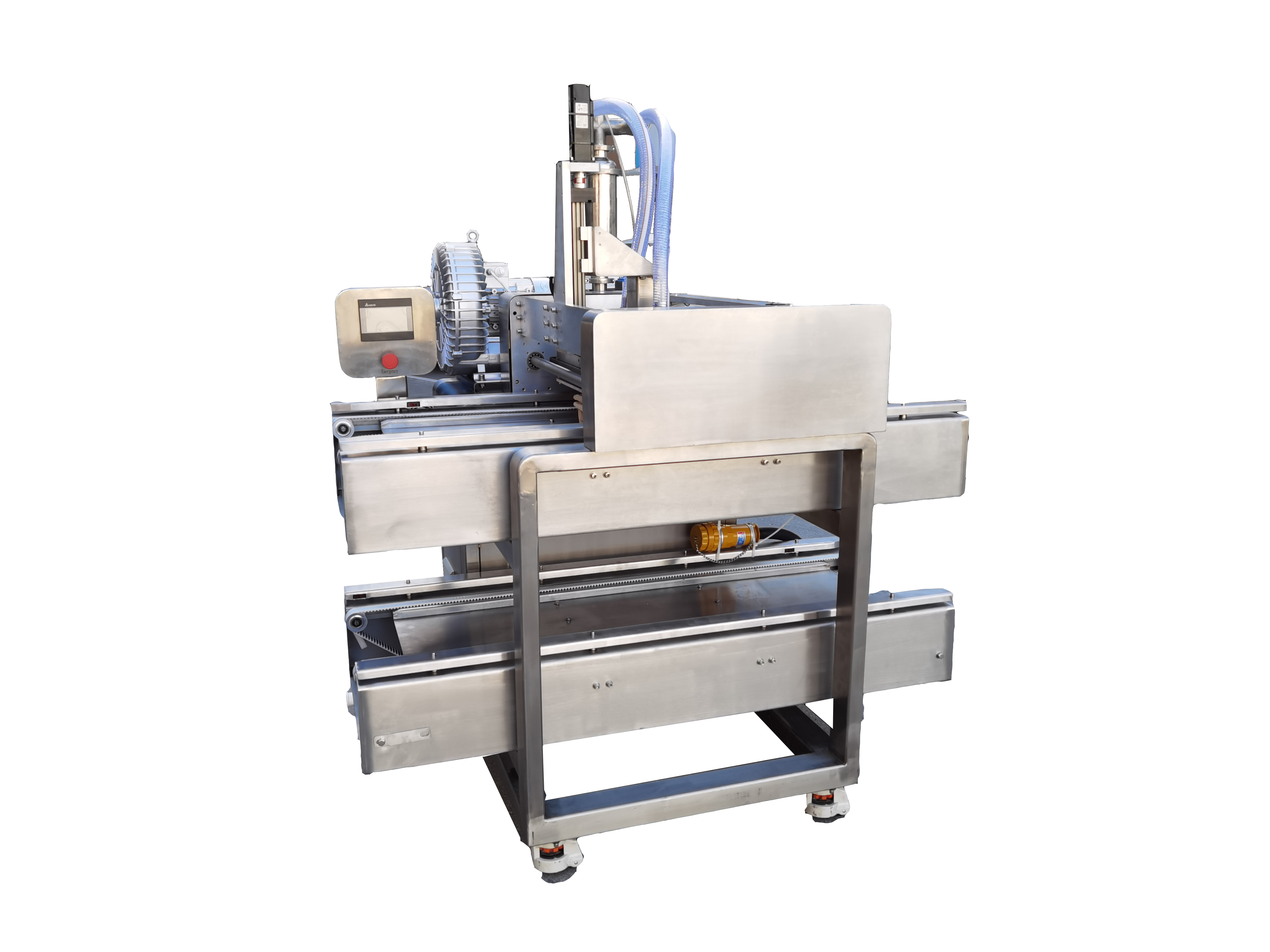

Full Automatic Stick Feeder to feed all kinds of Sticks horizontally and vertically.

■ Simply change of the upper feeding head to fit different type of sticks

■ Feeding the sticks in horizontal or vertical Mode

■ The layout of the stick groove on the mold would be very flexible and be highly efficient used.

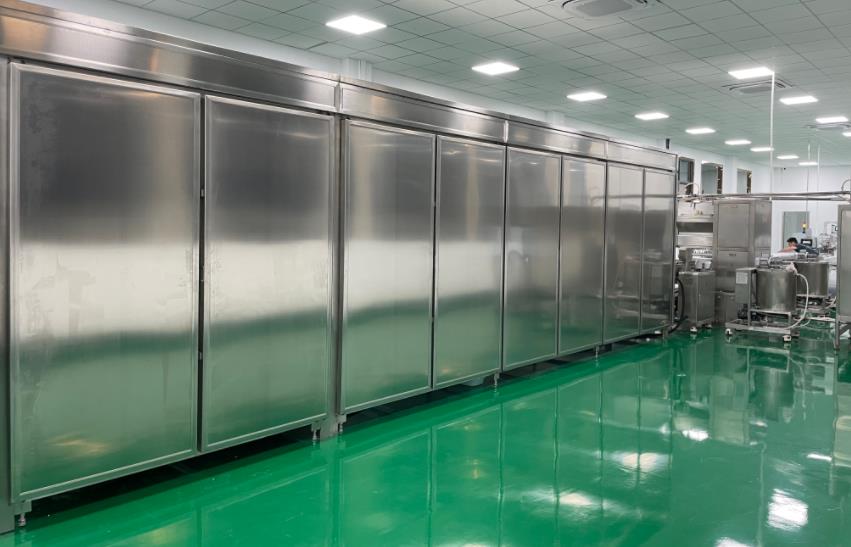

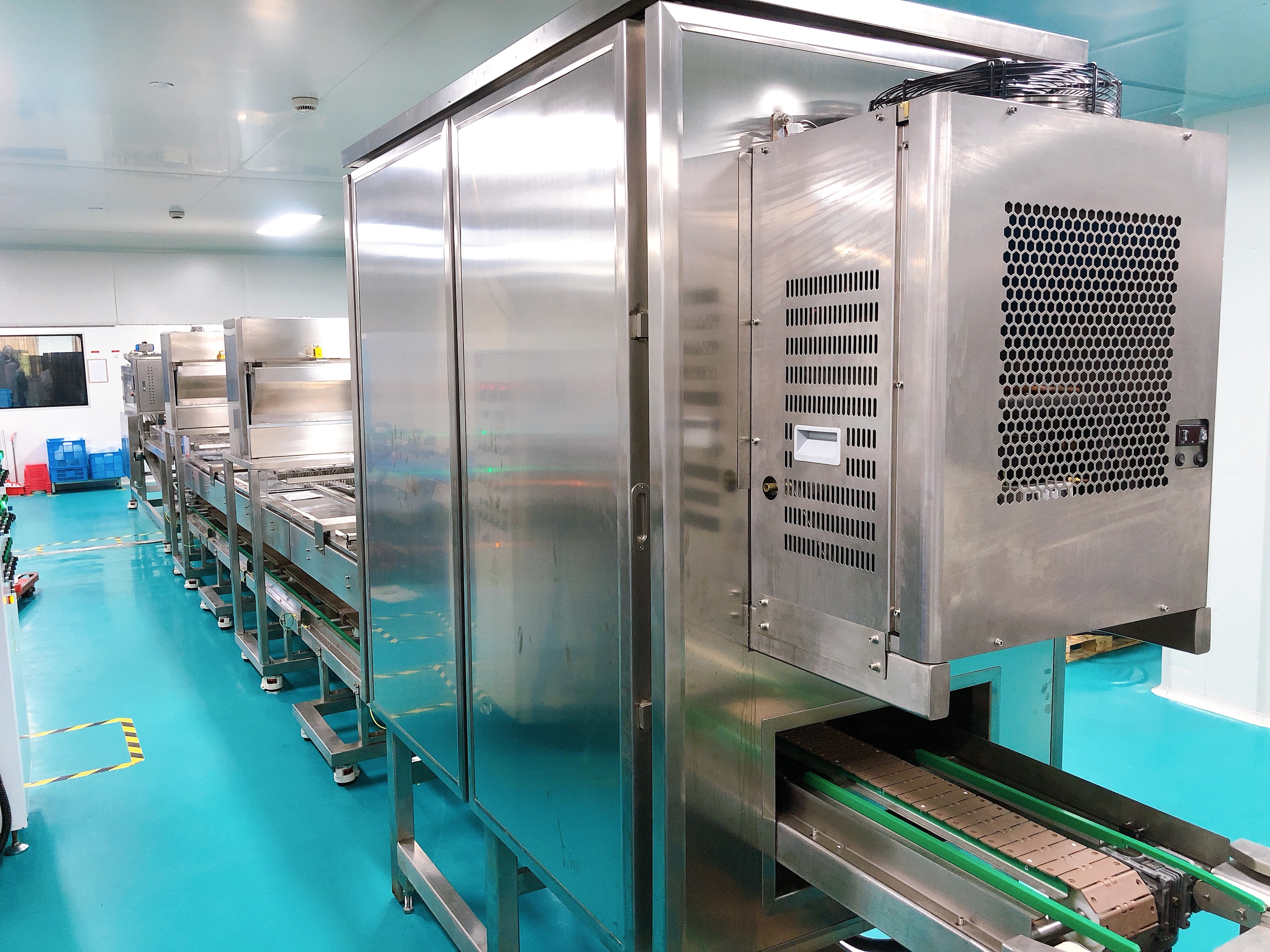

Energy Saving Final-Cooling Tunnel

■ Lifting structure and advance design concept, this machine is suitable for different height product.

■ Good humidity controlling enable it is good for biscuit chocolate making.

■ High efficiency, max 14 mold/min, excellent refrigeration and energy saving.

No. Capacity
Size(m)      Power
Products quantity(pcs)/mold Shapes(pcs)/mold
1 5-6 22.3X1.46X2.56    38.4 36 1-3
2 10-12 29.1X1.46X2.56    43.1 36 1-3

You must want to know what else products can be made on this line?

This flexible combination tech would make sure the chocolate production line will never be obsolete through adding more functionally Module machines.

One shot, decoration, one shot & decorating chocolate can be made by this line only need change another depositing plate and demoulding plate.

One shot, Decoration, Mixture & decorating chocolate, one shot & decorating chocolate can be made by this line only need change another depositing plate and demoulding part.

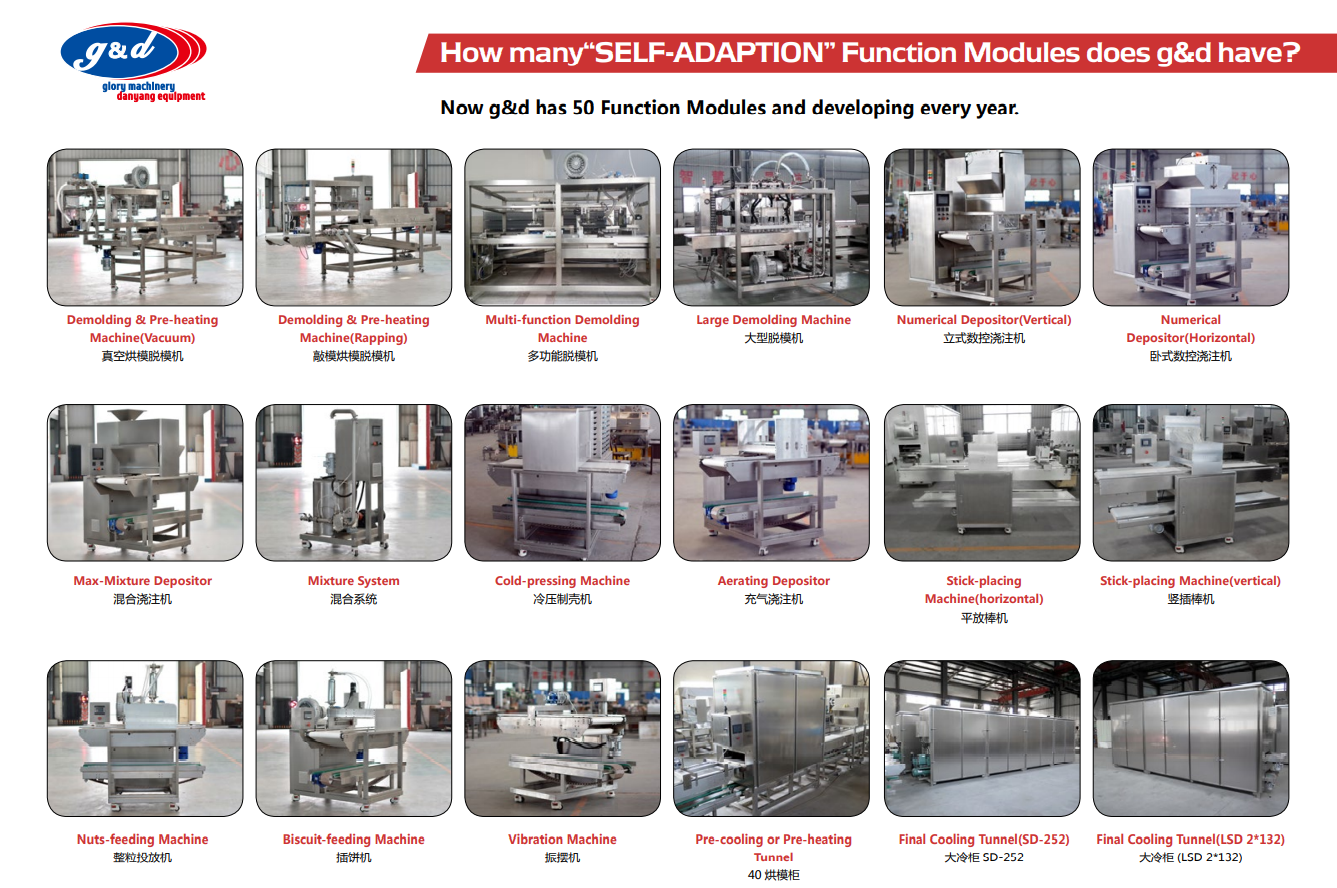

We also have more multi-functional modular machines to help users realize the desired product.

These machines can easily enter the existing production line;

Yes, this production line will be your product innovation platform,

And our technology and innovation ability will keep the production line advanced;

For more information about the production line, or you want to visit the production process on line. Please contact our export manager.

Win-win the future with us !
