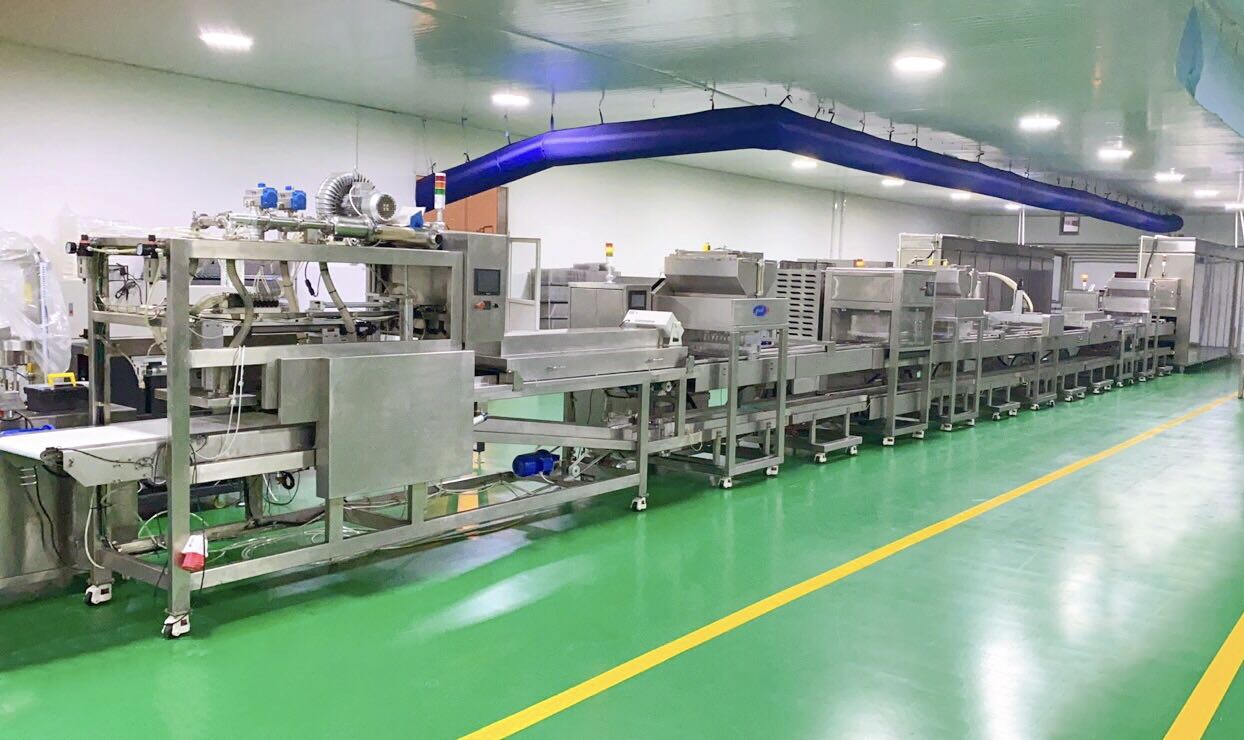

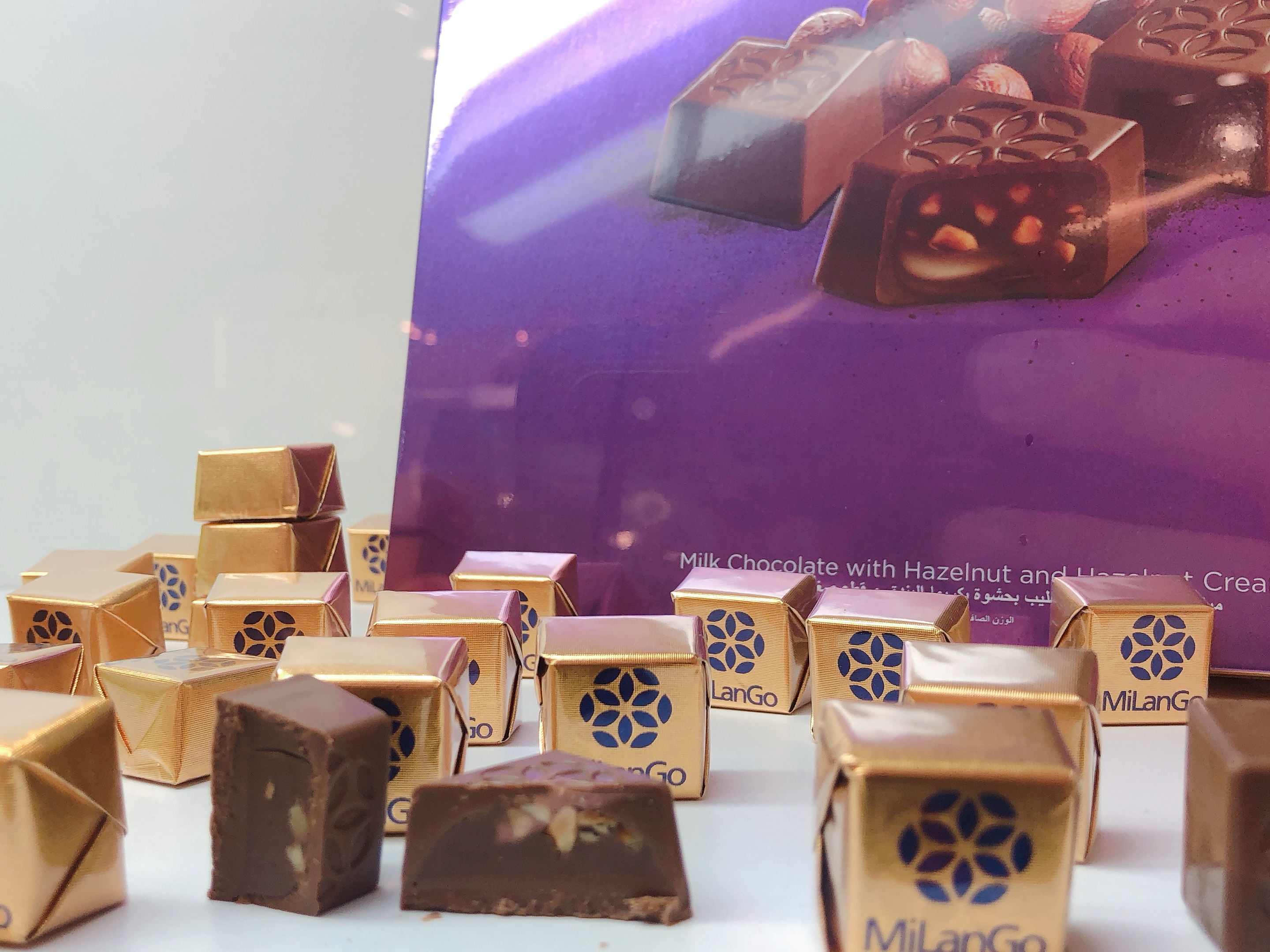

MIXTURE FILLING chocolate shell molding line(MF-SM)

UPGRADING is one of the easiest ways to innovate successfully.

Do you know how to make soft chocolate with mixed particles? Let's have a look!

It is Milka MIXTURE FILLING chocolate.

It is Ritter Sport MIXTURE FILLING chocolate.

Our technology and creativity can upgrade MIXTURE FILLING chocolate as following.

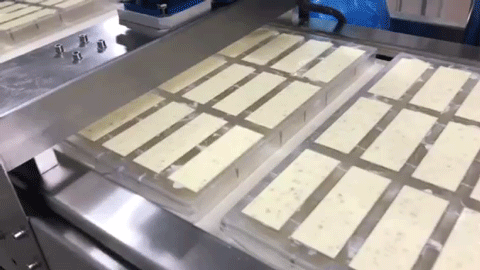

 Decoration & MIXTURE FILLING

Jam & Butter MIXTURE FILLING

Jelly & Sesame MIXTURE FILLING

■ Mix many kinds of materials to make the chocolate taste better.

■ The soft filling chocolate gives an extraordinary feel in mouth.

■ High mixing ratio improves chocolate taste.

■ The combination of decoration ;technology can make the product better.

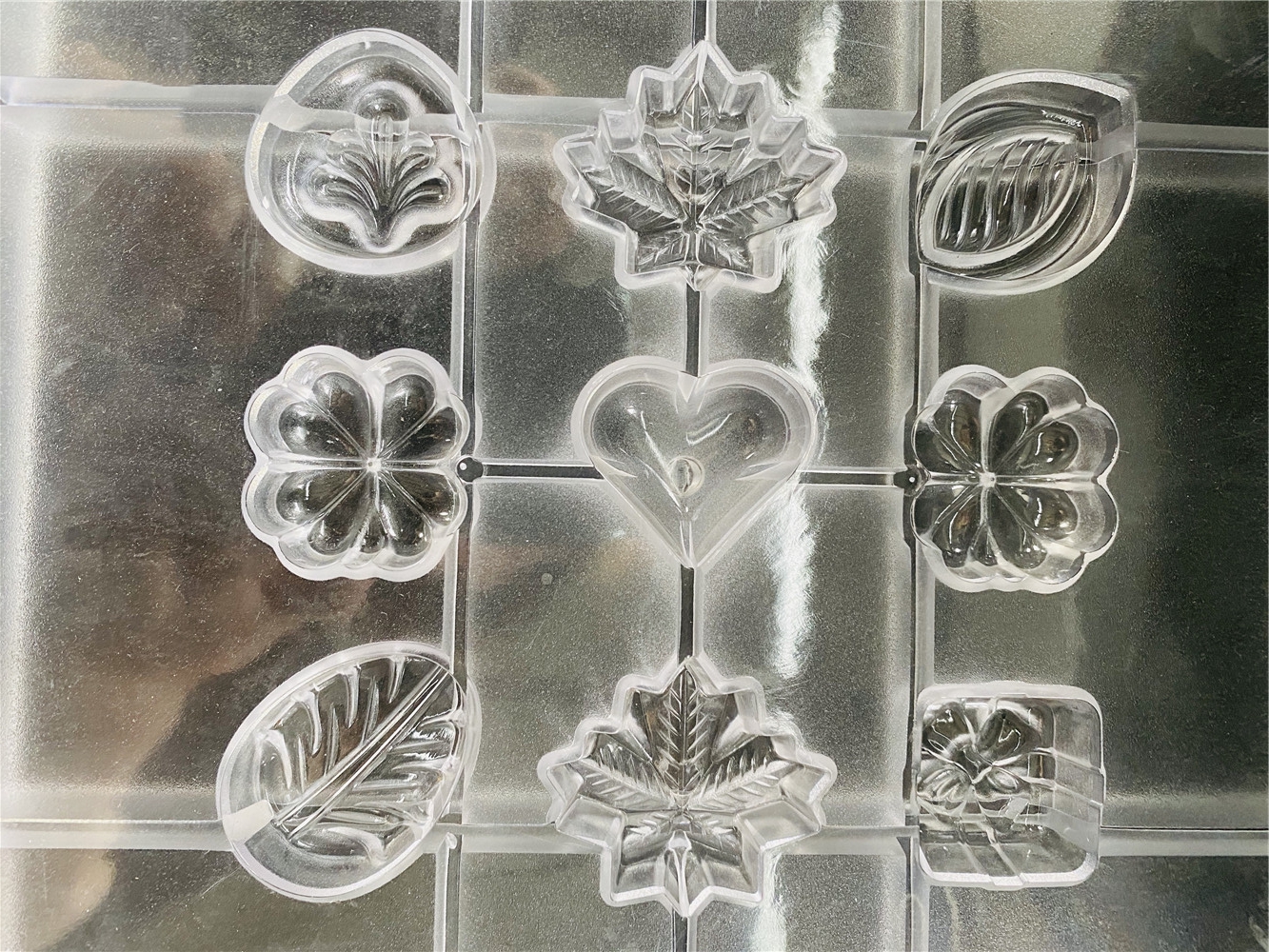

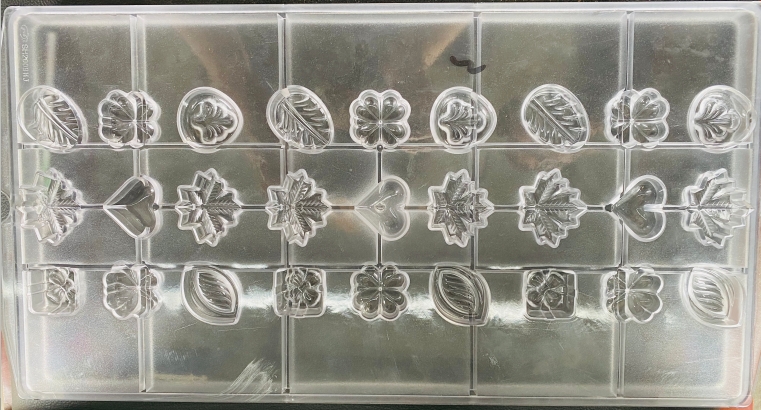

Many shapes can be placed in a mold if the weight of chocolate is same.

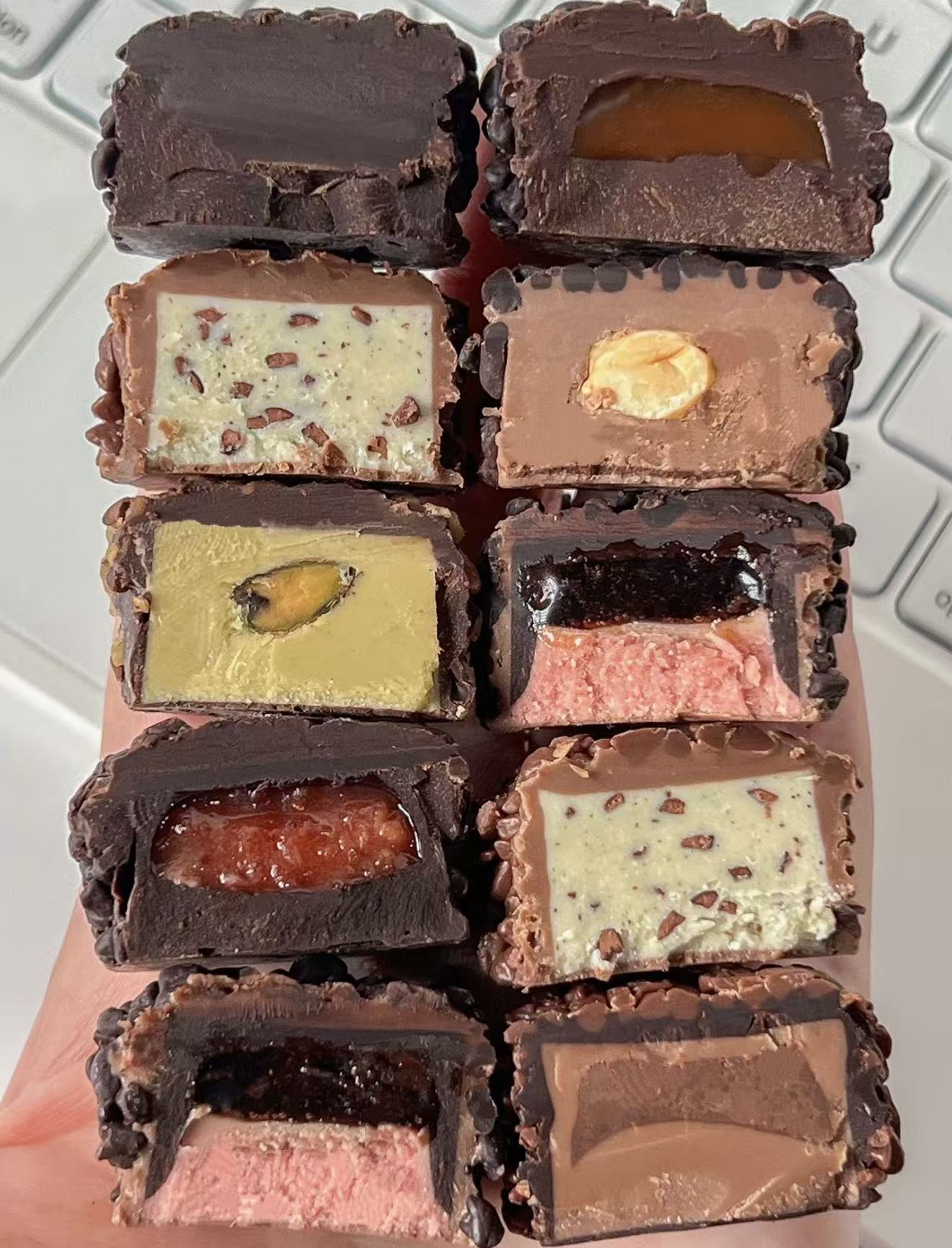

Many MIXTURE FILLLING chocolate is made on this line.

Shell molding Technology

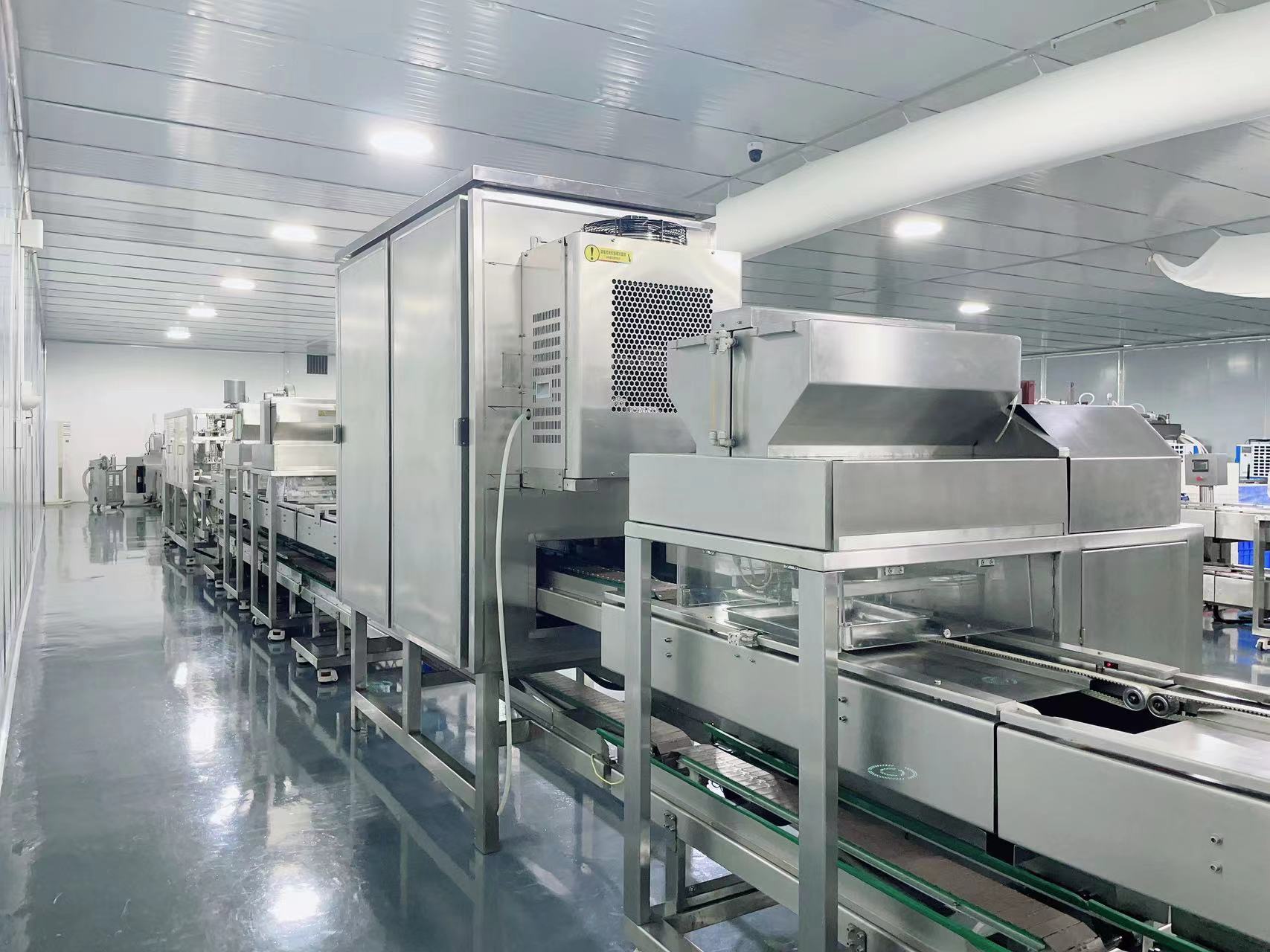

This MIXTURE FILLING chocolate production line looks some different, right?

It can be flexibly combined according to the needs of the production process

Our technical team is the originator and developer of this technology.

Similar products of Mars, Hershey and Godiva have been produced by this series lines.

Let's take a look at the special features of this production line

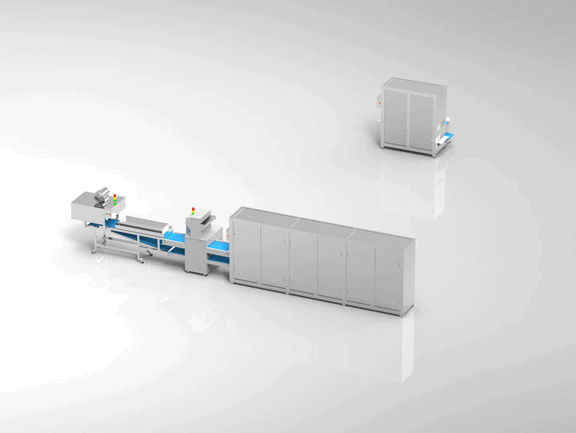

■ It is “Linear Modular Design’’. The magic of this design is that it enables this molding line very flexible and can almost make all the chocolate available today and in future.

■ The space occupied of production line is only 50% of the ring modular equipment, the same workshop will create more capacity for users.

■ The production line adopts CNC depositing technology, and the energy consumption is only about 65% of the heavy CNC production line, which saves considerable using cost for users.

■ The reliable and uniform cold air transferring makes the Shell molding work more efficiently, and the special structure design reduce requirements of Cold press for environmental humidity.

■ Mixture depositor can adapt to 8 mm-10mm of large particle, mixing ratio is very good.

■ The rich functional modules support the future development of users and enables them to flexibly expand the required functions and capacity.

■ Advanced design and mature technology makes installation and debugging very easy, users can easily handle equipment installation and production.

■ There are 2 types production line: 5-6 molds/min and 10-12 molds/min (according different colors and shapes)

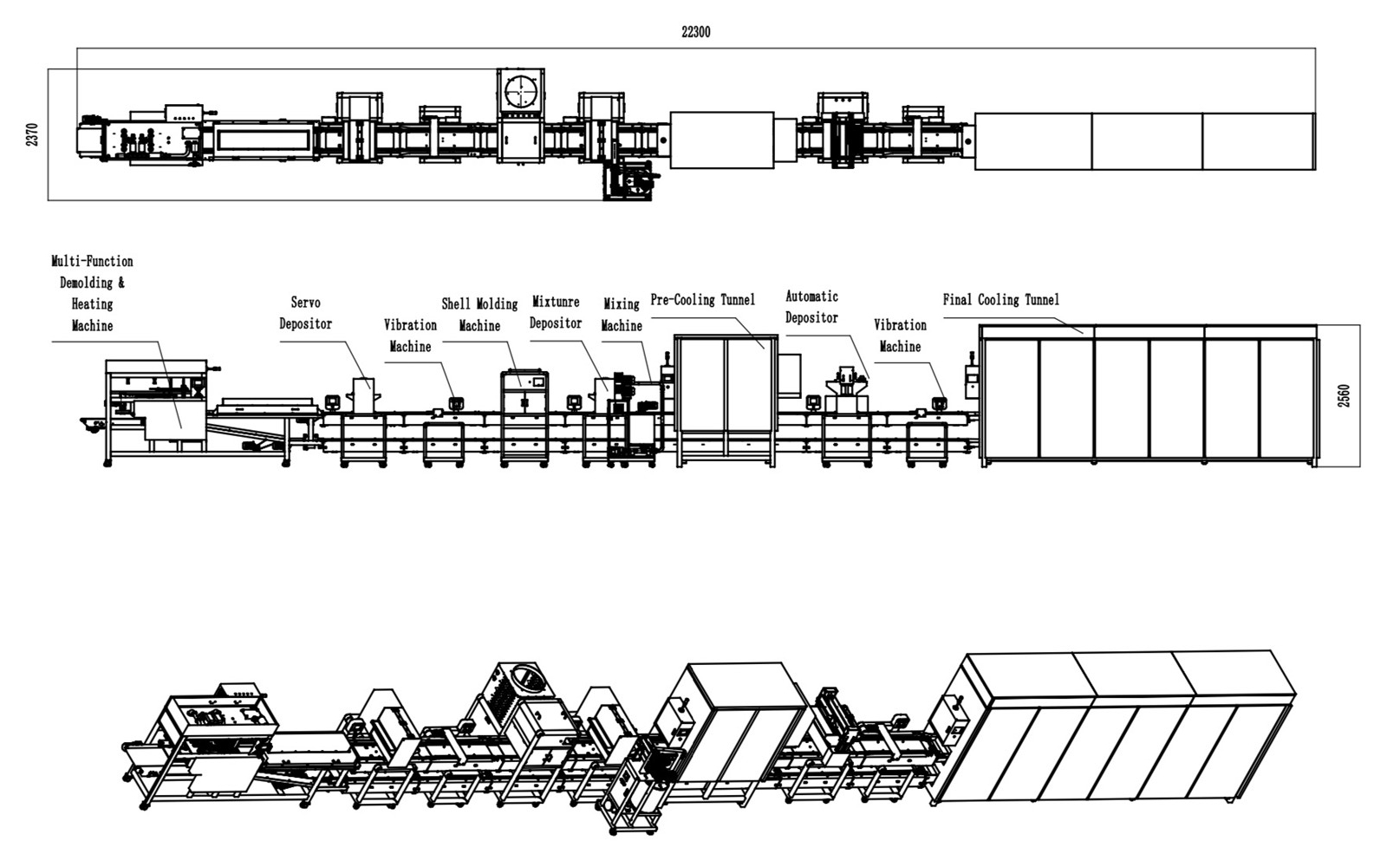

Let's take a look at the machines included in this line and the characteristics of these equipment?

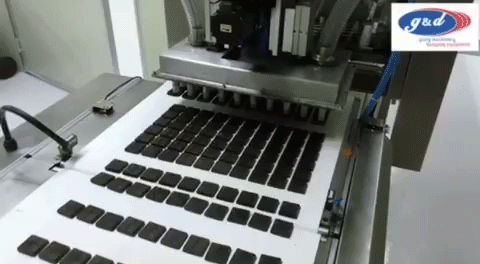

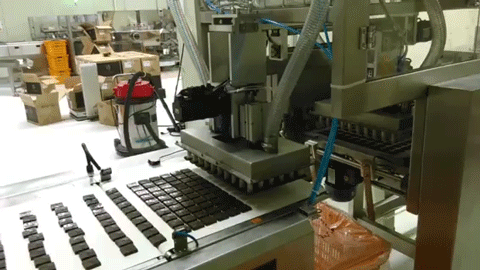

Multi-function demolding machine

■ Multi-function: vacuum demolding, mold knocking and automatic packing to meet the   demolding needs of different products of users.

■ Fast demolding speed: max 14mold/m, bigger capacity is also available.

■ Heating machine: mold heating, accurate temperature controlling, sufficient hot air circulation, the parameter setting is flexible and convenient.

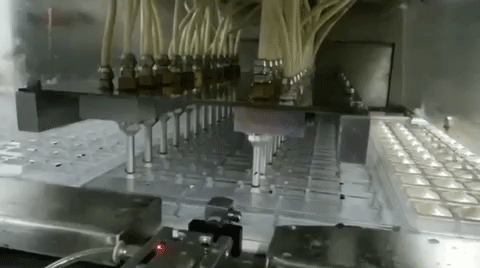

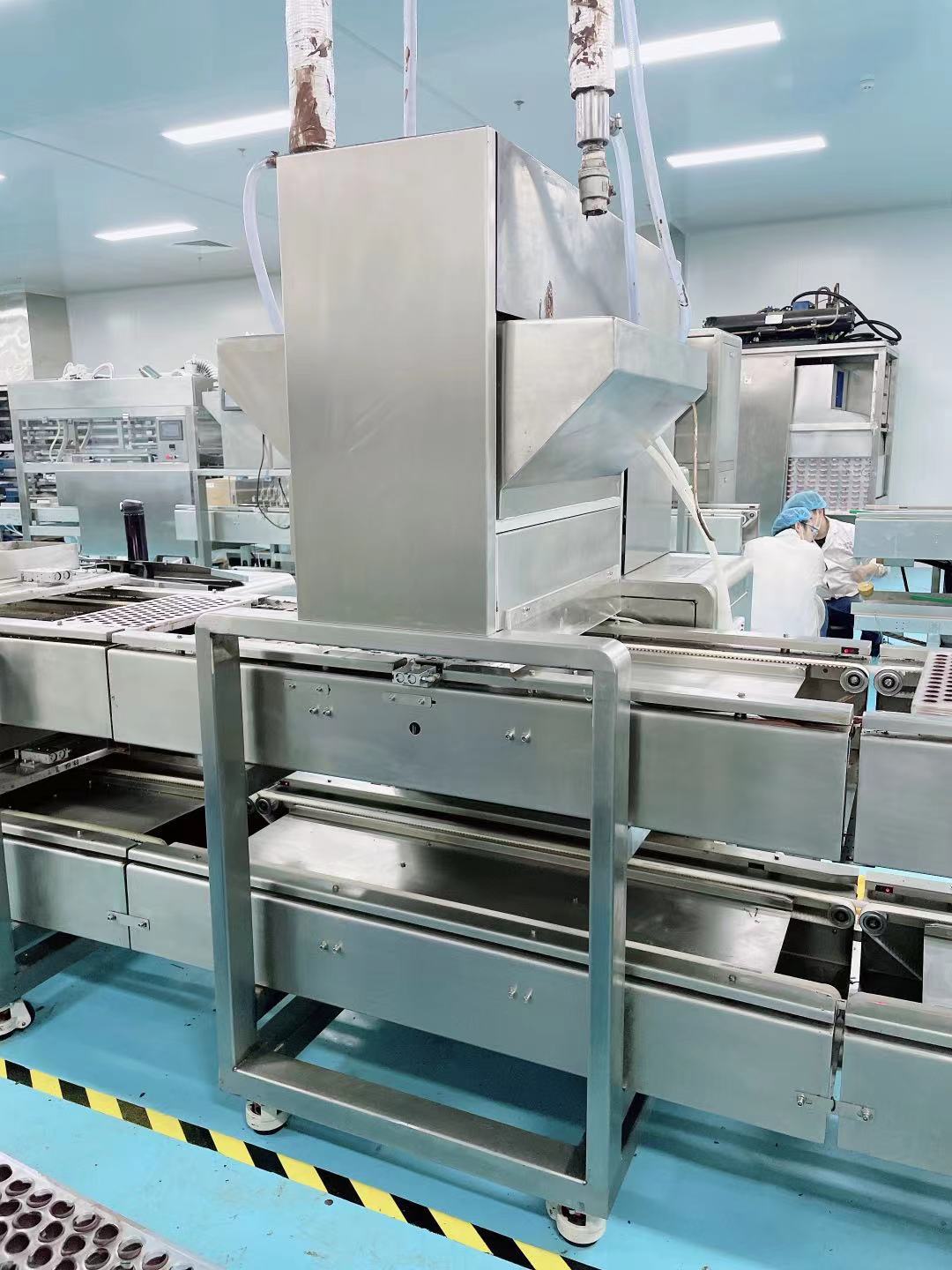

Multi-function CNC depositor

■ Compared with 200kg heavy depositor moving parts, the weight of the light CNC depositor moving parts is less than 10 Kg, and the running is light and fast, the energy consumption and using cost are greatly reduced, and the reliability is greatly improved.

■ The standard depositor is equipped with 48 sets pistons, depositing accuracy can be up to ±0.1g. Bigger capacity is also available.

■ Depositing speed is normally 6-12 mold/min, it varies according to the mold layout and depositing time to finish 1 mold.

Vibration machine

■ Vibration and swing, two ways for choice to balance material according to different material.

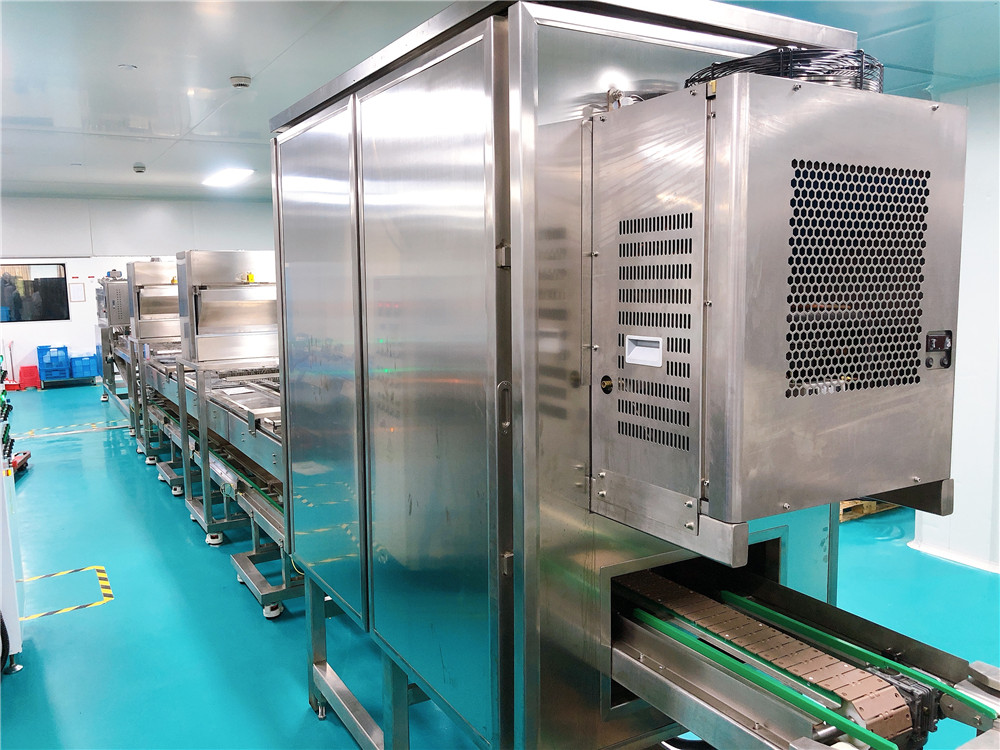

Pre cooling tunnel

■ Using lifting technology, customer can choose pre-cooling or pass it directly if the product do not need pre-cooling；

■ All stainless steel material, 48 molds can be accommodated, pre-cooling temperature, operating speed and other parameters can be set as request.

■ Refrigeration integrated machine, when recombining the production line, no need to connect another pipeline, the machine can be re-positioned flexibly.

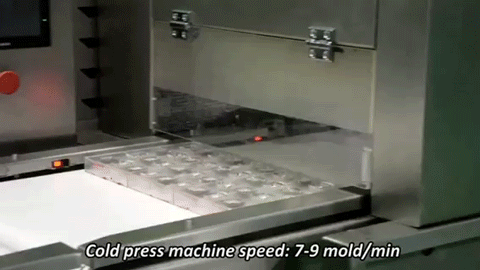

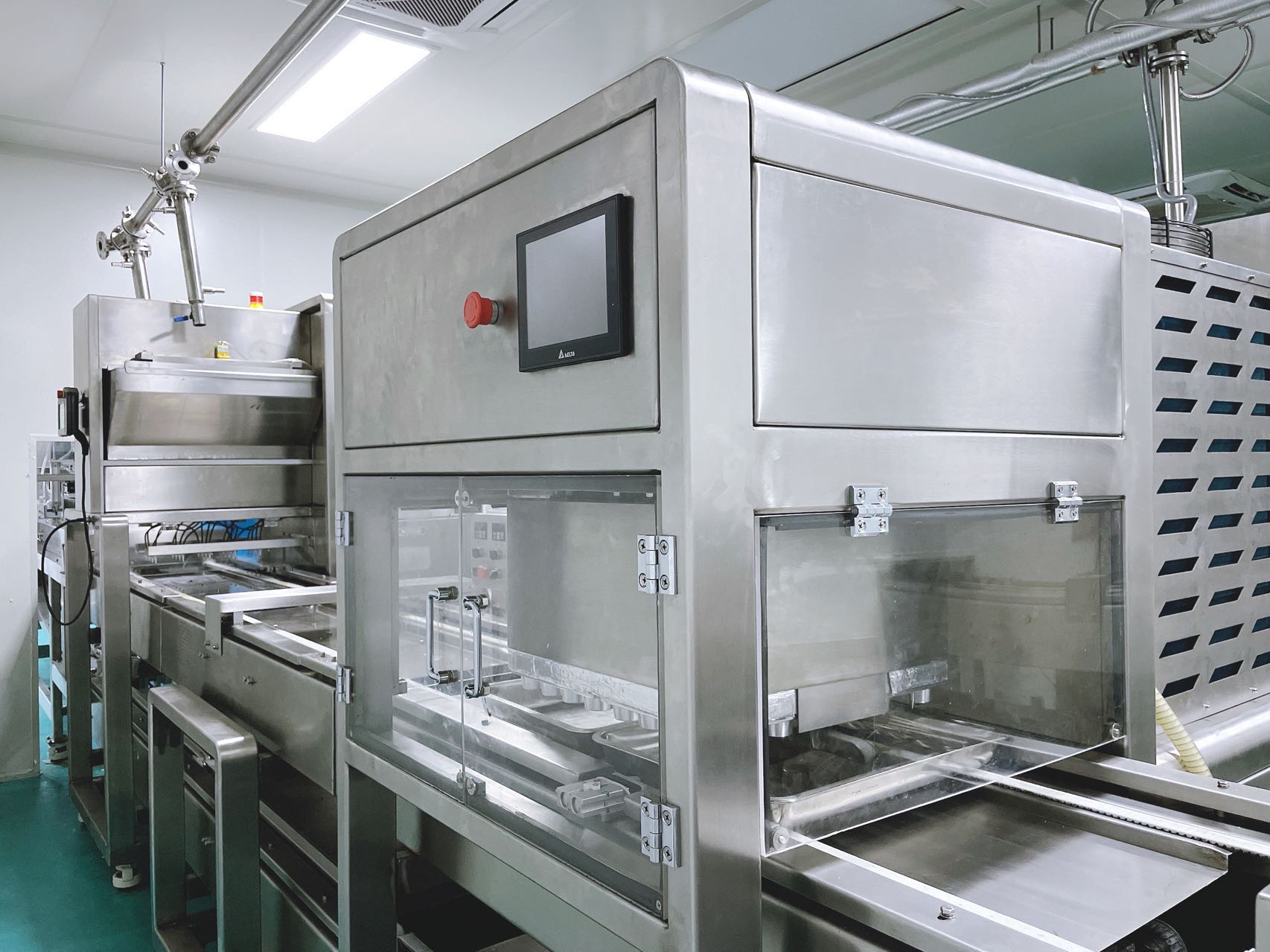

Cold press machine

■ The reliable and uniform cold air transferring makes the Shell molding work more efficiently.

■ The special structure design reduce requirements of Cold press for environmental humidity.

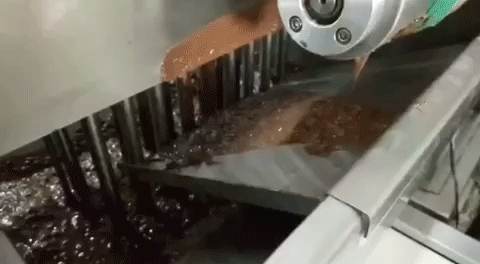

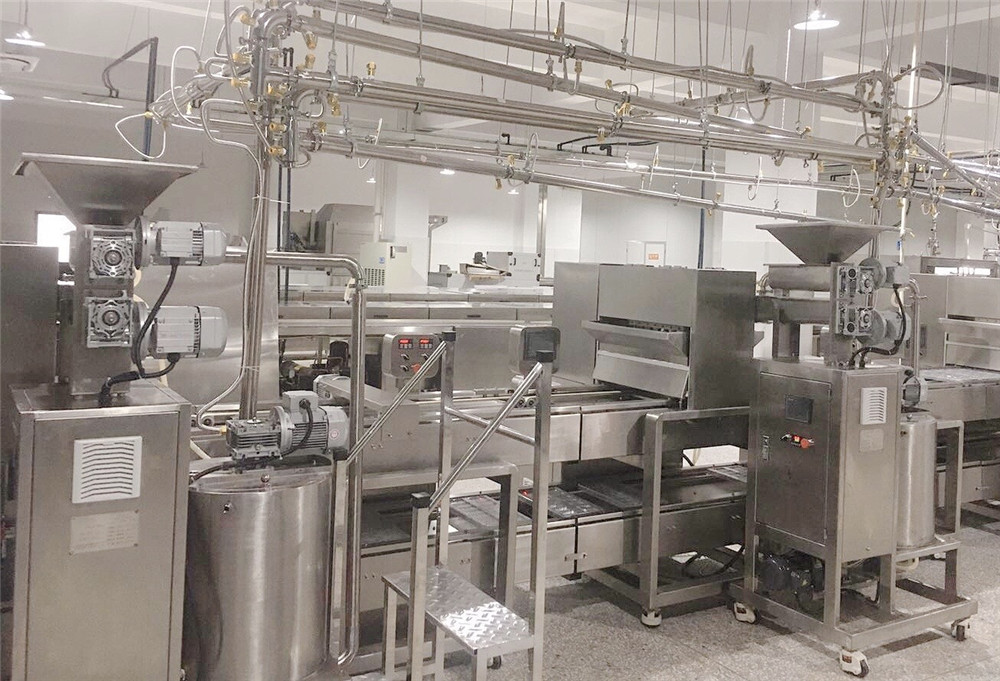

Mixture depositor & Mixture System

■ Mixture depositor can adapt to 8 mm-10mm of large particle, mixing ratio is very good.

■ The mixing uniformity is good, the depositing error is small.

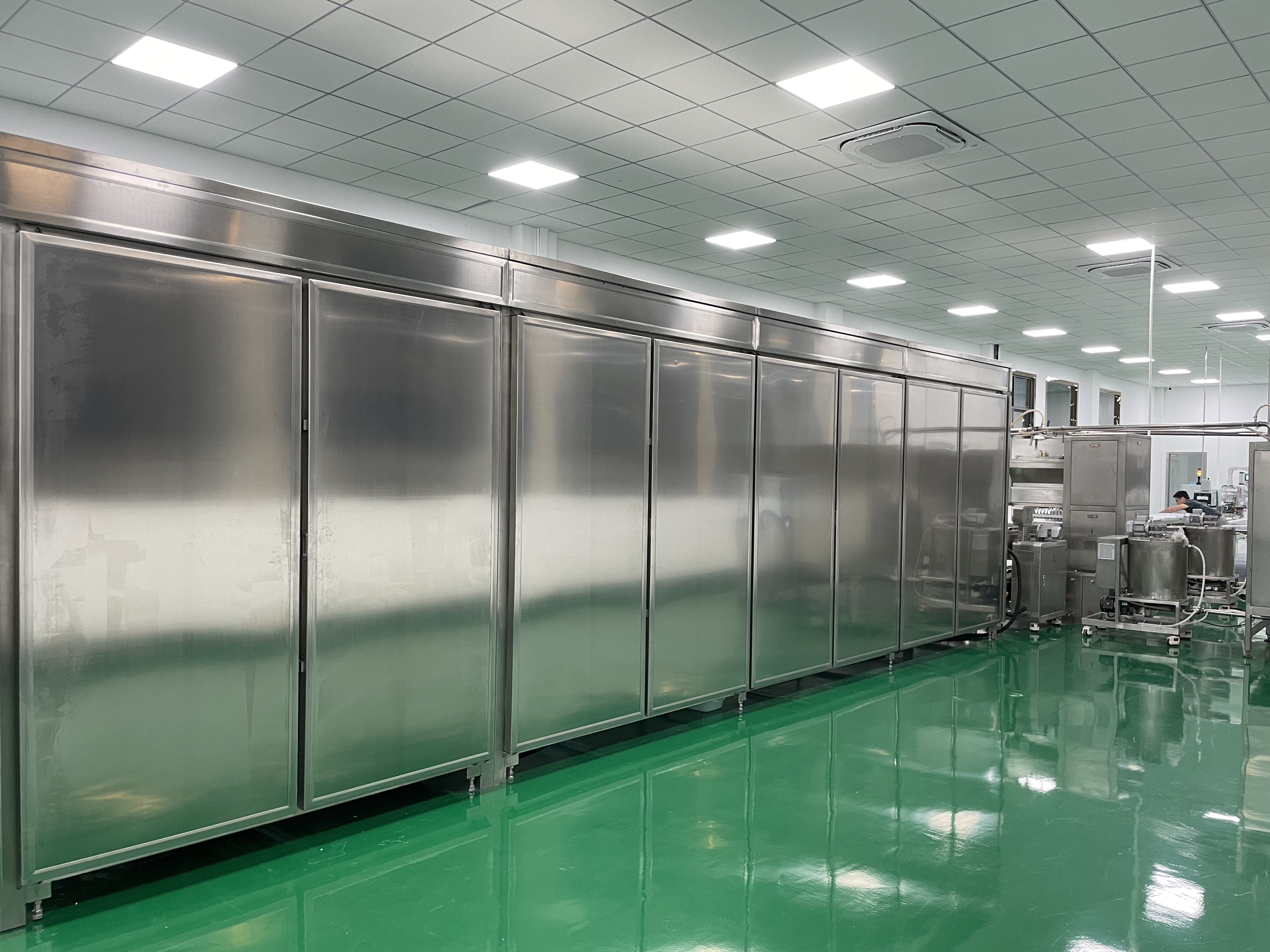

Energy saving final cooling tunnel

■ Lifting structure and advance design concept, this machine is suitable for different height product.

■ Good humidity controlling enable it is good for biscuit chocolate making.

■ High efficiency, max 14 mold/min, excellent refrigeration and energy saving.

You must want to know what else products can be made on this line?

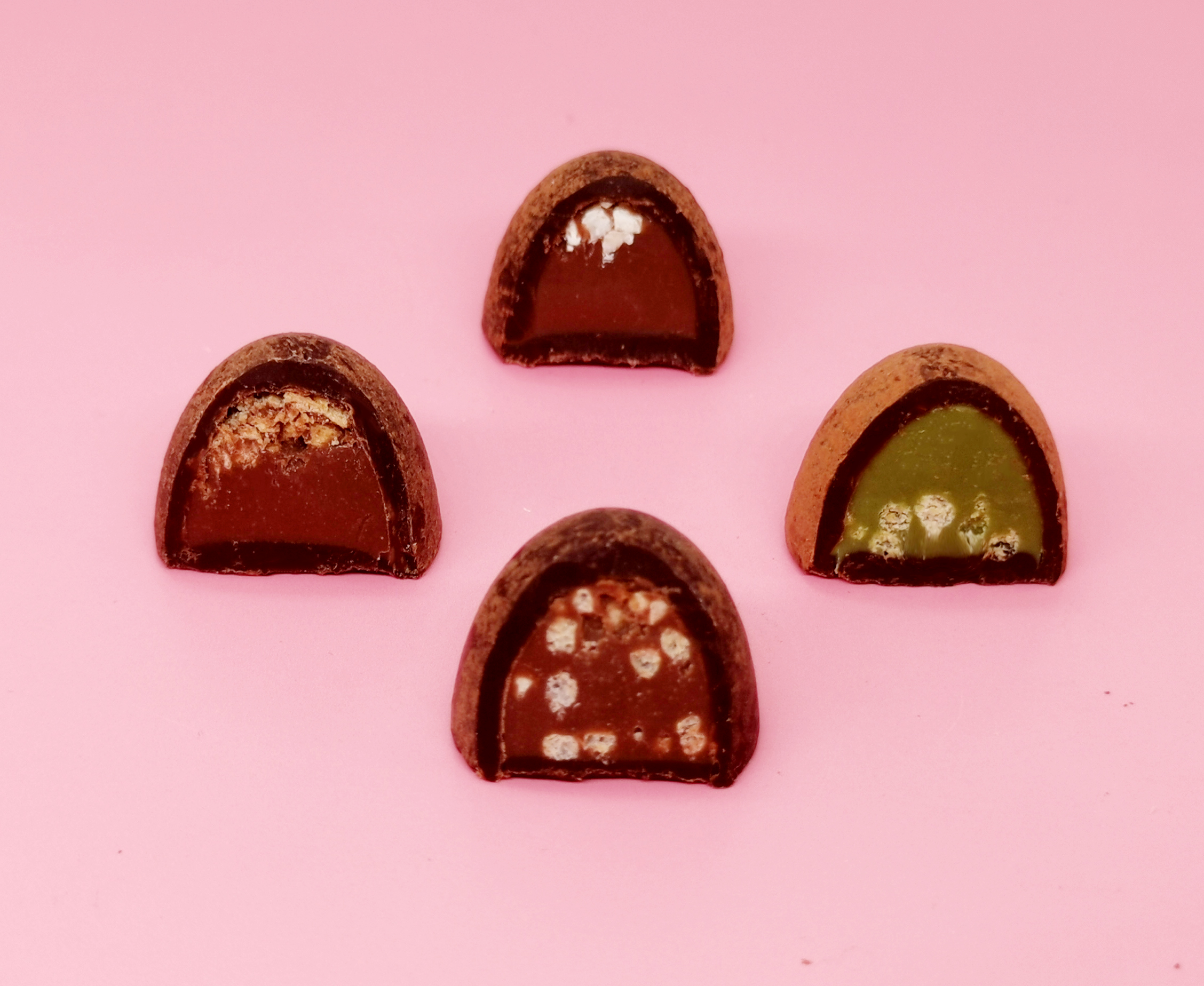

One shot, mixture, one shot & mixture chocolate can be made by this line only need change another depositing plate and demolding plate.

Our modular technology and innovation ability will keep chocolate line advanced for many years.

For more information about the production line, or you want to visit the production process on line,please contact our export manager.
