Decoration Chocolate Multi-function Manufacturing Lines

Chocolate Decoration Production Line & TRAYING Machine (MF-DE)

Chocolate Decoration Production Line & TRAYING Machine (MF-DE)
Chocolate Decoration Production Line & TRAYING Machine (MF-DE)

Description

Reviews(3)

☑ Decoration Chocolate Machine & Decorating Chocolate Making Equipment will bring more products and market share for clients.
Moreover, it is also decoration chocolate production line or  chocolate decorating making machine which can be expanded freely to meet users' chocolate innovation needs in 20 years or more.

UPGRADING is one of the easiest way to innovate successfully.

Yes! The delicious taste of chocolate will make us all forget ourselves !!!

It is the largest confectionery chain in German: HUSSEL—Decoration Chocolate

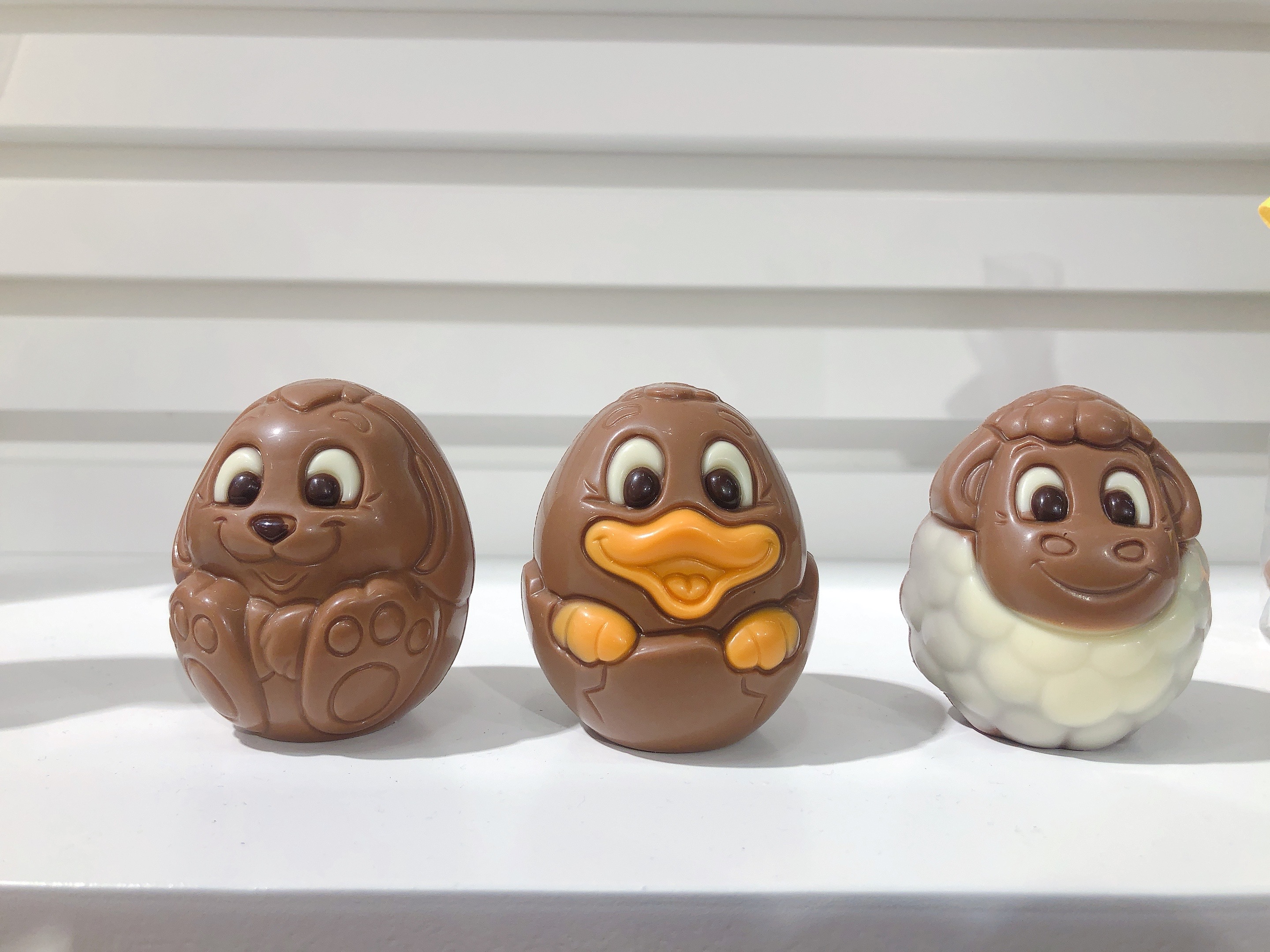

Many lovely Decoration chocolate at ISM

Our technology and creativity can upgrade the Decoration chocolate as following.

Combine with Mixture or One-shot technology.

Different size of color lump can be dressed on.

More colors and Picturesque shape of chocolate make it like a fondle admiringly artwork.

     Be very attractive to kids!


Product and technology features

■ Small color lump such as the eyes, nose, ears make the chocolate more vivid.

■ Richer shapes give chocolate more meaning and more consumption scenarios.

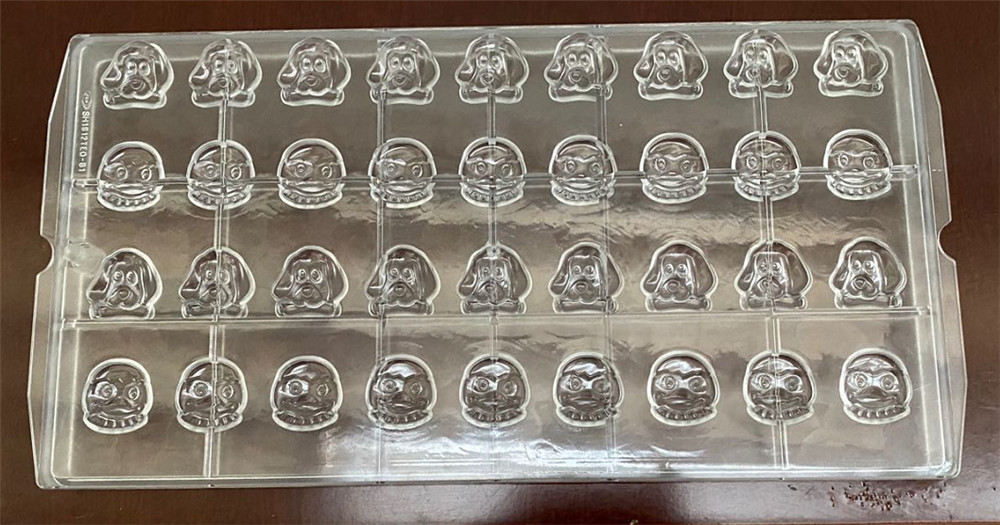

■ 1-3 different shapes can be made in one mold.

■ Our product design team provides customers with more styling and creativity service.

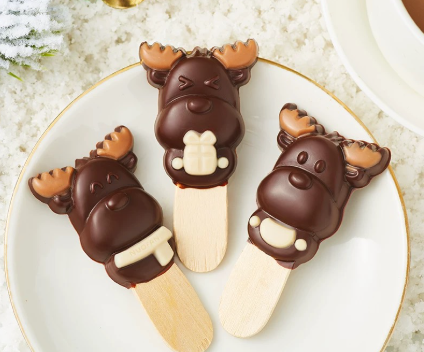

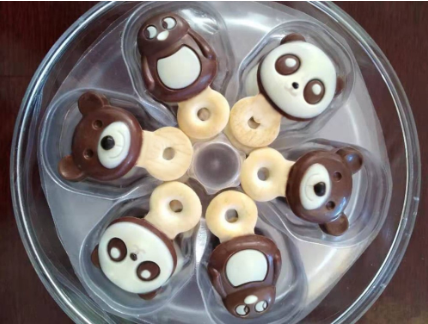

This lovely chocolate is produced on this similar line.

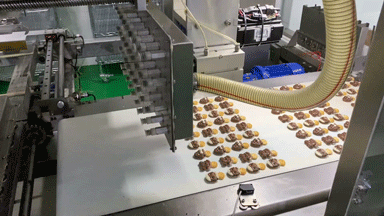

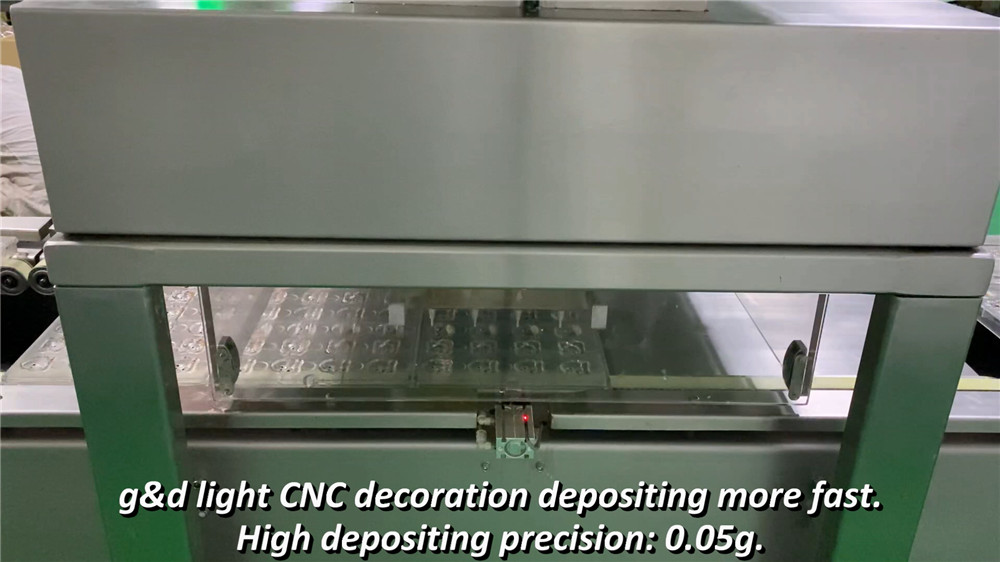

Decorating two colors by g&d Light CNC (Five-Axis Linkage) Chocolate Depositor

 One Decoration Depositor would dressing two colors or four colors once

Demoulding & Traying

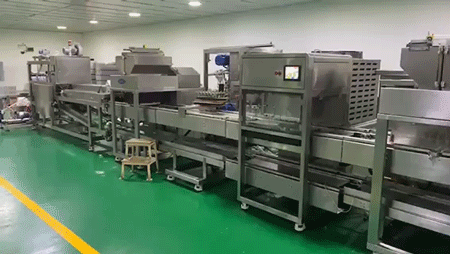

This Decoration chocolate production line looks some different, right?

Yes, it is a modular production line that combines extremely freely.

It can be flexibly combined according to the needs of the production process.

Our technical team is the originator and developer of this technology

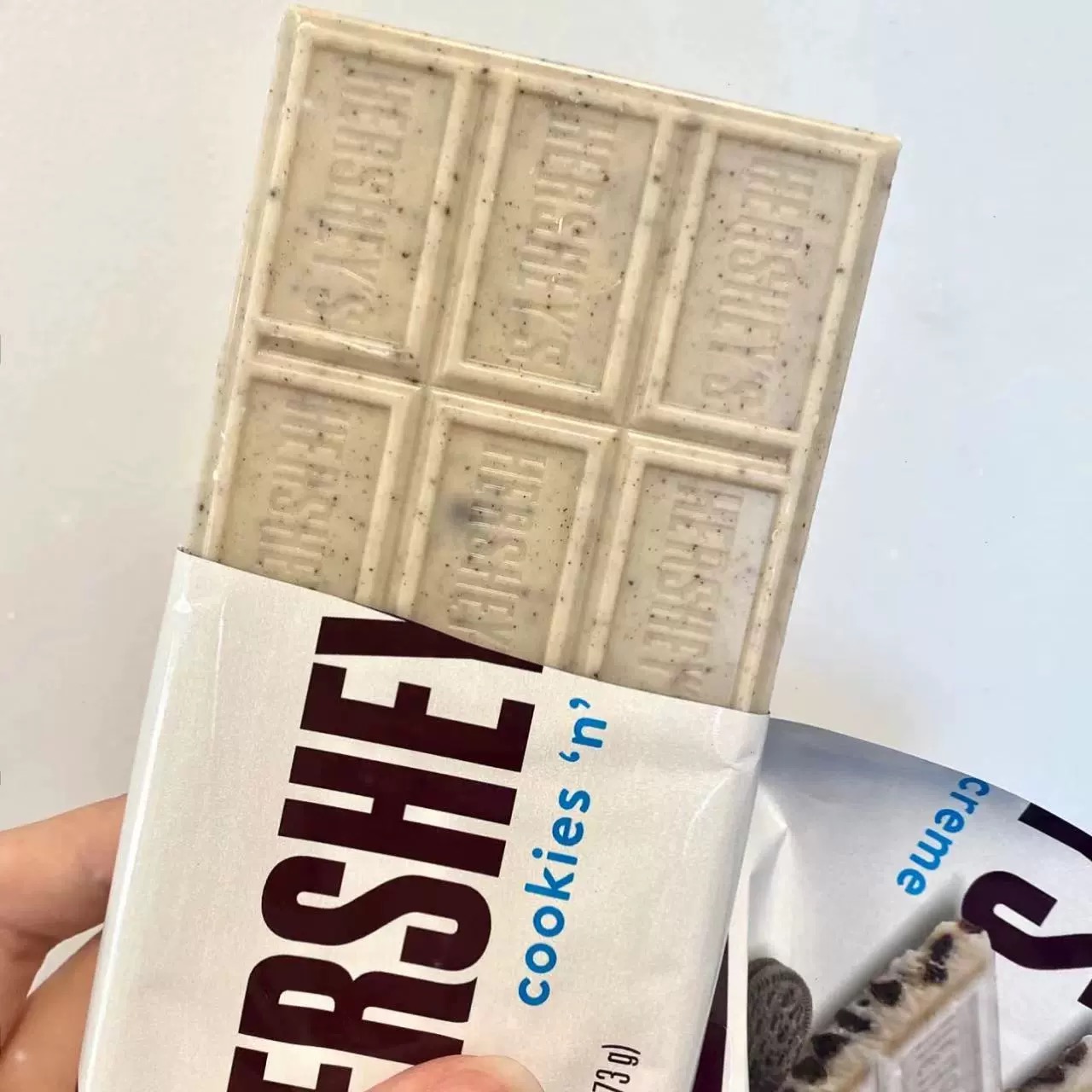

Similar products of Mars, Hershey's and Godiva have been produced by this series lines

Let's take a look at the special features of this production line

■ It is "Linear Modular Design". The magic of this design is that it enables this molding line very flexible and can almost make all the chocolate available today and in future.

■ The space occupied of production line is only 50% of the ring modular equipment, the same workshop will create more capacity for users.

■ The production line adopts CNC decoration technology, and the energy consumption is only about 65% of the heavy CNC production line, which saves considerable use cost for users.

■ The flexible design enables the production line to simply change different types of molds and easy to change the program. The Decoration depositor would store over 100 different styling programs inside.

■ The rich functional modules support the future development of users and enables them to flexibly expand the required functions and capacity.

■ Advanced design and mature technology makes installation and debugging very easy, users can easily handle equipment installation and production;

■ There are 2 types production line: 5-6 molds/min and 10-12 molds/min (according different colors and shapes, 36pcs in a mold,6g)

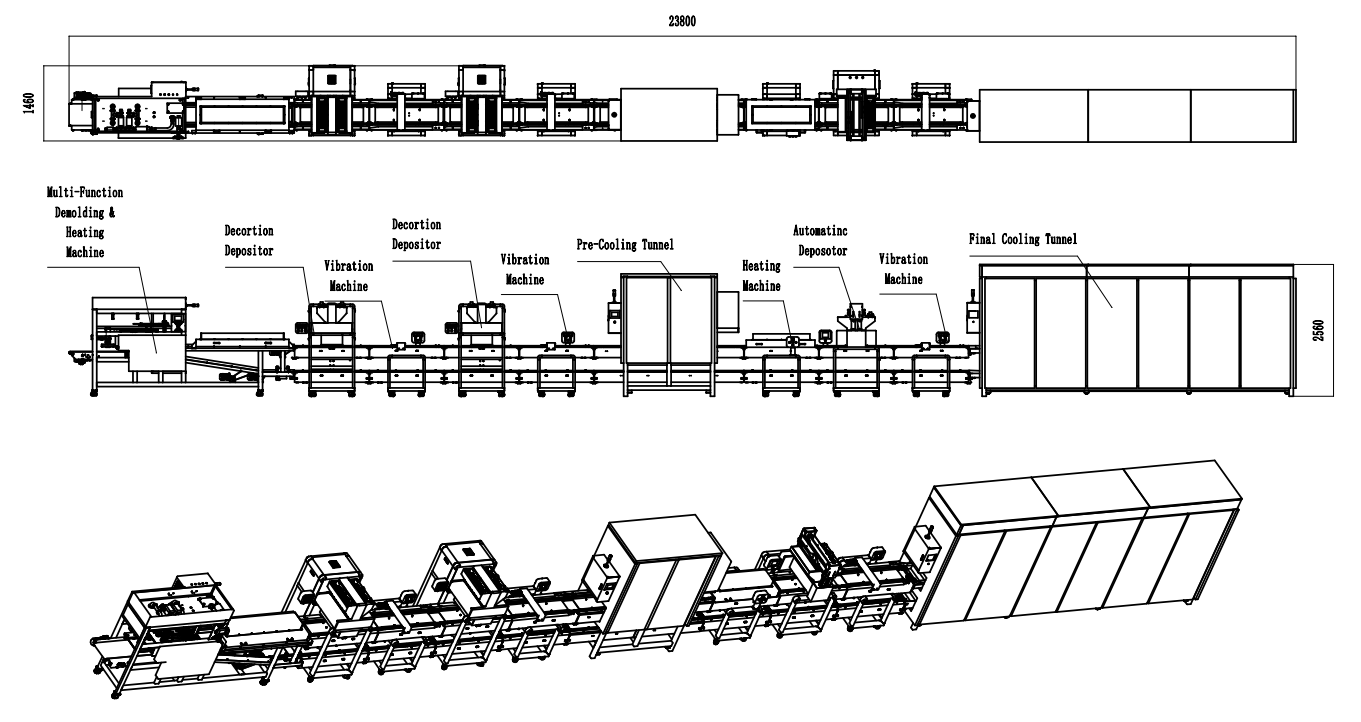

Let's take a look at what equipment is made up of the production line and what are the characteristics of these equipment?

Multi-function Demoulding Machine

■ Multi-function: vacuum demoulding, mold tapping and automatic packing to meet the demoulding needs of different products of users.

■ Fast demoulding speed: max 14mold/m, bigger capacity is also available.

■ Heating machine: mold heating, accurate temperature controlling, sufficient hot air circulation, the parameter setting is flexible and convenient.

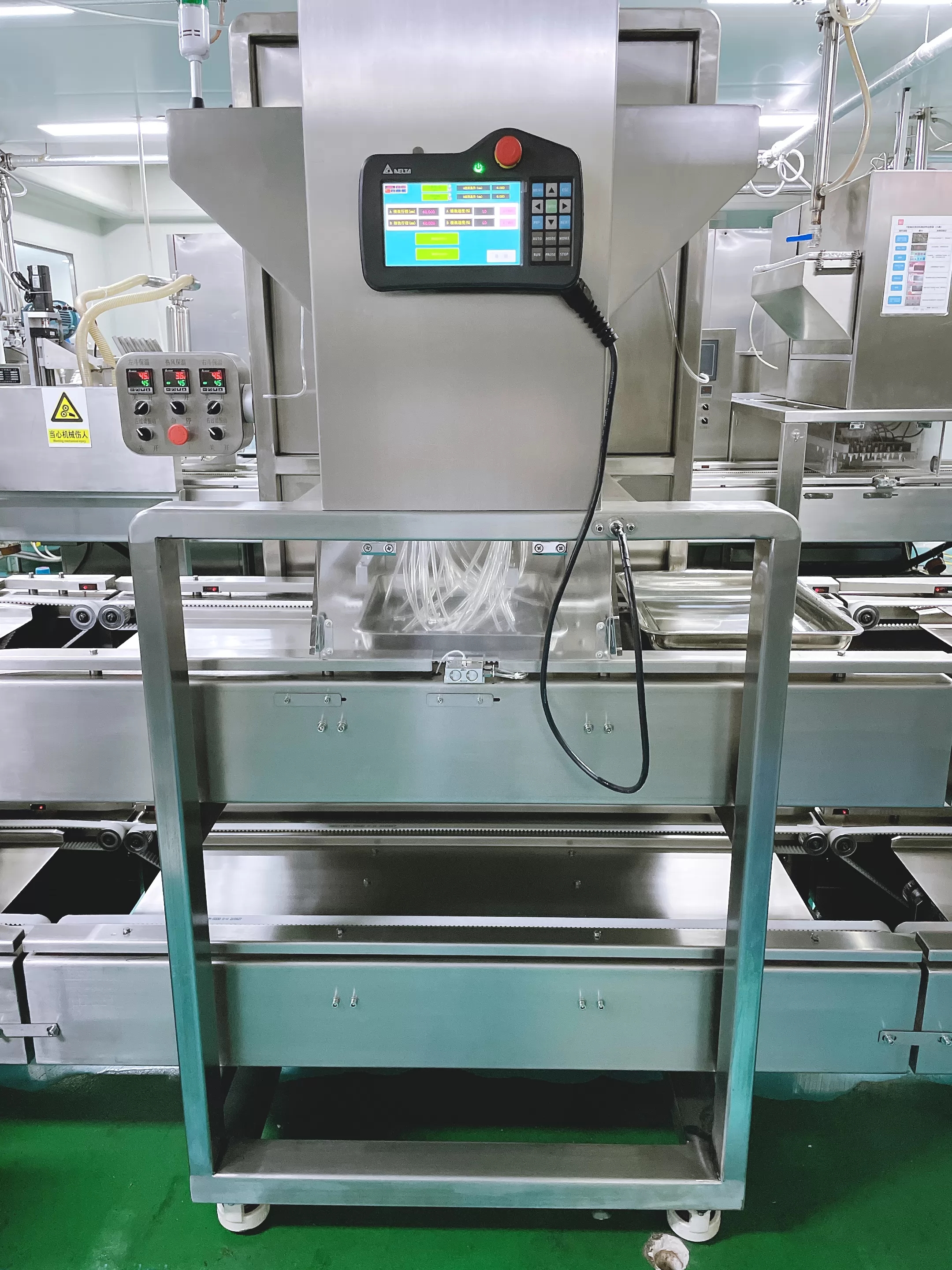

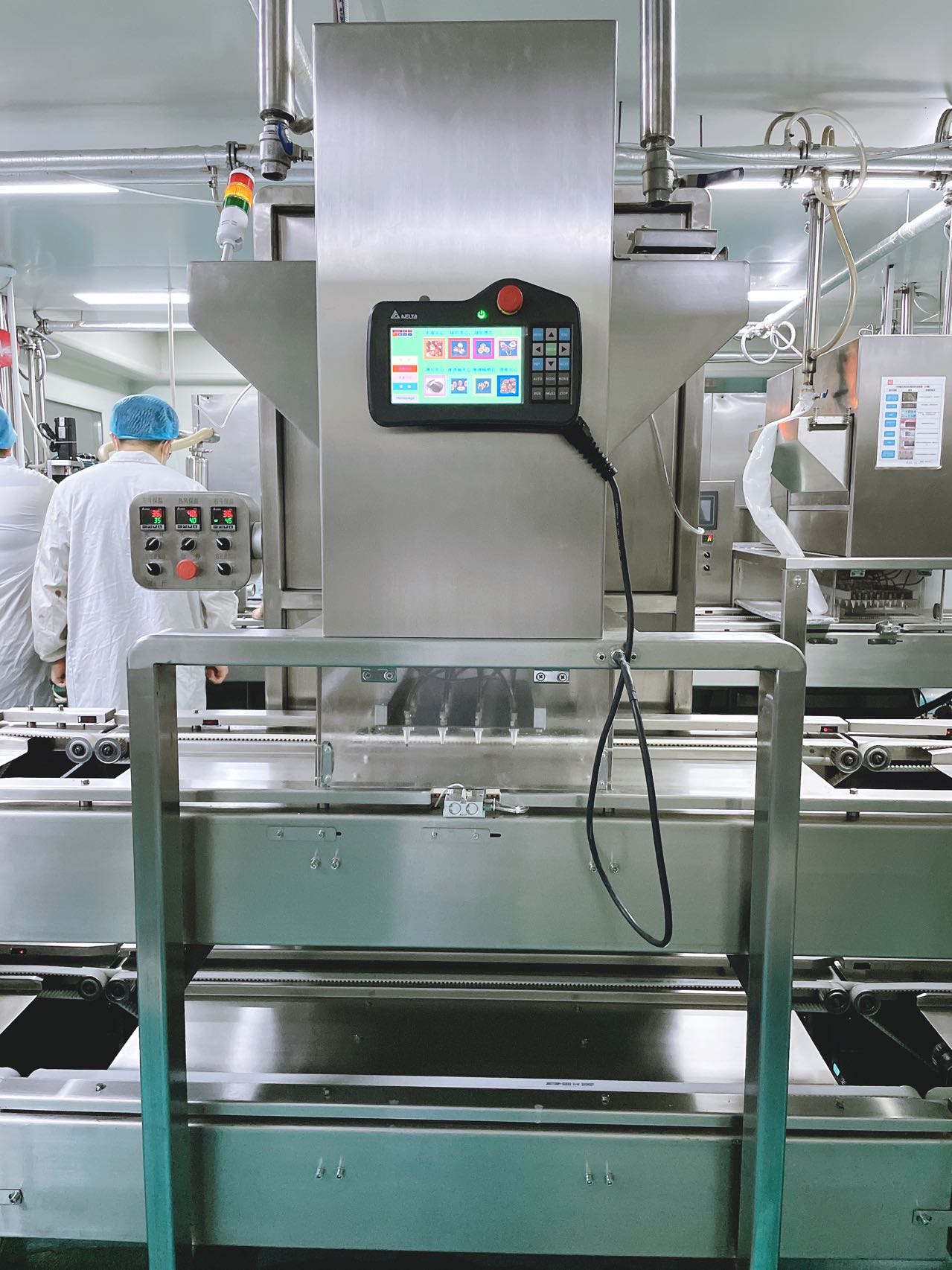

Multi-function Decoration Depositor

■ Compared with 200kg heavy depositor moving parts, the weight of the light CNC depositor moving parts is less than 10 Kg, and the running is light and fast, the energy consumption and use cost are greatly reduced, and the reliability is greatly improved.

■ The standard depositor is equipped with 48 sets pistons, depositing accuracy can be up to ±0.1g. Bigger capacity is also available.

■ Decoration speed is normally 6-12 mold/min, it varies according to the different shapes and decoration colors.

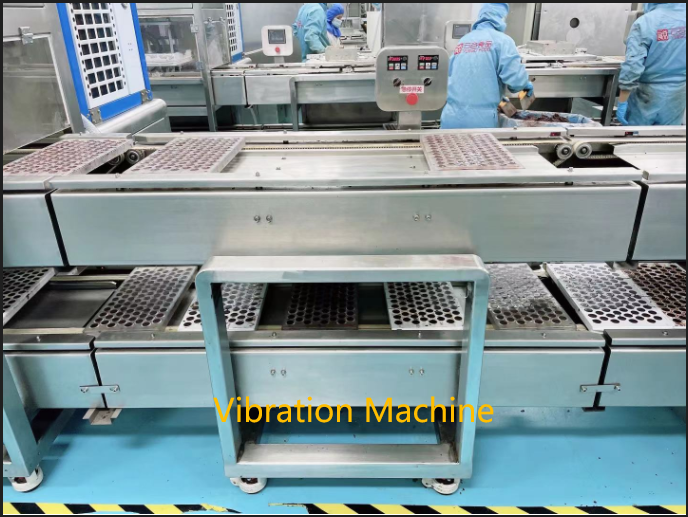

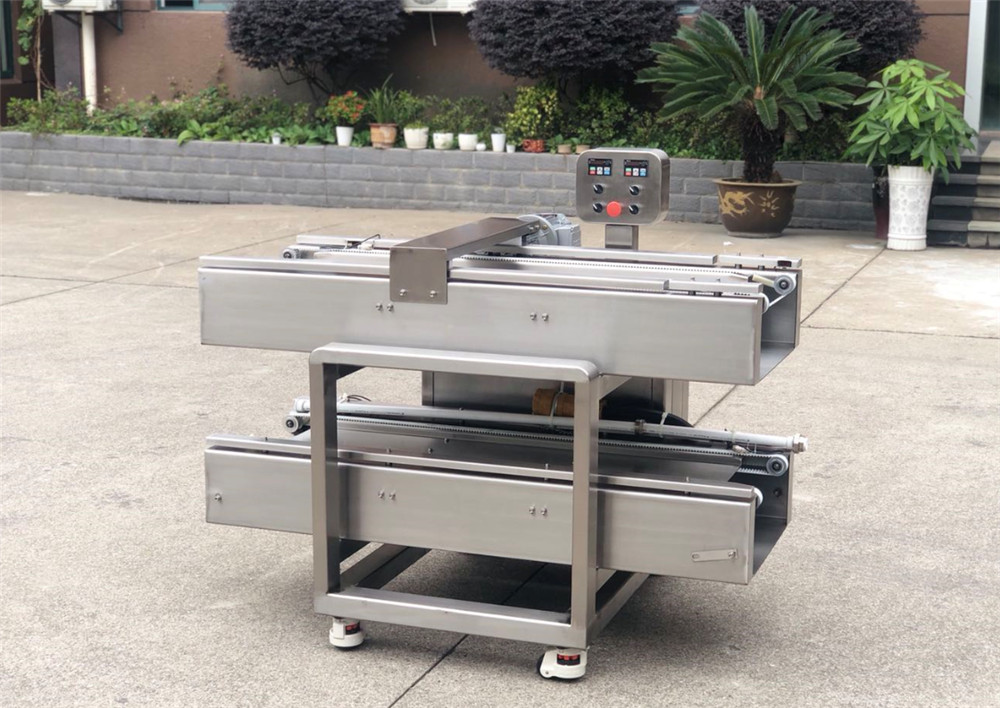

Vibration Machine

■ Vibration and swing, two ways for choice to balance material according to different material.

Pre-Cooling Tunnel

■ Using lifting technology, customer can choose pre-cooling or pass it directly if the product do not need pre-cooling;

■ All stainless-steel material, 48 molds can be accommodated, pre-cooling temperature, operating speed and other parameters can be set as request.

■ Refrigeration integrated machine, when recombining the production line, no need to connect another pipeline, the machine can be re-positioned flexibly.

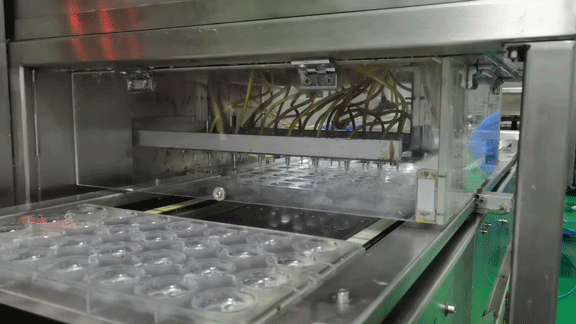

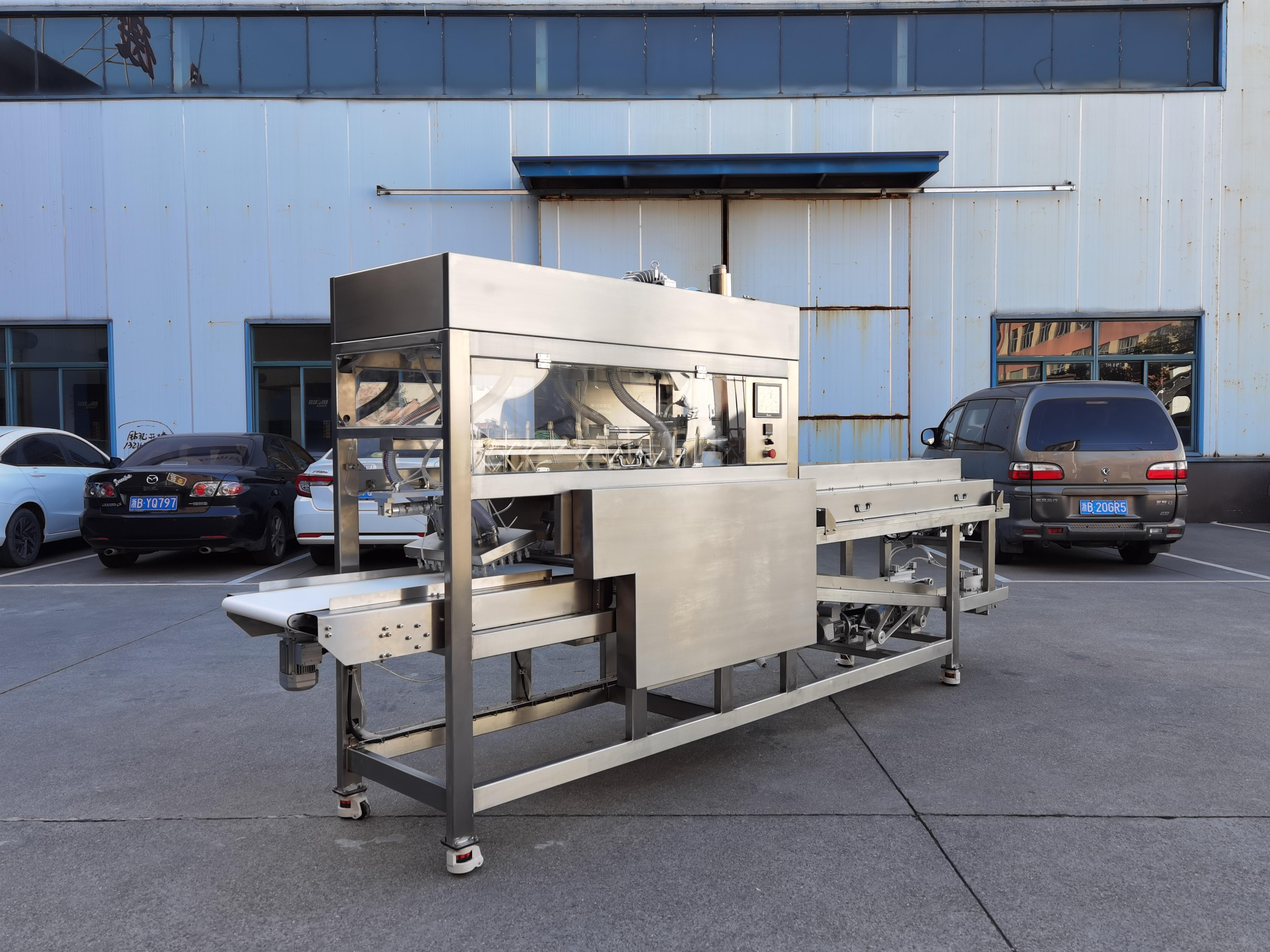

Automatic Depositor to Produce the Bottom Chocolate

■ Quick depositing of the bottom chocolate

■ All controlled by the Cylinders

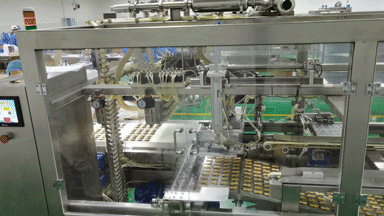

■ Biscuit feeding success rate is high and speed is fast,6-8 mold/min, we can also provide bigger capacity solution.

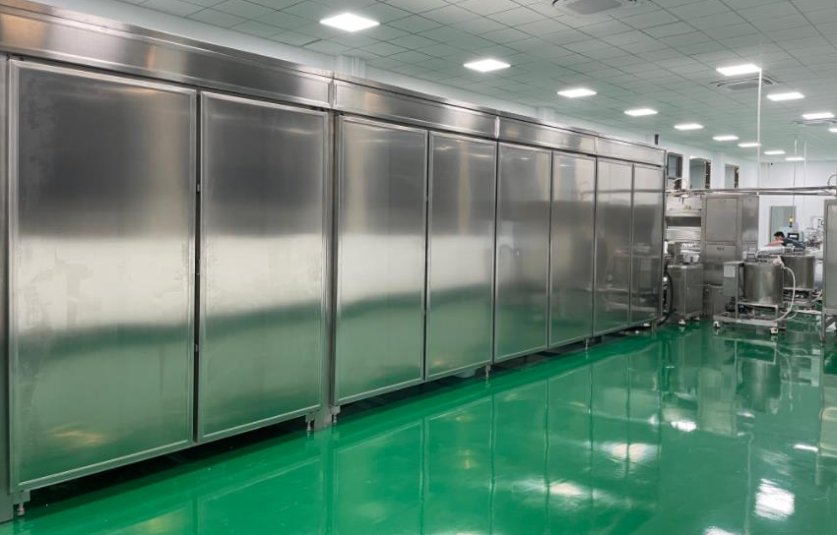

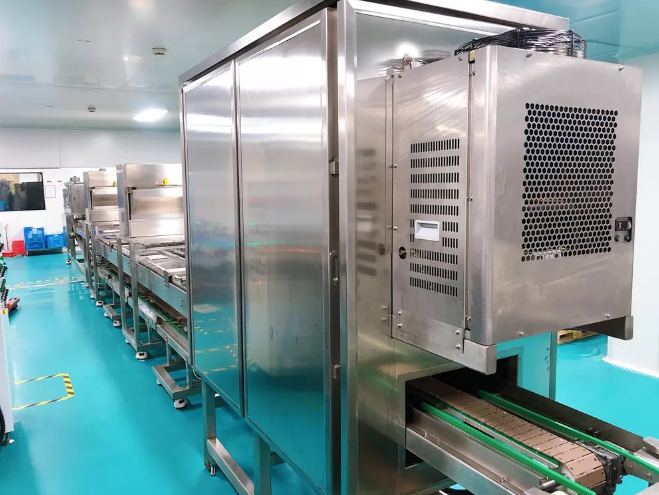

Energy Saving Final Cooling Tunnel

■ Lifting structure and advance design concept, this machine is suitable for different height product.

■ Good humidity controlling enable it is good for biscuit chocolate making.

■ High efficiency, max 14 mold/min, excellent refrigeration and energy saving.

No. Capacity
(mold/min)
Size(m)      Power
(kW)
Products quantity(pcs)/mold Shapes(pcs)/mold
1 5-6 23.8X1.46X2.56    41.3 36 1-3
2 10-12 32.7X1.46X2.56    50.9 36 1-3

You must want to know what else products can be made on this line?

This flexible combination tech would make sure the chocolate production line will never be obsolete through adding more functionally Module machines.

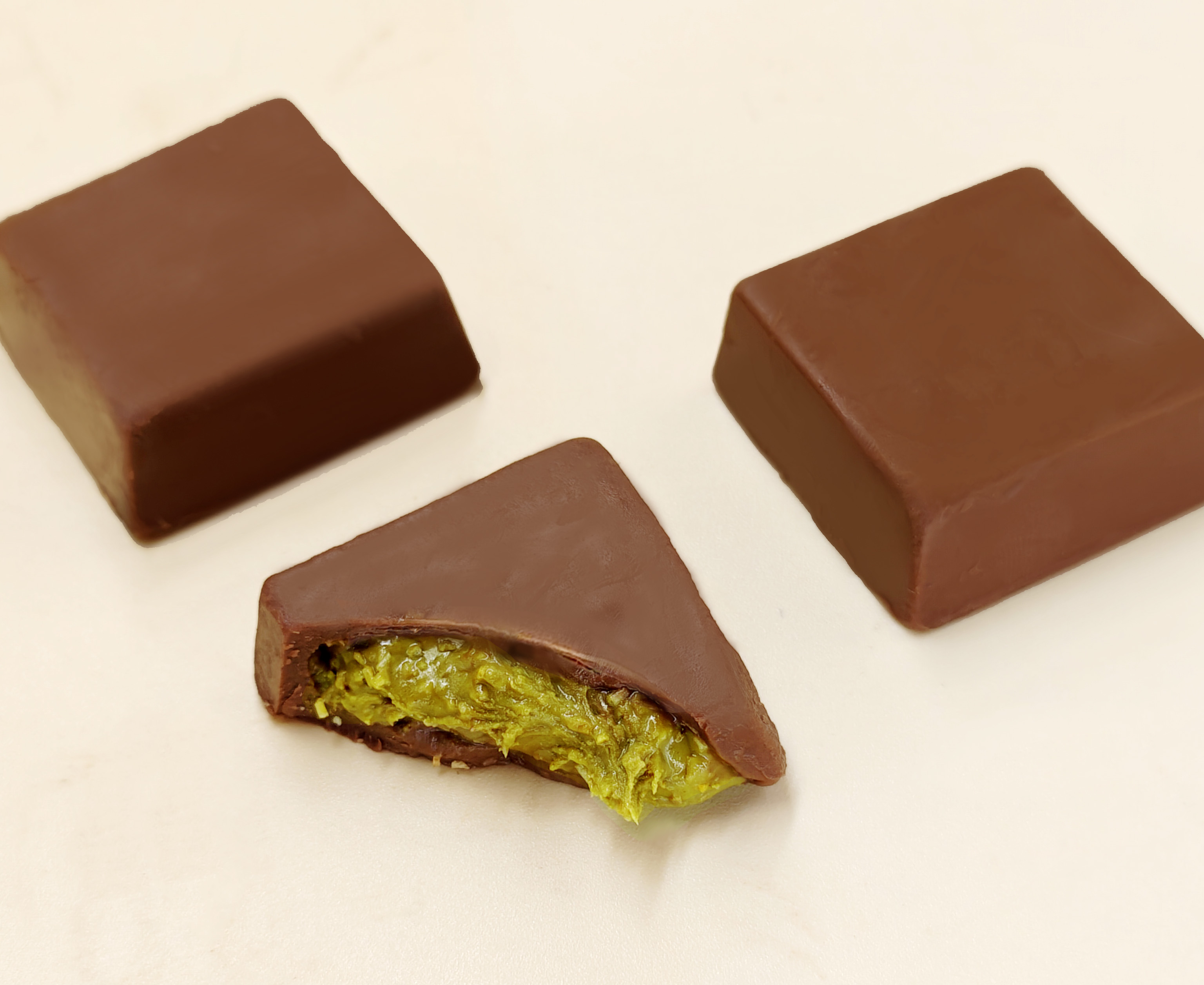

One shot, decoration, one shot & decoration chocolate can be made by this line only need change another depositing plate and demolding part.

Decoration & one shot, 2 sets decoration depositors are needed to be equipped for this line

We also have more multi-functional modular machines to help users realize the desired product.

These machines can easily enter the existing production line;

Yes, this production line will be your product innovation platform,

And our technology and innovation ability will keep the production line advanced;

For more information about the production line, or you want to visit the production process on line.

 Please contact our export manager.

Win-win the future with us !
